PRODUCT CODE
059-D316-000
£5,760.00 £4,800.00

Dual-detection detector for benzene or over 200 VOCs.  Use RAE-SEP benzene tubes when the unit is in benzene mode to gain highly specific readings.  Suitable for applications including entry pre-screening during refinery and plant maintenance to hazardous material response, marine spill, response and refinery down-stream monitoring.

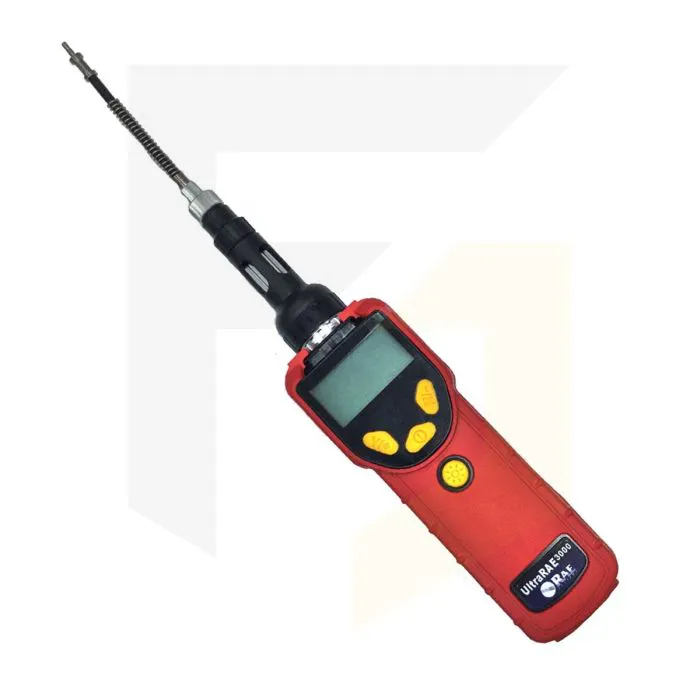

UltraRAE 3000 (Model PGM-7360) Photoionisation (PID) Detector

UltraRAE 3000+ (PGM-7360) Photoionisation (PID) Detector with 9.8 eV lamp Non-Wireless

The UltraRAE 3000+ from RAE Systems is a photoionisation (PID) detector, suitable for the detection of hazardous and volatile organic compounds (VOCs).  The PID is capable of detecting more than 200 VOCs, but also features a benzene-specific mode and is Non-Wireless.

This makes the UltraRAE 3000 ideal for pre-sceening applications in refinery and plant maintenance, hazardous material response, marine spill reponse and refinery down-stream monitoring.  The detector has an extended range of 0.05 to 10,000ppm in VOC mode and 50 ppb to 200ppm in its benzene-specific mode.

The UltraRAE 3000 comes with a 9.8 eV lamp as standard, but other lamps are available.  The sensor response extremely quickly and can produce highly specific readings when using RAE-SEP benzene tubes.



Key Features
  • Easy to read, graphical display
  • Multi-language support
  • Maintainable with easy access to sensors, lamp and battery without tools
  • Specification method reduces risk of false alarms
  • Alarm system - flashing light, 95dB buzzer
  • IP 65 rated (unit running)
  • Datalogging - 6 months at one-minute interval
Specifications

What’s Included?

• UltraRAE 3000+ Monitor, Model PGM-7360 with soft leather carrying case
• Datalogging with ProRAE Studio II Package for Windows ® XP, Windows® Vista, or Windows® 7
• Travel Charger
• RAE UV lamp and RAE-Sep Tubes
• Flex-I-Probe
• External filter
• Red rubber boot
• Alkaline battery adapter
• Lamp-cleaning kit
• Tool kit
• Lithium-ion (Li-Ion) battery with universal AC/DC charger and international plug kit
• Operation CD-ROM
• Operation & Maintenance manual



Sensor

Photoionization sensor with standard 9.8 eV or 11.7 eV lamp

Range

VOCs – 0 to 99.99 ppm
              100 to 999.9 ppm
             1000 to 9999 ppm

Benzene – 0 to 200 ppm
Butadiene – 0 to 200 ppm

Resolution

VOCs – 0.05 ppm
              0.1 ppm
             1 ppm

Benzene – 0.05 ppm
Butadiene – 0.05 ppm

Response Time (T90)

< 3 s (for VOCs)

< 60 s (for Benzene and Butadiene)

Dimensions
(W x H x D)

10” x 3.0” x 2.5”
(25.5 x 7.6 x 6.4 cm)

Weight

26 oz (738g)

Temperature

-4° to 122°F (-20° to 50°C)

Humidity

0-95%  RH (non-condensing)

Battery

- Alkaline battery adapter

- Rechargeable external field-replaceable lithium-ion battery pack if specified

Operating Hours

16 hours of operation

Alarms

  • 95dB at 12” (30cm) buzzer and flashing red LED to indicate exceeded preset limits
  • High: 3 beeps and flashes per second
  • Low: 2 beeps and flashes per second
  • STEL & TWA: 1 beep and flash per second
  • Alarms latching with manual override or automatic reset
  • Additional diagnostics alarm and display message for low battery and pump stall

IP Rating

IP65 unit running

Calibration

Two-point  or three-point calibration for zero and span

Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates

Sampling Pump

Internal, integrated flow rate at 400 cc/mn
Sample from 100’ (30m) horizontally and vertically

Low Flow Alarm

Auto shut-off pump at low-flow condition

Communication

Download data and upload instrument set-up from PC through charging cradle
Wireless data transmission through built-in Bluetooth

Hazardous Area Approval

US and Canada: UL, cUL, Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D

Europe: ATEX Ex II 2G EEx ia IIC T4
IECEx: CSA 10.0005 Ex ia IIC/IIB GbT4

Warranty

3 years for 10.6 ev lamp, 1 year for 9.8 eV lamp, pump, battery, sensor and instrument
