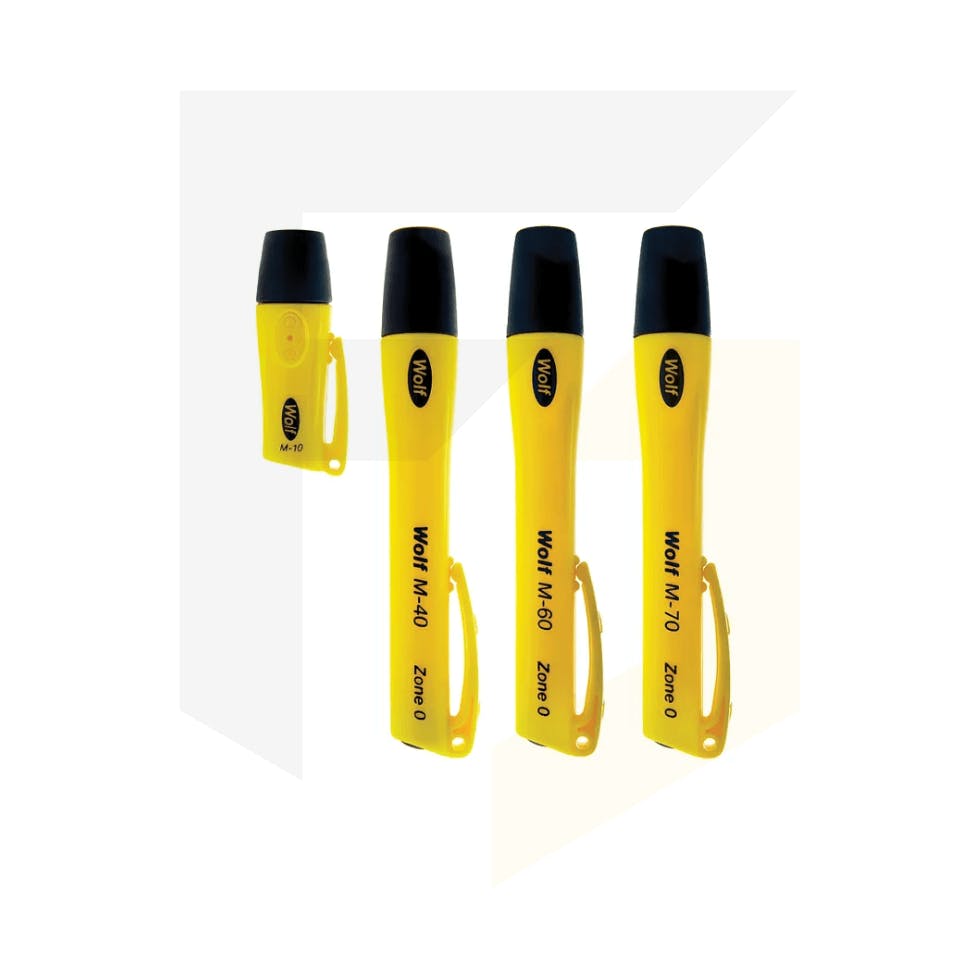

Wolf Mini & Micro ATEX Torches2>
Experience Unmatched Durability and Brightness with Wolf Mini & Micro ATEX Torches
Designed for professionals who demand reliability and compactness, the Wolf Mini & Micro ATEX Torches are your go-to safety tools. These torches are engineered to fit seamlessly into your pocket, making them the perfect companion for on-the-go tasks. With cutting-edge LED technology, these torches deliver an exceptional light output. The M-70 Mini torch, in particular, shines brightly with up to 107 lumens—all powered by just 2 AAA batteries.
Safety is non-negotiable, so these torches come with ATEX, IECEx, and UKEX certifications. These certifications ensure their safe operation in hazardous environments prone to explosive gases, vapours, mists, or dust. Suitable for a T4 or T5 temperature class, each model meets the rigorous standards of Group I for mining applications. Trust in the Wolf Mini & Micro ATEX Torches to light your way through the darkest and most challenging conditions.
The Wolf M-70 Mini LED torches are certified as Category 1 equipment, making them suitable for use in the most demanding environments, including Gas Zones 0, 1, and 2 and Dust Zones 20, 21, and 22. The Micro LED Torch M-10 and the Mini torches M-40 & M-60 are also certified for use in Gas Zones 0, 1, and 2, as well as Dust Zones 21 & 22. These certifications affirm the torches’ safety and reliability in hazardous conditions, ensuring peace of mind for users in critical industries.
Long-life LED light sources boasting:
- 107lm (M-70)
- 139lm (M-60)
- 3 x 30cd (M-40)
- 30cd (M-10)
Battery Duration:
- 7 hrs (M-70),
- 3 hrs (M-60),
- 10 hrs (M-40)
- 2 hrs (M-10)
CERTIFICATION
- ATEX, IECEx & UKEX explosive gas, vapour, mist and dust certified for a range of zones 0, 1, 2, 20, 21 and 22
- T4 temperature class (M-40, M-60 & M-70)
- T5 temperature class (M-10)
- IP67 ingress protection
- Zone 0 Gas Approval
- Dust Approval: M-70 Zone 20 IIIC, M-10/40/60 Zone 21 IIIB
- Group I Mining Approval
FEATURES
- AAA batteries (M-70)
- Ultra-small size – easy to store in pockets
- Lightweight, ergonomic design
- Proven impact resistance
- Single-handed switching
- Switch protection shroud
- Integral pen-style pocket clip
- Supplied with batteries
 | M10 | M-40 | M-60 | M-70 | |
---|---|---|---|---|---|
PRODUCT DESCRIPTIONÂ | LED Micro Torch | LED Mini Torch | |||
CODE | ATEX | I M1/II 1G2D | I M1/II 1G2D | I M1/II 1G2D | I M1/II 1GD |
GAS | Ex ia IIC T5 Ga | Ex ia IIC T4 Ga | Ex ia IIC T4 Gb | Ex ia IIC T4 Ga | |
DUST | Ex ib IIIB T95°C Db |
Ex ib IIIB T125°C Db |
Ex ib IIIB T130°C Db |
Ex ia IIIC T200 160°C Da | |
MINING | Ex ia I Ma | Ex ia I Ma | Ex ia I Ma | Ex ia I Ma | |
TYPE OF PROTECTIONÂ | ia / ib | ||||
AREA OF CLASSÂ (GAS)Â | Zones 0, 1 & 2, Gas group IIC | ||||
TEMP. CLASS (GAS)Â | T5 | T4 | |||
AMBIENT TEMP. | -40°C to + 50°C | -20°C to +40°C | |||
AREA OF CLASS (DUST)Â | Zones 21 & 22, Dust Group IIIB | Zones 20, 21 & 22, Dust group IIIC | |||
MAX SURFACE TEMP. (DUST) | 95°C | 125°C | 130°C | 160°C | |
CERTIFICATIONÂ | Baseefa06ATEX084 / IECEx BAS 06.0023 / BAS21UKEX0435 | ||||
ENCLOSURE / LENS | Impact Resistant Thermoplastic with a polycarbonate lens | ||||
BEAM TYPEÂ | Medium Spot | ||||
LIGHT SOURCEÂ Â Â | TYPE | 1x5mm LED White (Nichia) | 3 x 5mm LED White (Nichia) | 1 x High Power Cree LED | |
OUTPUT (AT SOURCE) | 30 cd | 3 x 30 cd | Up to 139 lm | Up to 107 lm | |
LIFE | 25,000 hrs | ||||
POWER SOURCE | PART NO. | M-102 (4 pack) | M-402 (3 pack) | M-202 (2 pack) | |
TYPE | LR44 Primary Cells to IEC60086 | LR1 Primary Cells to IEC60086 | LR03 Primary Cells to IEC60086 |
||
VOLTS | 4 x 1.5V | 3 x 1.5V | 2 x 1.5V | ||
LIGHT DURATIONÂ | Up to 2 hrs | Up to 10 hrs | Up to 3 hrs | Up to 7 hrs | |
INGRESS PROTECTIONÂ | IP67Â | ||||
WEIGHT (INCL. CELLS)Â | 25g | 60g | 50g |
