BW GasAlert Quattro LEL(F)O2 H2S CO Gas Detector (Rechargeable Battery)
  • O2
  • CO
  • H2S
  • LEL
BW GasAlert Quattro LEL(F)O2 H2S CO Gas Detector (Rechargeable Battery)

Product Code - QT-XWHM-R-Y-UK

exc VAT £390.00 inc VAT £468.00

The BW GasAlert Quattro multi gas detector is a robust standard four-gas monitor, ideal for applications including oxygen depletion, carbon monoxide and hydrogen sulphide.  This monitor is serviceable and has a range of compatible accessories.

OR

Additional services

Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.
Description / Features / Spec

Description

BW GasAlert Quattro LEL(F)O2 H2S CO Gas Detector (Rechargeable Battery)

BW Technologies introduce the GasAlert Quattro as a robust and trustworthy multi gas detector.  This four gas detector features the following sensors: LEL (filtered) oxygen (O2), hydrogen sulphide (H2S) and carbon monoxide (CO).  This particular version has a rechargeable battery and yellow housing.

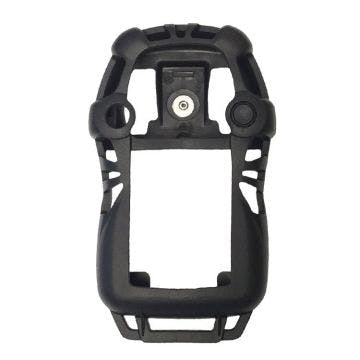

Ideal for industrial applications such as confined space entry, the GasAlert Quattro features a very compact and lightweight design with a concussion-proof boot.  It also uses field-proven SureCell sensor technology which provides excellent performance in harsh environments.

CO and H2S sensors have enhanced resistance to common industrial cross sensitive gases such as methanol and ethanol.



Key Features

  • Graphical and continuous LCD screen shows real-time operation for onsite auditing
  • Single-button operation – easy to use and requires very little training
  • Compatible with MicroDock II automatic calibration and test station – buy now
  • Ability to carry out full function test on sensors, battery and alarms
  • Record events and readings with integrated data logging and event logging capabilities
  • Choose from different languages - English, Spanish, German, French and Portuguese
  • Visual confirmation of operation information and compliance with the IntelliFlash function

Specifications

Sensor Ranges

LEL – 0-100% LEL (0.5% v/v)
O2 – 0-30%
CO – 0-1000 ppm
H2S – 0-200 ppm

Resolution

LEL – 1% (0.1%)
O2 – 0.1%
CO – 1 ppm
H2S – 0.1 ppm

Size

5.1 x 3.2 x 1.9 in. / 13.0 x 8.1 x 4.7 cm

Weight

11.92 oz. / 338 g

Temperature

-4 to +122°F / -20 to +50°C

Humidity

10% - 100% RH (non-condensing)

Alarms

- Visual (six red LEDs), vibrating, audible (95 dB)

- Low, High, STEL, TWA, OL (over limit)

Battery Life

20 hrs (+68 to 122°F / +20 to 50°C)

18 hrs (-4 to +32°F / -20 to 0°C)

Ratings

EMI/RFI: Complies with EMC Directive 2004/108/EC

IP66/IP67

Approvals

Class I, Div. 1, Gr. A, B, C, D

ATEX: Xg II 1 G Ga Ex ia IIC T4

IECEx: Ga Ex ia IIC T4

BR-Exia IIC T4

Warranty

Full two-year warranty including all sensors

What's Included?

  • GasAlertQuattro
  • Rechargeable battery pack or alkaline pack with three AA batteries
  • Charger wall plug (with rechargeable battery option)
  • Calibration cap and hose
  • Reversible screwdriver
  • Manual, materials booklet and technical reference guide (multi-language CD)
