PRODUCT CODE
BW-MICRODOCKII-WITH-MODULES-CHARGING

Choose from one of the configurations below.  Each configuration includes a base station, a specific monitor module which is charging and two or three inlets.  For an alternative configuration please contact our Sales Team.

* Required Fields

    £2,529.60 £2,108.00

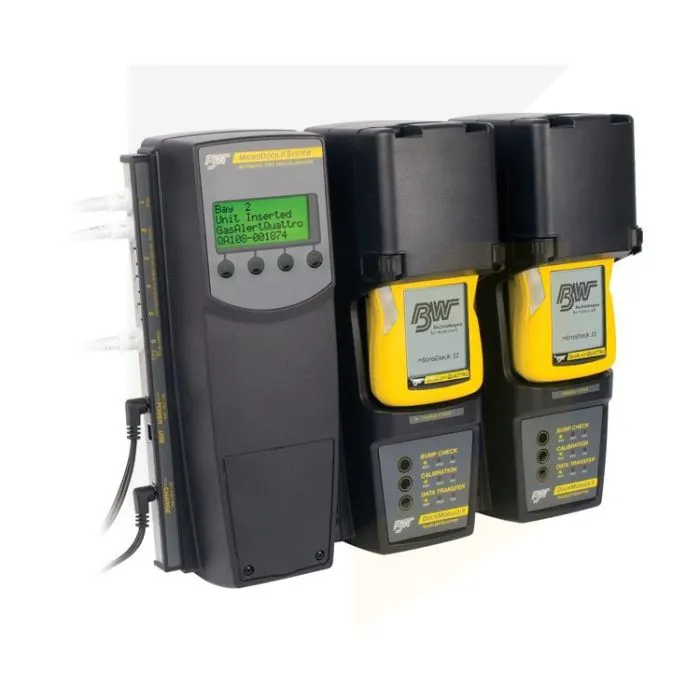

    BW MicroDock II Base Station with 1 x Module for Calibration (2 Inlets)

    BW MicroDock II Base Station with 1 x Module for Calibration (2 Inlets)

    The BW MicroDock II is an automatic testing and calibration station.  This is a simple way of ensuring that your gas monitor is fully functioning and calibrated.  The units can be configured to suit your exact monitor and calibration requirements.  Choose from some of our popular configurations in the drop-down above or contact our Sales Team for an alternative unit.

    Includes Base Stations with modules for BW GasAlert Extreme (non-charging, not compatible with CLO2 or O3), BW GasAlertMicroClip XL, BW GasAlert Quattro, BW GasAlert Max XT II and the BW GasAlert Micro5.

    The configurations listed above include the base station, a specific module which is charging (for everything except the BW Clip and GasAlert Extreme) and 2 inlets.  In order to have a fully functioning calibration station you’ll additionally need tubing with a connector to the regulator and appropriate calibration gas.  Other inlet configurations are available.

    Using a MicroDock II to calibrate your unit is cost-effective as the process is automated.  In terms of workload, it’s also capable of managing records and charging the unit at the same time.

    Key Features
    • Can also carry out bump testing
    • Fleet Management II Software can be used to download information from the Dock
    • Able to create accurate and user-friendly reports and print receipts of calibration
    • Sort report data e.g. graphs
    • Ideal for fleet management and ensuring compliance
    • Additional accessories available including carrying cases and wall mounts
    • Traffic light system indicates the status: test ‘yellow’, pass ‘green’, fail ‘red’
    Specifications

    What's Included?

    • Base unit
    • Four replaceable C-Cell Alkaline Batteries
    • 128 MB MultiMediaCard inserted
    • USB Cable
    • Two to four calibration gas hoses with quick connect fittings (dependant upon base station inlet configuration)
    • Inlet filter assembly
    • Base station power supply
    • Charging module power supply (as specified in charging module configuration)
    • MicroDock II Quick Reference Guide
    • Fleet Manager II software CD

    Size

    8.3 x 10.4 x 3.2 in. / 21.2 x 26.3 x 8.2 cm
    (base station plus one docking module)

    Power Supply

    6V wall adaptor or four C-cell batteries

    External Interface

    USB 2.0 interface for PC (USB 2.0 full speed)

    Pump

    • DC motor, micro-diaphragm; 6V PCB mount
    • Flow rate 400 ml/min (typically)

    Solenoid

    Built-In (Docking Modules)

     Certifications and Approvals

    • Ordinary Location approved, EMC Directive & Low Voltage Directive
    • IEC 61010 / C22.2 No. 61010
    • European Conformity

    Warranty

    Full two year warranty
