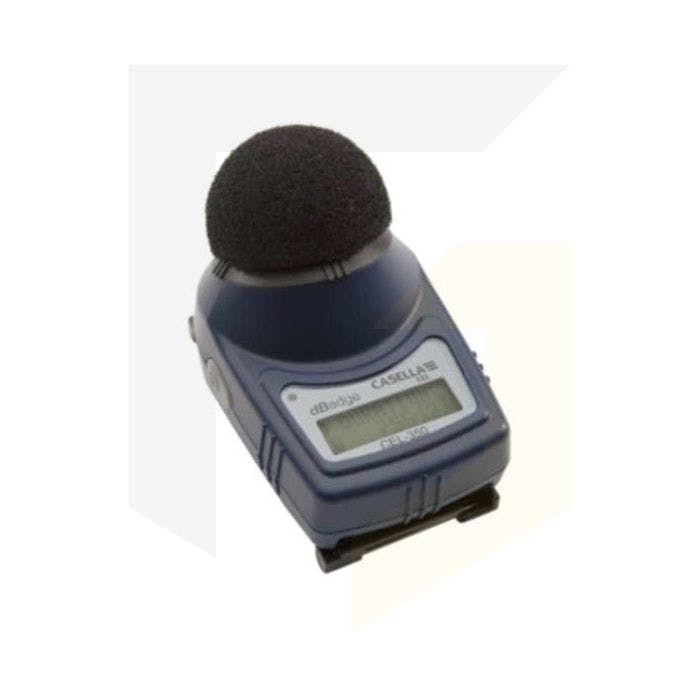

Casella CEL-352 dBadge Plus Kit (1x I.S. dBadge Plus with 3-way charger)
Please note: this product has been discontinued. See the new dBadge2 range as a replacement.
This CEL-352 dBadge Plus Kit includes an intrinsically safe dBadge Plus instruments and a 3-way charger. The 'Plus' model from Casella can perform simultaneous 'C' and 'A' weighted measurements needed for the HML Calculation to specify the correct ear defenders.
The CEL-350 dBadge Plus is part of a range of different nose monitoring instruments, ideal for personal noise exposure. This particular monitor from Casella instruments can be applied for noise dosimetry in instances such as measuring personal noise exposure, assessing and monitoring noise in the workplace, ensuring compliance with Workplace Noise Regulations and selection of effective hearing protection.
Built In Display and Simple 2 Key Operation
The display shows measurement status and data and also has a ‘fuel gauge’ display for memory and battery information. A ‘pro’ mode is available which enables projected exposure values to be displayed. The noise dosimeter also comes with an optional, ultra-bright LED action level alarm function which gives indication of when exposure action levels have been exceeded. These action levels can be configured via the Insight software and used to instantly see if noise control or hearing protection measures are needed. There is no external equipment needed to operate this sound level meter and it is simply used by the 2 keys on the side of the instrument.
Intelligent Fast Charging System
A single mains supply can supply up to 12 dBadge units and due to the battery technology and intelligent charging method used, the unit does not have to be continually on charge. The standard 3-way charger can be used to manage many units.
There is enough battery life and memory capacity to perform many consecutive shift measurements without charging or downloading and recharging only takes 90 minutes. Full charge gives the noise dosimeter a 28 hour operating time.
Variety of Mounting Options
There is a choice of mounting clips combine with the light weight and size of the CEL-350 sound level meter to make it both unobtrusive and comfortable to wear on the shoulder. The clips available to the user are crocodile clips (fitted), pin clips and a hard hat mounting kit which all provide comfort and protection from dusty environments.
Data Management
The dBadge Plus measures simultaneous ‘C’ and ‘A’ weighted LCeq, and LAeq measurements, which can then be used to calculate the effectiveness of hearing protection by either the SNR or HML method. This data can be viewed and analysed via Insight software. ‘Pro’ mode, available on CEL-350 and CEL-352 models, allows additional exposure values to be displayed.
The CEL-350 downloads to a PC automatically using Casella Insight software, simply by pointing the noise dosimeter at the infra-red download cable provided.
Results recorded from noise dosimetry can be stored in a simple tree structured database, by person, place or process etc. They can also be automatically colour coded to identify exceeded noise levels and an automatic report can be generated.
Intrinsically Safe (I.S.) models
To meet the requirements of ATEX EEx ia I M1, EEx ia IIC T2 II 1 G, certificate number 07ATEX2032X and IECEx Ex ia I Ma, Ex ia IIC T2 and certificate number IECEx SIR 11.0063X an Intrinsically Safe version of the CEL-350 dBadge series is available, making the I.S. dBadge Plus suitable for use in hazardous areas such as mines, printing works or petrochemical plants.
- Compact, rugged (rubber over moulded) design weighs only 71g
- No cables to damage or get in the way
- Measures and logs all workplace noise parameters
- 28 hour battery life, fully charges in 90 minutes
- Integrated display and visual exposure alarm
- Simple auto-calibration function
- Comprehensive software package
- Pro mode displays dose and projected dose values
- Run duration timers
Linear operating range | 65.0 to 140.0dB RMS |
Peak measurement range | 95.0 to 143.0dB Peak |
Frequency weightings RMS | A |
Frequency weightings Peak | C, A, Z (Linear) |
Time weightings | Slow, Fast & Impulse |
Amplitude weightings | Q=3 & Q=5 |
Selectable thresholds | 2 (70 to 90dB), selectable in 1dB steps |
Selectable criterion | 1 (70 to 90dB), selectable in 1dB steps |
Memory capacity | 64kB (180 Hours of measurements) |
Default modes | ISO or OSHA |
Calibration information | Calibration dates, times and levels |
Security | Lock via keys |
Power supply | Internal NiMH cells |
Battery life | 32 Hours run capacity |
Size mm (in) | 72x47x52 (2.8x1.8x2.0) inc windshield |
Weight g (oz) | 68 (2.4) |
Data storage | Non-volatile, 10 years of storage |
Display | Graphic LCD 96 x 26 pixels |
Output (PC) | Infra-red download cable (supplied) to dB35 software |
Applied Standards | IEC 61252:2002 Personal Sound Exposure Meters |
ANSI S1.25:1991 Personal Noise Dosimeters | |
Measured Parameters | |
ISO | LAeq, LCpeak, LAEP,d, Pa2Hours |
OSHA | LAavg (Q=5), LZpeak, |
LASmax, %dose (Q=5), TWA (Q=5) |
|
General | LAFmax, LAFmin, LASmin |
(via dB35) | LAIeq, LAImax, LAImin, LApeak |
Time history | LAeq, LZpeak, LCpeak, LAavg (Q=5) Stored as 1 minute values |
Storage | All parameters simultaneously stored |
Environmental Conditions | |
In storage | Temperature: -10 to +50oC, Humidity: 30 to 95% RH (non-condensing) |
In operation | Temperature: 0 to +40oC |
