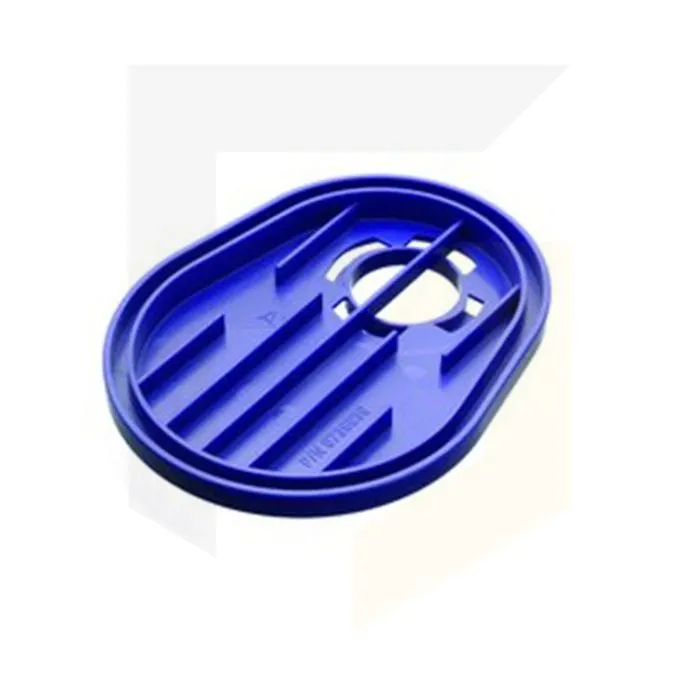

Drager Bayonet Pad Base, pack of 12
This bayonet pad base is for use with Drager’s range of half face masks and full face masks, both of which must have a bayonet filter connection. This particular product comes in a pack of 6 pairs (12 pieces) and weighs approximately 20g per piece.
The base is used as part of a combination with other face mask accessories which make up a complete particle filter. The base houses the particle pad (either P1 or P2) which is then encased by the pad cap to create the complete particle filter.
The additional parts needed to make up the particle filter are available on the Frontline Safety website. Click on the products below to buy.
Drager Bayonet Pad P1 NR Particle Filters (10 pairs)
Drager Bayonet Pad P2 R (10 pairs)
Drager Bayonet Pad-Retainer (x12)
- Particle filters are ideal for situations where there is no need for a gas filter and no gaseous substances or vapours present
- Compatible with the X-plore 3300 and X-plore 3500 (half masks)
- Also compatible with the X-plore 5500 full face mask
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
