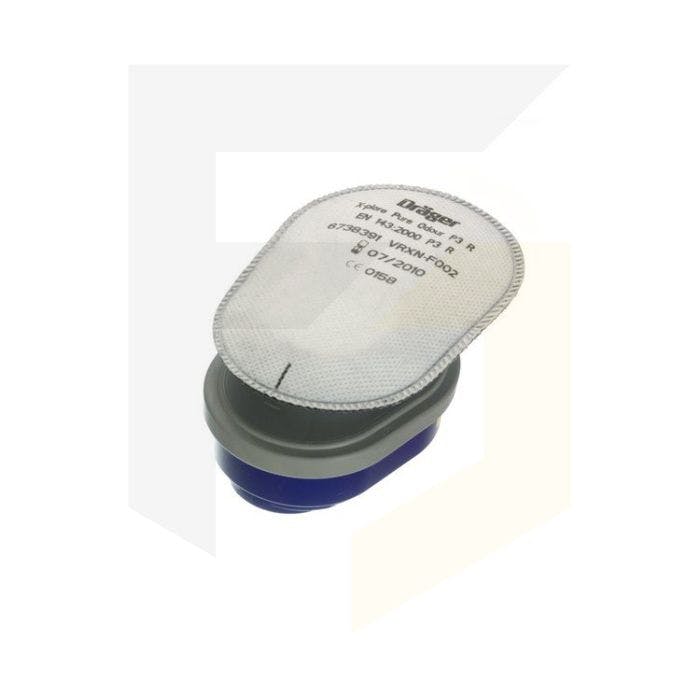

Drager Bayonet Pure Odour P3 R, Particle Filters, EN 143:2000, pack of 10 pairs
These particular sets of filters from Drager Safety are twin bayonet filters which protect against level P3 dust particulates. They come in a pack of 10 pairs (20 pieces) and can be used in conjunction with the X-plore half masks 3300 and 3500 and the X-plore 5500 full face mask.
Having class 3 protection means this filter is capable of filtering out a high level of particles. They are 99.95% efficient. The ‘R’ symbol means the filters can be reused (for more than one shift), however this is very dependent in the atmosphere you’re in and the breathing resistance. It’s important to be aware of such factors and be able to identify when your filter has reached the end of its life.
This particular filter has an additional feature. It has a special odour layer which helps to remove unpleasant smells whilst wearing the mask and filters.
The Pure Odour P3 set of filters can be used individually as particle filters, however Drager make it possible to convert the filter into a combination filter using the Bayonet Adapter (p/n 6738356). Just connect your chosen gas filter to the Pure P3 filter using the adapter to make a combination filter able to protect against gaseous vapours and dust particles.
- Available for use in various applications
- White colour of housing indicates that the filters are suitable for filtering out particles
- Filters are easy to attach and easy to change
- Secure the fitting in a top-down position
- Individually packaged to allow maximum protection
- Filters weight 30g per piece
- CE-certified (EN 14387, EN 143:2000/A1:2006)
- Australian Standard AS /NZS 1716 certified (SAI Global)
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
