PRODUCT CODE
6728511
£98.08 £81.73

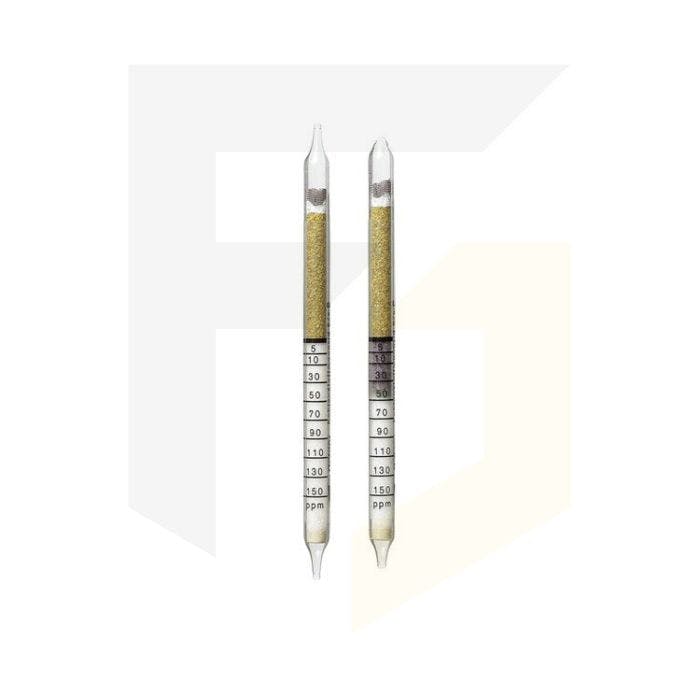

Drager Carbon Monoxide 5/a-P (2;5-150 ppm) Aerotest Tube


Drager Carbon Monoxide 5/a-P (2;5-150 ppm) Aerotest Tube

Drager Carbon Monoxide 5/a-P, 2,5-150 ppm,  Aero Test Tube

Drager Aerotest Tubes (for use with LP or HP Aerotest Kit) - Carbon Monoxide 5/a-P Measuring: 2,5-150 ppm.

Note: This product is deemed to be hazardous and as such we cannot always guarantee next day delivery will be available.  This product has a shelf life of 2 years.

Specifications
Application Range
Standard Measuring Range: 100 to 3,000 ppm
Test Volume: 1 L
Flow Rate: 0.2 L / min
Time for Measurement: approx. 5 min
Standard Deviation: ± 10 to 15 %
Color Change: white --> brownish-green

Ambient Operating Conditions
Temperature: 0 to 40 °C
Absolute Humidity: 0 to 50 mg H2O / L
Pressure: The tube may only be
used for depressurized
compressed air

Reaction Principle
                      H2S2O7
5 CO + I2O5  -------> I2 + 5 CO2

Cross Sensitivity
Acetylene reacts similarly to carbon monoxide but with less sensitivity. Petrol, benzene, halogenated hydrocarbons and hydrogen sulfide are retained in the pre-layer. Higher concentrations of easily cleavable halogenated hydrocarbons (e.g. trichloroethylene) may from chromyl chloride in the pre-layer which changes the indicating layer to yellowish-brown. In case of high olefine concentrations it is not possible to measure carbon monoxide.

Extension of the Measuring Range
Using a test volume of 2 L divide the reading by 2, measuring range 2.5 to 75 ppm.
