- Description / Features / Spec

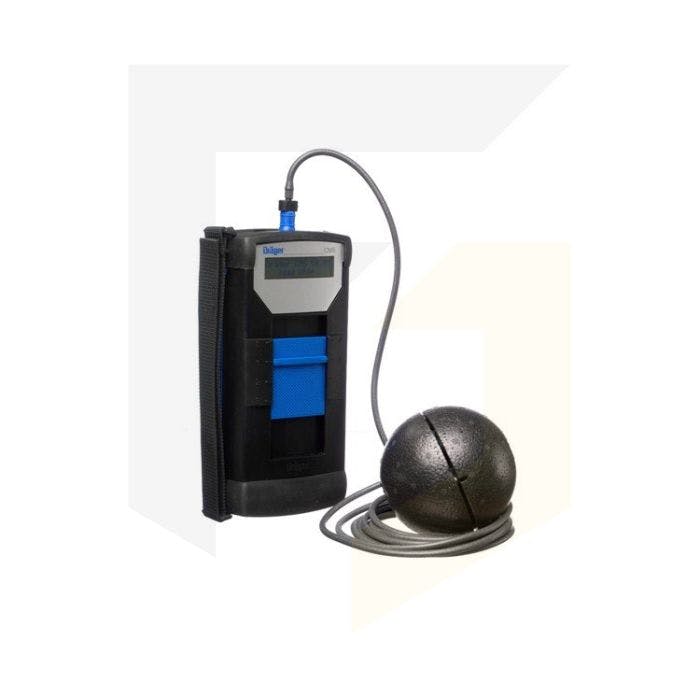

Drager CMS (Perm. Attached Remote System - 3m)
Please note this product is now obsolete.
This Drager Chip Measurement System comes with a permenantly attached remote system from Drager. This also includes a 3 metre extension hose.
The CMS is ideal for measuring spot concentrations. It combines an electronic based analyser with substance specific chips which each contain 10 individual test/capillaries, filled with a reagent system.
The CMS analyser can store the results of 50 measurements by the DataRecorder which is integrated within the analyser, together with relevant data.
- Accurate and reliable system
- Portable and lightweight system
- Measurements can be taken immediately
- Poisoning effects are not possible
- IP54 rated
- LCD, alphanumeric display with backlighting
- Four menu languages available – English, German, French and Spanish
- No need for calibration
215mm x 105mm x 65mm
730g (analyser with batteries)
Typical Measurement Time
I30s to 5min in range of the limit values, depends on chin type and concentration of hazardous substance
Temperature During Operation
0 to 40°C
Temperature During Storage
-20 + 60°C (Analyser)
700 to 1100 hPa
0 to 95% relative humidity, non-condensing
Recording of Measured Values
Approx. 450 minutes of measurement
(4x 1.5V batteries from the following types)
- Varta - LR 6 4006
- Energizer - LR 6 E 91
- Panasonic - LR 6 AM 3 AA MN 1500
- Alkaline/Foil - (PMBC)
- BVS Europe Type Examination Certificate
- Protection Class EEx ib II CT4, test no.
- BVS 95.D.2109
- UL USA - Class 1, Div. 1, Groups A, B, C, D, Temp. Code T4, 2P91
- UL Canada - Class 1, Div. 1, Groups A, B, C, D, Temp. Code T4, 2P91
- CSA Canada - Class 1, Div. 1, Groups A, B, C, D, Exia, Temp Code T4
