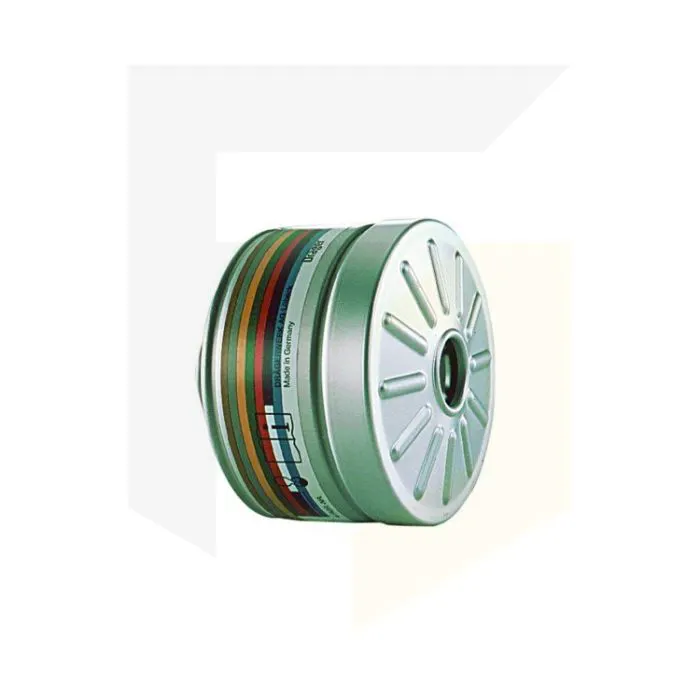

Drager Combination Filter (EN14387), 1140 A1B2E2K1HgNO CO 20 P3 R D
The Drager combination filter 1140 A1B2E2K1HgNO CO 20 P3 R D offers clean breathing air and protection against a wide range of gases.
Please note: This particular filter can only be used in conjunction with full face masks as the weight is more than 300g. NO and CO filters are one time use only and must be disposed after use (according to local regulations). Hg filters can only be used for a maximum of 50 hours according to EN 14387.
The list of gases covered by the filters includes organic compounds, inorganic compounds (e.g. chlorine, hydrogen sulphide, and hydrogen cyanide), sulphur dioxide, hydrogen chloride, ammonia, mercury vapour, nitrous gases and also carbon monoxide.
The gas filters are also combined with a particle filter which ensures dust and particulates are filtered out. The ‘P3’ class indicates that it’s 99.95% efficient during filtration.
- Compatible with Drager’s range of full face masks with a standard Rd40 thread connection
- Low in cost but offer a high level of user safety
- Tough aluminium housing offers additional protection
- Optimum protection is offered through individual packaging
- Shelf life (from date of production) is 6 years
- Dolomite tested
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
