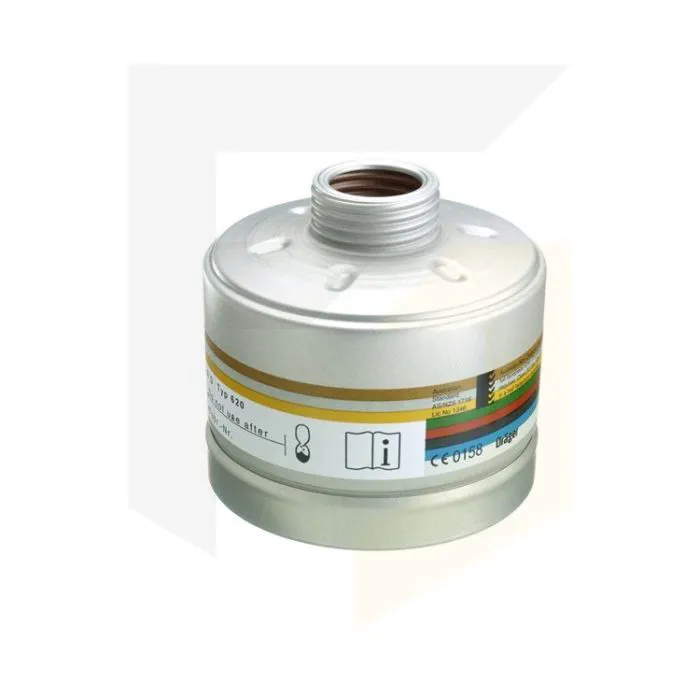

Drager Combination Filter, EN14387, 1140 A2B2E2K2HgNO CO 20 P3 R D
A2B2E2K2HgNO CO 20 P3 R D is a combination filter from Drager Safety. It’s designed to protect against a wide range of gases including nitrous gases, mercury vapour and carbon monoxide. It also filters out dust and particulates. See the spec table for more information.
Please note: This particular filter can only be used in conjunction with full face masks as the weight is more than 300g. NO and CO filters are one time use only and must be disposed after use (according to local regulations). Hg filters can only be used for a maximum of 50 hours according to EN 14387.
This product is an alternative (but without the 60min Carbon Monoxide capacity) to the obsolete product 6738805. It is not a direct replacement.
Due to the wide range of protection available the filters can be used in many different applications. This may include shipbuilding, metal processing or public utility services. The filter has an Rd40 connection meaning it can be used with Drager full face masks like the X-plore 6300 and certain Panorama Nova masks.
- Offer clean breathable air for a low cost
- Aluminium housing ensures filters are easily recognisable and are safe from potential damage
- Shelf life on the combination filters is 6 years (from date of production)
- Dolomite test passed
- Approvals include CE approved (EN 141:2000 re. EN 14387, EN 143:2000, EN 371) and SAI Global-approved (Australia)
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
