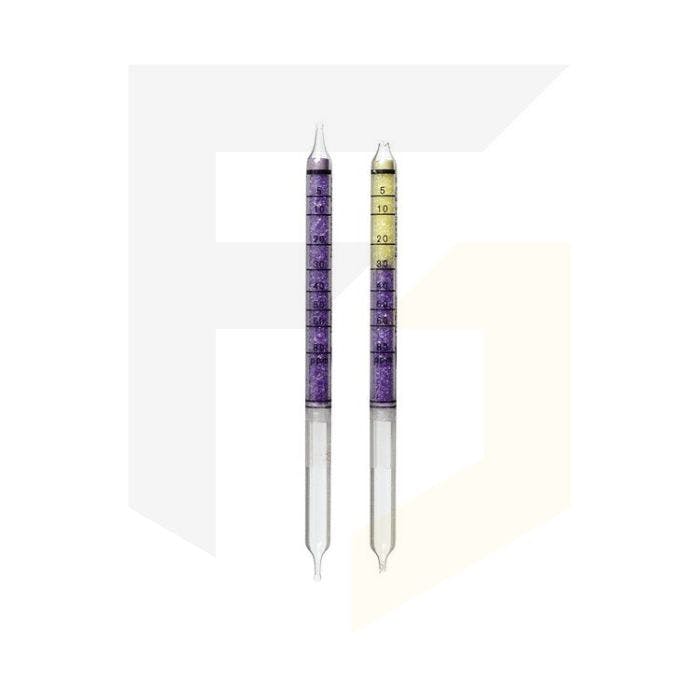

Drager Short-Term Detection Tubes - Acetic Acid 5/a tube (Pack of 10)
- PRODUCT CODE:
- 6722101
These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.
£102.91
inc VAT
exc VAT:
£85.76
exc VAT:
Loading...
Product description
Drager Detection Tubes - Acetic Acid 5/a tube (Pack of 10)
Acetic Acid 5/a tubes from Drager Safety have a measurement range of 20 to 320 ppm and feature a shelf life of 2 years. They come in a pack of 10 tubes.
Click here to view more information on the compatible Drager Accuro Gas Detection Pump for short-term detection tubes.
Key Features
- Obtain readings from hard to reach places with the tubes, pump and accessories
- Carry out measurements on the spot
- 10 seconds to 15 minutes is the potential time frame for readings to be taken and is dependent on the type of tube used
- Pre-entry checks and confined space entry are two applications which can use tubes
- Additional applications may include variations in concentration levels and also contamination of breathing areas
Specification
| Application Range | |||
| Determination of acetic acid in water/waste water | |||
| Dräger-Tube: | Acetic Acid 5/a | ||
| Measuring Range: | 1 to 20 g/L | ||
| Number of Strokes n: | 10 | ||
| Typical Stroke Time: | 10 to 30 s | ||
| Measurement Time: | approx. 200 s | ||
| Sample Volume: | 200 mL | ||
| Color Change: | blue violet --> yellow | ||
| Temperature Range: | 5 to 25 °C | ||
| pH-Measurement: | necessary | ||
| Information of Measurement | |||
| Using sulfuric acid, the pH-value has to be adjusted to the value of 1.3 | |||
| System Parameters | |||
| Measurement Range [g/L] |
Standard Deviation [%] |
Temperature [°C] |
Parameters B (C) |
| 1 to 20 | 25 | 5 to 25 | 0.487 1.607 |
| Evaluation of Measurement |
| Calculate acetic acid concentration: Y[g/L] = A • B • (X[ppm] + C) |
| Cross Sensitivity |
| Formic acid is indicated with lower and propionic acid with higher sensitivity. |
