Drager Short Term Detection Tubes - Fluorine 0.1/a (Pack of 10)

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

£115.62 inc VAT

£96.35

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

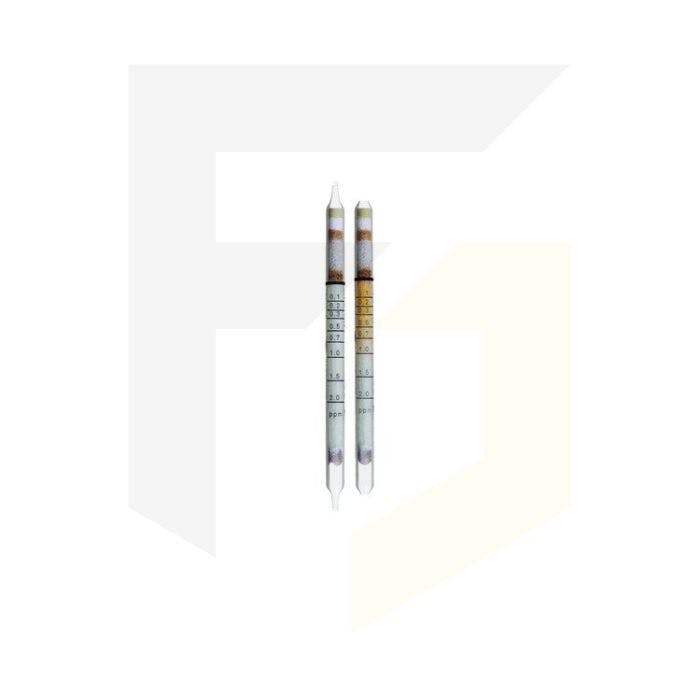

These Fluorine tubes (0.1/a) have a measurement range of 0.1 to 2 ppm. They come in a pack of 10 tubes and have a shelf life of 2 years.

Short-term detection tubes require the use of the Drager Accuro Gas Detection Pump. Click here to buy this product.

Hard-to-reach and on-the-spot measurements can be carried out using the tubes, pump and accessories
Obtain measurements within 10 seconds to 15 minutes (depending on the type of tube)
Pre-entry checks, confined space entry, variations in concentration levels in the workplace and contamination of breathing zones are possible applications which may use tubes

Specification

Application Range
Standard Measuring Range:	0.1 to 2 ppm
Number of Strokes n:	20
Time for Measurement:	approx. 5 min
Standard Deviation:	± 15 to 20 %
Color Change:	white --> yellow

Ambient Operating Conditions
Temperature:	10 to 40 °C
Absolute Humidity:	< 10 mg H2O / L

Reaction Principle
a) F2 + MgCI2 -> CI2 + Mg F2 b) Cl2 + o-tolidine ä yellow reaction product

Cross Sensitivity
Nitrogen dioxide, chlorine and chlorine dioxide are indicated, but with different sensitivities.

Extension of the Measuring Range
Using n = 40, divide the reading by 2; the measuring range will be 0.05 to 1 ppm.
