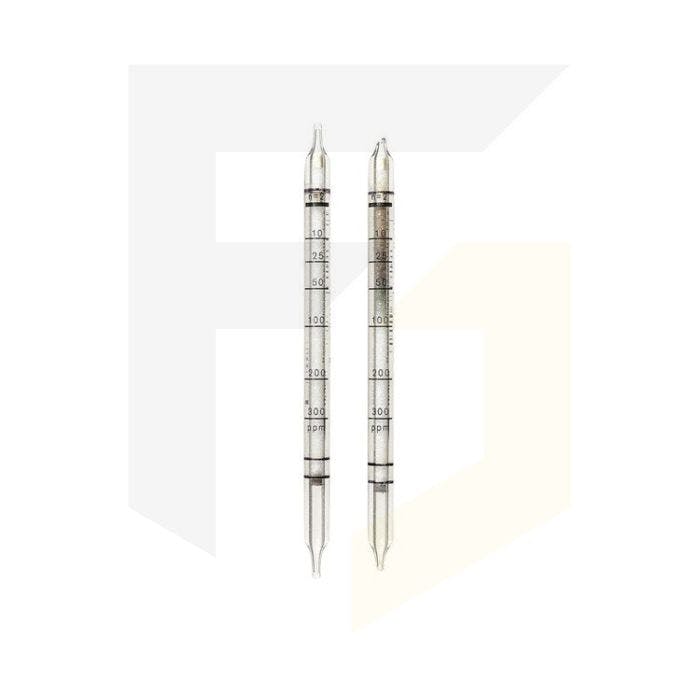

Drager Detection Tubes - Petroleum Hydrocarbons 10/a (Pack of 10)
These petroleum hydrocarbon tubes (10/a) have a measurement range of 25 to 300 ppm. These particular short-term gas detection tubes from Drager can also detect a range of other substances including Acetylene, Decane, Decene, Diesel, 2,4-Dimethylhexane, 3,3-Dimethylhexane, 4,7-Dimethylundecane, Dodecane, Heptane, Hexane, Methyl Iodide, n-Nonane, i-Octane, n-Octane, Petroleum Hydrocarbons (general), Undecane and White Spirit.
Please note the tubes come in a pack of 10 and have a shelf life of 2 years.
The Accuro Gas Detection Pump from Draeger Safety is required to use short-term gas detection tubes. View more information on this product by clicking here.
- Reach difficult measurement areas with the tubes, pump and accessories
- Carry out measurements on the spot
- Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
- Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry
Application Range | |
Standard Measuring Range: | 10 to 300 ppm for n-octane. |
Number of Strokes n: | 2 |
Time for Measurement: | approx. 1 min |
Standard Deviation: | ± 25 % |
Color Change: | white --> brownish green |
Ambient Operating Conditions | |
Temperature: | 15 to 30 °C |
Absolute Humidity: | 1 to 20 mg H2O / L |
Reaction Principle | |
C8H18 + I2O5 --> I2 | |
Cross Sensitivity | |
In addition to n-octane other organic or inorganic compounds are indicated as well. 50 ppm n-hexane indicates a discoloration of approx. 70 ppm 100 ppm n-heptane indicates a discoloration of approx. 150 ppm 10 ppm iso-octane indicates a discoloration of approx. 15 ppm 100 ppm iso-octane indicates a discoloration of approx. 150 ppm 200 ppm iso-octane indicates a discoloration of approx.350 ppm 50 ppm n-nonane indicates a discoloration of approx. 50 ppm 50 pppm perchloroethylene indicates a discoloration of approx. 50 ppm 30 ppm CO indicates a discoloration of approx. 20 ppm |
|
