Drager Hydrogen High Concentration (0-4 Vol%) Sensor

PRODUCT CODE:: 6811365

£725.82 inc VAT

£604.85

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

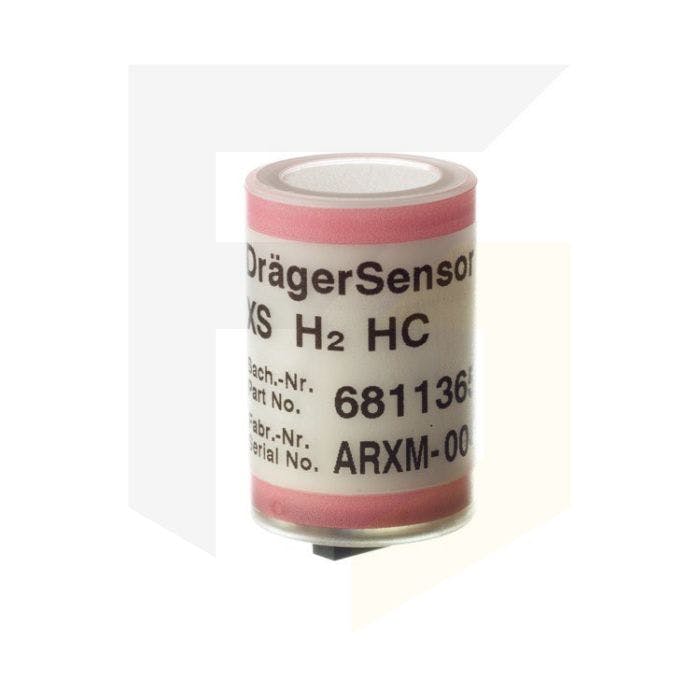

Drager Hydrogen High Concentration (0-4 Vol%) Sensor

Used for the detection of hydrogen in pariculary high concentrations, this DragerSensor XS EC has a measuring range of 0 to 4 vol.%.

The Drager Safety sensor is used with the Drager X-am 7000 multi gas detector and may be applicable in market segments including ammonia synthesis, fuel refinement (hydrocracking), sulfur elimination, chemical, rocket fuel, leakage inspection, metal processing, industrial gases, fertilizer production, battery chargers and fuel cells.

Key Features

This is a plug and play sensor which can be easily replaced
Comes with a 1 year guarantee
Covers entire range of LELs up to 4 Vol % H2
Ideal when using IR technology in X-am 7000
Offers high selectivity and linearity

Specification

Detection Limit	0.02 Vol %
Resolution	0.01 Vol %
Response Time	≤ 20 seconds at 20 °C or 68 °F (T50)
Measurement accuracy	Zero Point: ≤ ± 0.05 Vol. % Sensitivity: ≤ ± 2% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 0.05 Vol. %/year Sensitivity: ≤ ± 3% of measured value/month
Warm-up time:	≤ 1 hour
Ambient conditions	Temperature: (–20 to 50)°C (–4 to 122)°F Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: ≤ ± 0.05 Vol. % Sensitivity: ≤ ± 5% of measured value
Influence of Humidity	Zero Point: No Effect Sensitivity: ≤ ± 0.1% of measured value/% RH
Test Gas	approx. 2 Vol. % H2 test gas
