Drager Orsa 5 Passive Sampling Tube
- PRODUCT CODE:
- 6728891
Drager Orsa 5 Passive Sampling Tube
£139.49
inc VAT
exc VAT:
£116.24
exc VAT:
Loading...
Product description

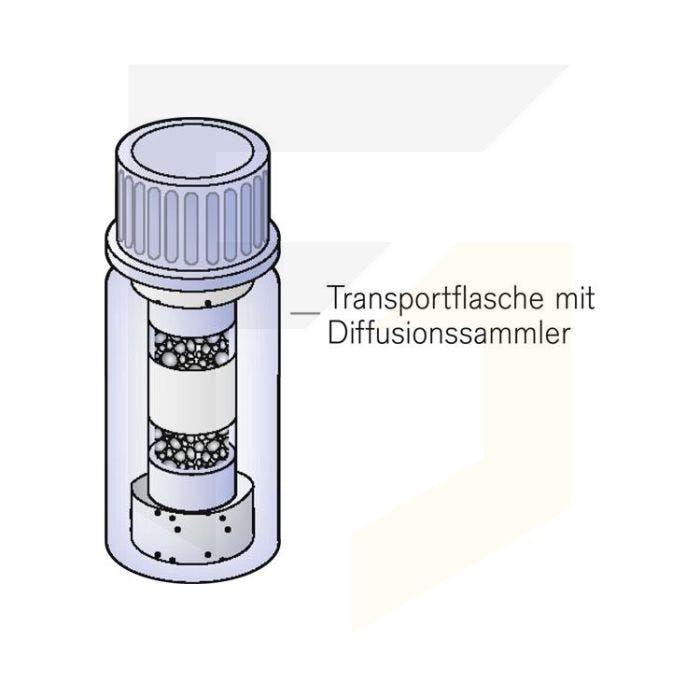

Drager Orsa 5, Passive Sampling Tube
Drager passive sampling tube, Orsa (5 pieces).
NOTE: This product has a shelf life of 2 years.
Advice for sample-taking
Air sampling is carried out in the previously determined measuring period which should be documented. After sampletaking the sampling tube is sent to the laboratory for analysis in the tightly sealed glass bottle.
Note concerning the analysis
The enriched volatile organic compounds are analysed in accordance with the procedures recommended by BGIA, DFG, NIOSH, OSHA and HSE.
Specification
| Application Range | |
| Adsorbate | organic compounds which adsorb on activated charcoal by diffusion |
| Sorption agent | coconut shell coal |
| Adsorption layer | 400 mg |
| Adsorption capacity | max. 10 mg, depends on substance |
| Diffusion rate | 1 to 4 μg/ppm x h, depends on substance |
| Sampling rate | 5 to 10 mL/min, depends on substance |
| Response time | approx. 2 s |
| Standard range of measurement | 0.1- to 3-times the limit value for most organic solvents for a sampling period of 8 h |
| Sampling period | 0.5 to 8 h for measurement in limit value range |
| Diffusion cross section | 0.88 cm2 |
| Diffusion distance | 0.5 cm |
| Diffusion barrier | acetate cellulose |
| Diffusion resistance coefficient |
0.8 |
| Apparatus constant | 0.71 cm–1 |
| Permissible ambient conditions |
|
| Temperature | 5 to 40°C |
| Moisture | 5 to 80 % at 20°C |
| Atmospheric pressure | below 1050 hPa |
| Air velocity | at least 1 cm/s |
