Drager Pac 7000 5Y Oxygen (O2) Personal Gas Detector

PRODUCT CODE:
8321033
Please note: this product is now obsolete. See the Drager Pac 6500 as an alternative product.

Please note this product is currently discontinued.

Loading...

Product description

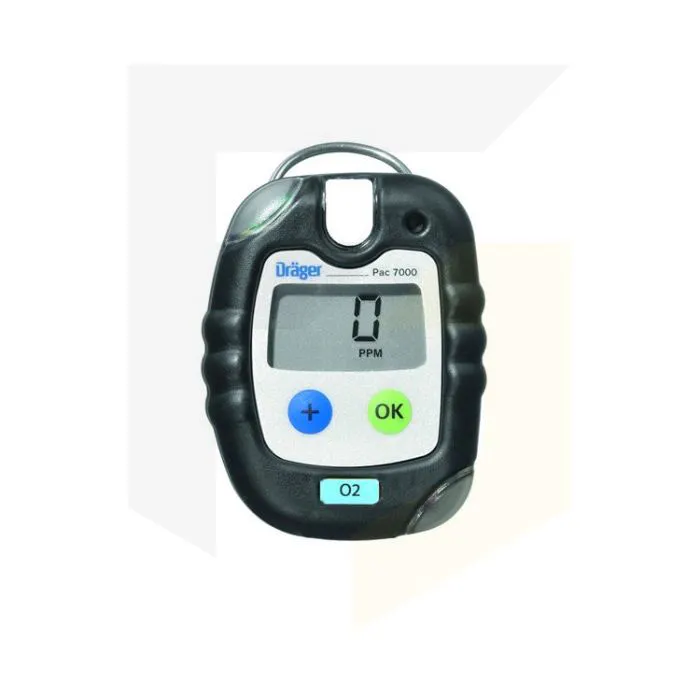

Drager Pac 7000 5Y Oxygen (O2) Personal Gas Detector

Please note: this product is now obsolete.  See the Drager Pac 6500 as an alternative product.

The Drager Pac 7000 is a small, portable gas detector which can be used for work safety in industrial settings.  This particular configuration comes with a 5-year guarantee on the O2 sensor.

It’s able to detect oxygen depletion levels and is highly reliable, providing fast and accurate results.

This personal gas monitor from Draeger is designed for long-term operation and can make bump testing easier by automating the process (when used in conjunction with the Drager Bump Test Station ).

Bump tests can be configured to match specific safety regulations.  The Pac 7000 also has an automatic shut-off function which shuts off the instrument after a certain period of time if function tests haven’t been carried out.

Key Features

  • Impact-resistant, protective rubber coating – impervious to corrosive chemicals
  • Optimised protection against electromagnetics
  • Adjustable crocodile clips allows monitor to be fastened  to clothing
  • Easy to replace battery and sensor on-site without any additional equipment
  • Replaceable water and dust filter
  • Immediate display of gas hazards
  • Adjustable data logger records all concentrations and events with respective dates and times (120 hours @ 1 data set per minute)
  • Data can be downloaded via Drager Pac Vision, Drager CC-Vision software or Drager GasVision software
  • Integrated menu for calibration options
  • Password protection option for fresh air or span calibration
  • Gas Inlets at the top and front of device
  • Automated bump test process with Drager Bump Test Station



Specification
Range  (ppm) 0 to 25 Vol.-%
Resolution  (ppm) 0.1 Vol.-%
Response Time 10 secs
Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight 120 g; 3.8 oz.

Ambient Conditions
  • Temperature: -30 – 50 °C; -20 – 120 °F
  • Pressure: 700 – 1300 hPa
  • Humidity: 10 – 90 % r. h.
Battery Life

5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating IP 65 – projection of water

Alarms
  • Two-tone-alarm typical > 90 dB at a distance of 30 cm
  • Two alarm lights located at corners of monitor for 360° visibility
  • Adjustable TWA and STEL alarms
  • Low battery and error warning
Approvals
  • CE-Sign (89/336/EEC, 94/9/EC)
  • ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4
  • UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • IECEx EEx ia IIC, T4
  • Marine Equipment Directive 96/98/EC
  • Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included
  • Pac 7000 Detector with Drager XXS Sensor as specified
  • Operation and maintenance manual
  • Crocodile clip (installed)
  • High capacity Lithium battery installed
