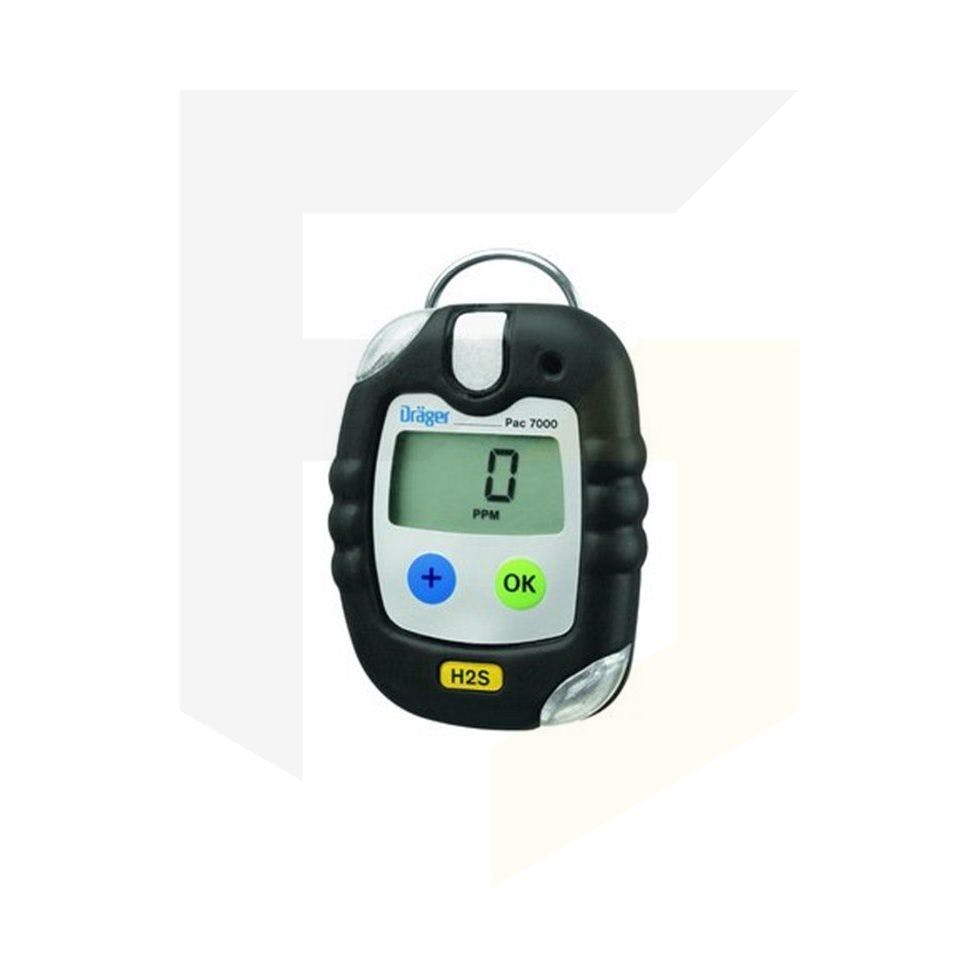

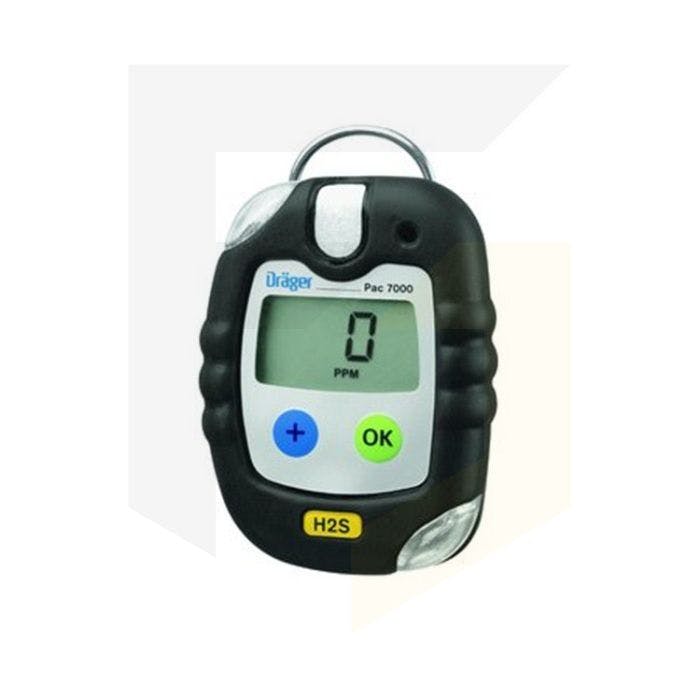

Drager - Pac 7000 Hydrogen Sulfide (H2S) Personal Gas Detector

PRODUCT CODE:: 3363769

Please note: this product is now obsolete. See the Drager Pac 6500 as an alternative product.

Please note this product is currently discontinued.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Drager - Pac 7000 Hydrogen Sulphide (H2S) Personal Gas Detector

Please note: this product is now obsolete. See the Drager Pac 6500 as an alternative product.

The Pac 7000 from Draeger is a reliable personal gas monitor which can be used to detect harmful concentrations of hydrogen sulphide. It can be used industrial settings.

This small detector is highly reliable and will provide you with fast and accurate results when detecting H2S gas.

The Pac 7000 has the ability to carry out long-term operations and has an automated bump test process which makes testing easier. This requires the use of the Draeger Bump Test Station. Bump tests are configurable and can match specific safety regulations.

Another feature of this Drager hydrogen sulphide monitor is the automatic shut-off function. This ensures the instrument shuts down after a set period of time if function tests have not been carried out.

Key Features

Impact-resistance and protective rubber coating – impervious to corrosive chemicals
Optimised protection against electromagnetics
Fasten monitor to clothing using adjustable crocodile clips
Replaceable water and dust filter, battery and sensor – can be done onsite without additional equipment
Gas hazards are displayed immediately
Adjustable data logger records all concentrations and events with respective dates and times (120 hours @ 1 data set per minute)
Data is downloadable via Drager Pac Vision, CC-Vision or GasVision software
Integrated menu for calibration options
Password protection option for fresh air or span calibration
Gas Inlets at the top and front of device
Automated bump test process with Drager Bump Test Station

Specification

Range (ppm)	0 to 100 ppm
Resolution (ppm)	1 ppm
Response Time	15 secs
Dimensions (W x H x D)	84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight	120 g; 3.8 oz.
Ambient Conditions	Temperature: -30 – 50 °C; -20 – 120 °F Pressure: 700 – 1300 hPa Humidity: 10 – 90 % r. h.
Battery Life	5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating	IP 65 – projection of water
Alarms	Two-tone-alarm typical > 90 dB at a distance of 30 cm Two alarm lights located at corners of monitor for 360° visibility Adjustable TWA and STEL alarms Low battery and error warning
Approvals	CE-Sign (89/336/EEC, 94/9/EC) ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4 UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4 cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4 IECEx EEx ia IIC, T4 Marine Equipment Directive 96/98/EC Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included	Pac 7000 Detector with Drager XXS Sensor as specified Operation and maintenance manual Crocodile clip (installed) High capacity Lithium battery installed
