Drager - Pac 7000 Nitrogen Dioxide (NO2) Personal Gas Detector

PRODUCT CODE:
8318977
Please note: this product is now obsolete. See the Drager Pac 8000 as an alternative product.

Please note this product is currently discontinued.

Loading...

Product description

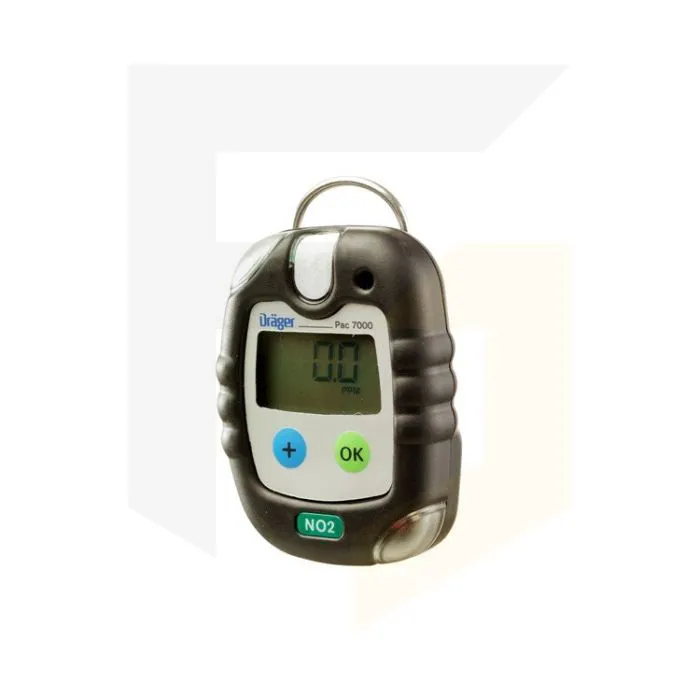

Drager - Pac 7000 Nitrogen Dioxide (NO2) Personal Gas Detector

Please note: this product is now obsolete.  See the Drager Pac 8000 as an alternative product.

The Pac 7000 from Draeger is a reliable personal gas monitor which can be used to detect harmful concentrations of nitrogen dioxide.  It can be used in applications in industrial settings.

This small detector is highly reliable and will provide you with fast and accurate results when detecting NO2 gas.

The Pac 7000 has the ability to carry out long-term operations and has an automated bump test process which makes testing easier.  This requires the use of the Draeger Bump Test Station .  Bump tests are configurable and can match specific safety regulations.

Another feature of this Drager nitrogen dioxide monitor is the automatic shut-off function.  This ensures the instrument shuts down after a set period of time if function tests have not been carried out.

Key Features

  • Impact-resistance and protective rubber coating – impervious to corrosive chemicals
  • Optimised protection against electromagnetics
  • Monitor can be fastened to clothing using adjustable crocodile clips
  • Replaceable water and dust filter, battery and sensor – can be done onsite without additional equipment
  • Gas hazards are displayed immediately
  • Adjustable data logger records all concentrations and events with respective dates and times (120 hours @ 1 data set per minute)
  • Data is downloadable via Drager Pac Vision, CC-Vision or GasVision software
  • Integrated menu for calibration options
  • Password protection option for fresh air or span calibration
  • Gas Inlets at the top and front of device
  • Automated bump test process with Drager Bump Test Station
Specification
Range  (ppm) 0 to 50 ppm
Resolution  (ppm) 0.1 ppm
Response Time 15 secs
Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight 120 g; 3.8 oz.

Ambient Conditions
  • Temperature: -30 – 50 °C; -20 – 120 °F
  • Pressure: 700 – 1300 hPa
  • Humidity: 10 – 90 % r. h.
Battery Life

5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating IP 65 – projection of water

Alarms
  • Two-tone-alarm typical > 90 dB at a distance of 30 cm
  • Two alarm lights located at corners of monitor for 360° visibility
  • Adjustable TWA and STEL alarms
  • Low battery and error warning
Approvals
  • CE-Sign (89/336/EEC, 94/9/EC)
  • ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4
  • UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • IECEx EEx ia IIC, T4
  • Marine Equipment Directive 96/98/EC
  • Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included
  • Pac 7000 Detector with Drager XXS Sensor as specified
  • Operation and maintenance manual
  • Crocodile clip (installed)
  • High capacity Lithium battery installed
