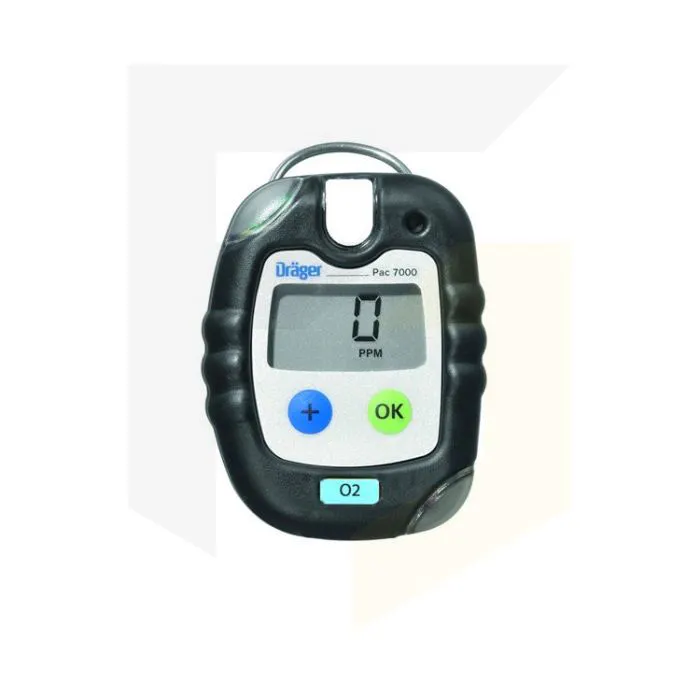

Drager Pac 7000 Oxygen (O2) Personal Gas Detector

PRODUCT CODE:
8318675
Please note: this product is now obsolete. See the Drager Pac 6500 as an alternative product.

Please note this product is currently discontinued.

Loading...

Product description

Drager - Pac 7000 Oxygen (O2) Personal Gas Detector

Please note: this product is now obsolete.  See the Drager Pac 6500 as an alternative product.

The Pac 7000 is a small and robust detector from Draeger and is ideal for applications in industrial settings.

This instrument is capable of detecting oxygen depletion levels and delivers fast and accurate results.

Designed for long-term operation, the Pac 7000 O2 monitor can make bump testing easier using the automatic bump test process.  This must be done in conjunction with the Drager Bump Test Station .

Bump tests can be configured to match specific safety regulations.  The Pac 7000 also has an automatic shut-off function which activates after a set period of time if function tests have not been carried out.

Key Features

  • Protective, impact-resistant rubber coating - impervious to corrosive chemicals
  • Optimised protection against electromagnetics
  • Adjustable crocodile clips allows monitor to be fastened  to clothing
  • Battery and sensor are easily replaceable on-site without additional equipment.
  • Replaceable water and dust filter
  • Immediate display of gas hazards
  • Adjustable data logger records all concentrations and events with respective dates and times (120 hours @ 1 data set per minute)
  • Downloadable data using Drager Pac Vision, Drager CC-Vision software or Drager GasVision software
  • Calibration options included in integrated menu
  • Password protection option for fresh air or span calibration
  • Gas Inlets at the top and front of device
  • Automated bump test process with Drager Bump Test Station
Specification
Range  (ppm) 0 to 25 Vol.-%
Resolution  (ppm) 0.1 Vol.-%
Response Time 10 secs
Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight 120 g; 3.8 oz.

Ambient Conditions
  • Temperature: -30 – 50 °C; -20 – 120 °F
  • Pressure: 700 – 1300 hPa
  • Humidity: 10 – 90 % r. h.
Battery Life

5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating IP 65 – projection of water

Alarms
  • Two-tone-alarm typical > 90 dB at a distance of 30 cm
  • Two alarm lights located at corners of monitor for 360° visibility
  • Adjustable TWA and STEL alarms
  • Low battery and error warning
Approvals
  • CE-Sign (89/336/EEC, 94/9/EC)
  • ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4
  • UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • IECEx EEx ia IIC, T4
  • Marine Equipment Directive 96/98/EC
  • Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included
  • Pac 7000 Detector with Drager XXS Sensor as specified
  • Operation and maintenance manual
  • Crocodile clip (installed)
  • High capacity Lithium battery installed
Range  (ppm) 0 to 100 ppm
Resolution  (ppm) 1 ppm
Response Time 15 secs
Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight 120 g; 3.8 oz.

Ambient Conditions
  • Temperature: -30 – 50 °C; -20 – 120 °F
  • Pressure: 700 – 1300 hPa
  • Humidity: 10 – 90 % r. h.
Battery Life

5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating IP 65 – projection of water

Alarms
  • Two-tone-alarm typical > 90 dB at a distance of 30 cm
  • Two alarm lights located at corners of monitor for 360° visibility
  • Adjustable TWA and STEL alarms
  • Low battery and error warning
Approvals
  • CE-Sign (89/336/EEC, 94/9/EC)
  • ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4
  • UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • IECEx EEx ia IIC, T4
  • Marine Equipment Directive 96/98/EC
  • Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included
  • Pac 7000 Detector with Drager XXS Sensor as specified
  • Operation and maintenance manual
  • Crocodile clip (installed)
  • High capacity Lithium battery installed
