PRODUCT CODE
DRAGER-PAC-8000

Detectable gases include: NO, CO2, Cl2, HCN, NH3, PH3, OV, NO2 and O3

* Required Fields

    £597.59 £497.99



    Additional services

    • £35.00
    Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.

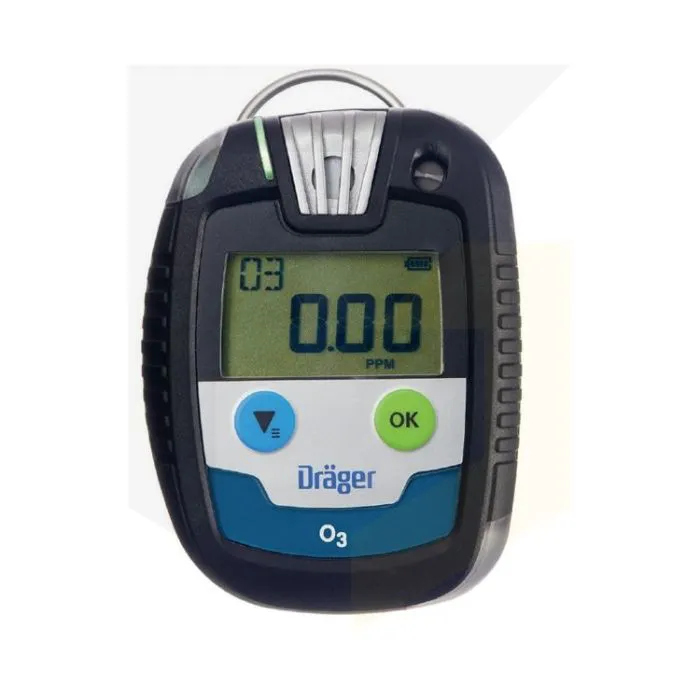

    Drager Pac 8000 Reusable Single Gas Detector

    Drager Pac 8000 Reusable Single Gas Detector

    The Drager Pac 8000 single gas detector is a reusable monitor which is capable of detecting over 29 different gases including nitric oxide (NO), carbon dioxide (CO2), chlorine (Cl2), hydrogen cyanide (HCN), ammonia (NH3), phosphine (PH3), organic vapour (OV), nitrogen dioxide (NO2), ozone (O3) and phosphine (PH3).

    This single gas detector uses powerful sensors with quick response times to ensure gas is detected as soon as possible.  It can be used under tough conditions and its IP68 rated housing is shock-resistant and chemical-resistant.

    The D-Light illuminates on the monitor to show that the unit has been tested and is ready for use.  The membrane protecting the protecting the sensor in the Pac 8000 can be easily changed and can help protect from foreign matter like dusts and liquids.  Each gas will have a different colour coded label to minimise the risk of mixing units and gases up.

    Key Features
    • Crocodile clip for secure fastening to clothing
    • Large display shows all information required including battery life
    • Triple alarm system (vibrating, visual, audible) including 360° alarm signal that can be seen from all sides
    • Bright backlight to ensure values can be read in the dark
    • Integrated event and data logger logs concentrations, dates and time
    • Automatic function tests, calibrations and bump tests can be carried out when using in conjunction with the Drager X-Dock
    Specifications

    Measuring Range

    CO - 0-2000ppm
    H2S - 0-100ppm
    O2 - 0-25 Vol. %
    SO2 - 0-100ppm
    NO - 0-200ppm
    CO2 - 0-5 Vol %
    HCN - 0-50ppm
    NH3 - 0-300ppm
    PH3 - 0-20ppm
    OV - 0-200ppm
    NO2 - 0-50ppm
    O3 - 0-10ppm
    CL2 - 0-20ppm

    Dimensions

    64 x 84 x 20mm

    Weight

    Approx. 106g (113g with clip)

    Battery Service Life

    2 years

    Air Pressure

    700 to 1300 hPa

    Air Humidity

    10 to 90% relative humidity, non-condensing

    Temperature

    -30 °C to +55 °C
    (briefly down to -40 °C for 1 hr, depending on sensor)

    Approvals

    cCSAus, IECEx, ATEX, CE
