Drager Polytron PIR 7000 - Fixed Gas Transmitter

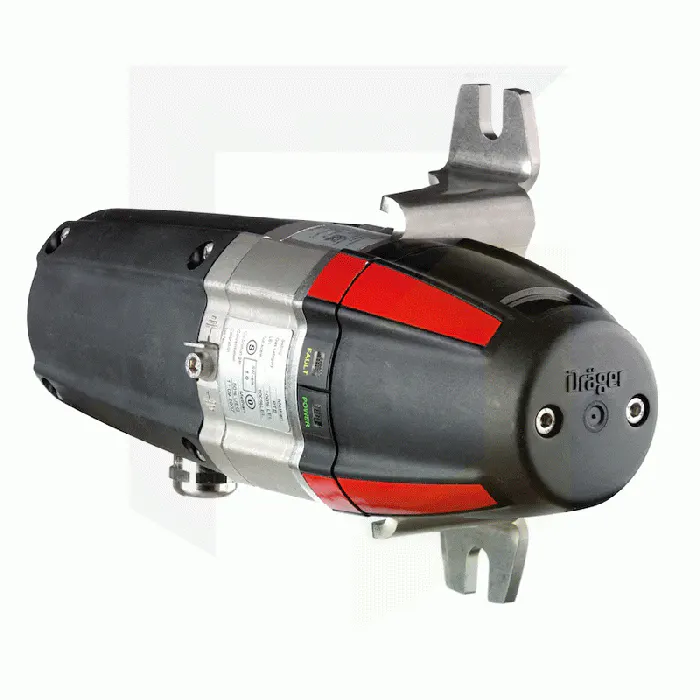

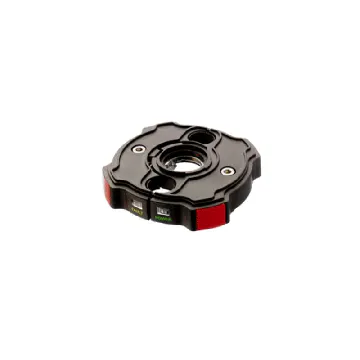

The Dräger PIR 7000 is an explosion-proof point infrared gas detector for continuously monitoring combustible gases and vapours. This detector is designed for use in the harshest industrial settings, such as offshore installations, thanks to its stainless steel SS 316L housing and drift-free optics.
The Dräger PIR 7000's adjustable response mode lets the end user select between "normal" and "high speed" response times - subject to the application.
Certified to SIL 2 and developed in line with EN61508, this PIR 7000 offers a new understanding of reliability.
- Extended temperature range of up to + 77 °C / + 170 °F
- Hermetically sealed SS 316 L enclosure
- Continuous self-testing in the context of the IEC/EN 61508 standard
- Dust approval for zone 21 and 22
- Double-compensating, non-imaging optics (using 4-beam technology)
- Single cable multidrop capability using HART® communication
- Configurable gas library – methane, propane and ethylene fixed; up to 10 additional substances can be uploaded
Type |
Explosion proof gas transmitter with infrared sensor technology |
|
Principle of Operation |
Temperature-compensated infrared absorption, 4-beam technology |
|
Gases and Ranges |
Methane, propane, ethylene 0 to 20…100 %LEL
Methane 0 to 100 % vol.
Further substances and measuring ranges on request |
|
Measuring performance (type 334, methane, 0 to 100 %LEL) |
Digital resolution
Repeatability
Response time t0…90
Long-term drift |
0.5 %LEL
≤ ± 1 %LEL
≤ 4 seconds (“normal response”)
< 1 second (“fast response”)
≤ ± 1 %LEL after 12 months |
Electrical data |
Output signals
Fault signals
Beam block warning signa
Maintenance signal
Power supply
Power consumption |
4 to 20 mA, HART®
≤ 1.2 mA (configurable)
2 mA (configurable)
3 mA (configurable)
13 to 30 V DC, 3-wire
5.6 W (typical) |
Ambient conditions |
Temperature
Humidity
Pressure |
– 40 to + 77 °C / – 40 to + 170 °F (operating)
– 40 to + 85 °C / – 40 to + 180 °F (storage)
0 to 100 %RH
700 to 1300 hPa / 23.6 to 32.5 inch Hg |
Enclosure |
Material
Connecting thread
Weight
Dimensions
Ingress protection |
Stainless steel SS 316L
M25 or ¾'' NPT
2.2 kg (without accessories)
160 mm x Ø 89 mm / 6.3 '' x Ø 3.5 '' IP 66 and IP 67, NEMA 4X
|
Approvals |
ATEX |
II 2G Ex d IIC T6 / T4 Gb (-40 to +40 °C / +80 °C)
II 2D Ex tb IIIC T80 °C / T130 °C Db IP65 (-40 to +40 °C / +80 °C) |
IECEx |
Ex d IIC T6 / T4 Gb (-40 to +40 °C / +80 °C)
Ex tb IIIC T80 °C / T130 °C Db IP65 (-40 to +40 °C / +80 °C) |
|
UL (Classified) |
Class I, Div. 1, Groups A, B, C, D /
Class I, Zone 1, Group IIC
Class II, Div. 1, Groups E, F, G |
|
CSA (C-US) |
Class I, Div. 1, Groups B, C, D
Class II, Div. 1, Groups E, F, G |
|
|
Safety Integrity Level |
SIL2 certified by TÜV (EN 61508, EN 50402) |
|
CE mark: electromagnetic compatibility (directive 89/336/EEC) |
