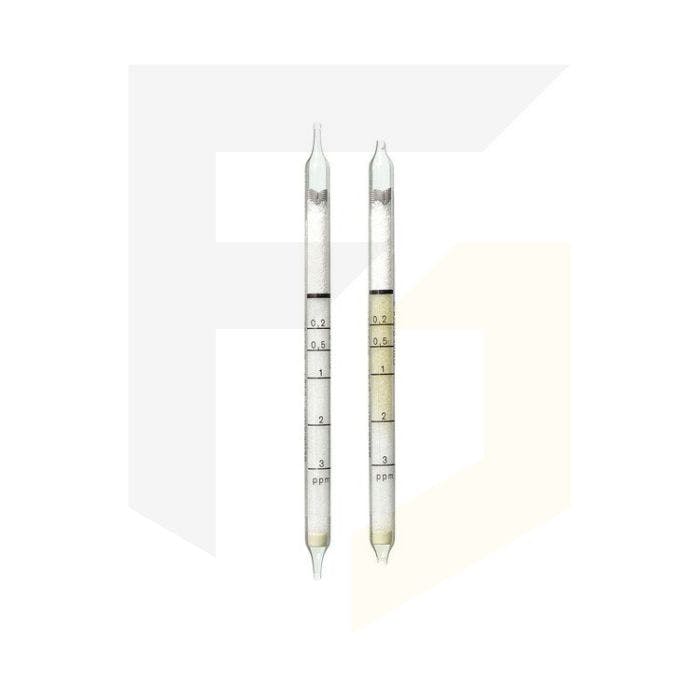

Drager Short Term Detection Tubes - Chlorine 0.2/a (Pack of 10)

PRODUCT CODE:: CH24301

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

£82.85 inc VAT

£69.04

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Drager Short Term Detection Tubes - Chlorine 0.2/a (Pack of 10)

These chlorine short-term detection tubes (0.2/a) have a measurement range of 0.2 to 30 ppm. In addition to Chlorine they may also detect Bromine and Chlorine Dioxide.

The Drager tubes come in a pack of 10 and have a shelf life of 2 years.

The Drager Gas Detection Pump (Accuro) is compatible with the short-term gas detection tubes. You can purchase this product by clicking here .

Key Features

Obtain readings from hard to reach places with the tubes, pump and accessories
Carry out measurements on the spot
10 seconds to 15 minutes is the potential time frame for readings to be taken and is dependent on the type of tube used
Pre-entry checks and confined space entry are two applications which can use tubes
Additional applications may include variations in concentration levels and also contamination of breathing areas

Specification

Application Range
Standard Measuring Range:	0.2 to 3 ppm / 3 to 30 ppm
Number of Strokes n:	10 / 1
Time for Measurement:	approx. 3 min / 20 sec.
Standard Deviation:	± 10 to 15 %
Color Change:	white --> yellow orange

Ambient Operating Conditions
Temperature:	0 to 40 °C
Absolute Humidity:	< 15 mg H2O / L

Reaction Principle
Cl2 + o-tolidine --> yellow orange reaction product

Cross Sensitivity
Bromine is indicated with the same sensitivity, but with a paler discoloration. Chlorine dioxide is indicated with different sensitivity. Nitrogen dioxide is indicated as well, but with a paler discoloration and lower sensitivity.
