Drager X-am 2500 Gas Detection Kit Ex
  • EX
Drager X-am 2500 Gas Detection Kit Ex

Product Code - 3360229

exc VAT £447.00 inc VAT £536.40
OR
Description / Features / Spec

Description

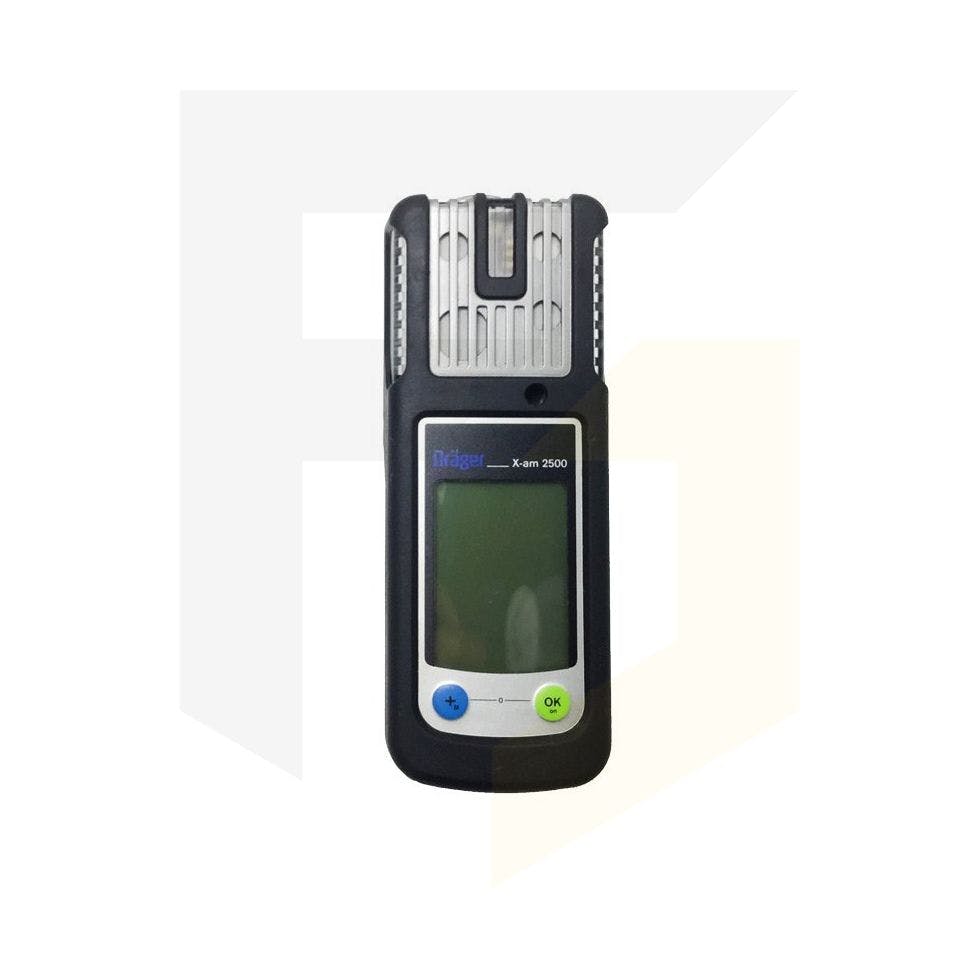

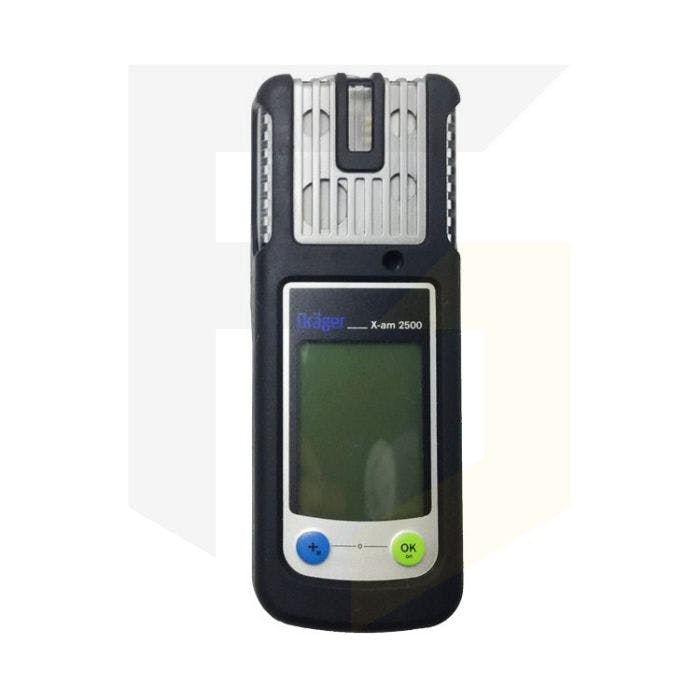

Drager X-am 2500 Gas Detection Kit Ex, with Power Pack & Charger

The Drager X-am 2500 is a specially developed multi gas detector and is ideal for use in industry work, mining and refineries.
This particular model features a combustible gas Ex sensor which has a high resistance to silicone and hydrogen sulphide.

The monitor has the ability to detect up to four different gases using durable electrochemical sensors which are fully developed by Drager for high performance.

The X-am 2500 has been designed to be used safely in environments subject to explosion hazards and can be securely worn on clothing due to the robust integrated crocodile clip.

The Drager Bump Test Station and X-dock testing and calibration station can both be used with the X-am 2500 to carry out functional tests and bump tests.  Both are available from Frontline Safety.

Key Features

  • No sensitivity to electromagnetic radiation or wireless devices
  • Datalogging capability - > 1000 h with 4 gases at a recording interval of 1 value per minute
  • Datalogging records retrievable using an infrared interface
  • Long service lives on most sensors
  • External pump available for leak detection in clearance measurements for tanks or shafts
  • Switching from diffusion mode to pumped mode can be done quickly and easily without tools
  • Simple two-button control panel and easy menu navigation
  • Gas inlets featured above and at the side of the instrument

Specifications

Range (ppm)
  • 0 to 100% LEL
  • 0 to 5 Vol. -% CH4
Resolution (ppm) 1% LEL
Response Time (T90) 10 sec.
Dimensions 48 x 130 x 44 mm; 1.89 x 5.12 x 1.73 in.
Weight 220 - 250 g; 7.8 - 8.8 oz.
Ambient Conditions
  • Temperature: -20 - +50 °C; -4 - 122 °F
  • Pressure: 700 - 1300 mbar
  • Humidity: 10 - 95% r.h.
Battery Life >12 h (alkaline and NiMH), >13 h with NiMH HC, > 250 h w/o Ex Sensor with alkaline batteries (typical at 25° C)
Charging Time  < 4 hrs
IP Rating IP 67 – water and dust resistant
Alarms
  • Visual (360°)
  • Audible (multi-tone >90 dB at 30cm)
  • Vibrating
Warranty 3 years for instrument and sensors
Certifications
  • ATEX I M1 Ex ia I Ma, II 1G Ex ia IIC T3 Ga, I M2 Ex d ia I Mb, II 2G Ex d ia IIC T4/T3 Gb
  • EN 60079-29-1:2007 (Methane to Nonane); EN 50104 (2002)+A1(2004) O2; EN 45544 CO & H2S; EN 50271:2001 (Software and Documentation)
  • CSA Class I Div. 1 Group A, B, C, D T.-Code T4/T3; A/Ex ia IIC T3 /Ga; A/Ex d ia IIC T4/T3 /Gb
  • IECEx Ex ia I Ma; Ex ia IIC T3 Ga; Ex d ia I Mb; Ex d ia IIC T4/T3 Gb
  • CE-mark Electromagnetic Compatibility (Directive 2004/108/EC); ATEX (Directive 94/9/EC)
  • MED Marine Equipment Directive 96/98/EC
What's Included
  • Drager X-am 2500 Monitor
  • Cat Ex 125 PR Sensor
  • Crocodile clip
  • NiMH rechargeable power pack and charger
  • Operation and Maintenance manual
