Drager X-am 8000 Multi Gas Detector
Drager X-am 8000 Multi Gas Detector Drager X-am 8000 Multi Gas Detector

Product Code -

Price From: £1,838.77 exc VAT £1,838.77 inc VAT £2,206.52

Price as configured: exc VAT £0.00 inc VAT £0.00

You can find popular configurations on our website, however if you require specific gases then please contact our Sales Team on 0141 771 7749 for a price and availability.

Price as configured: exc VAT £0.00 inc VAT £0.00

Availability: In stock

Description / Features / Spec

Description

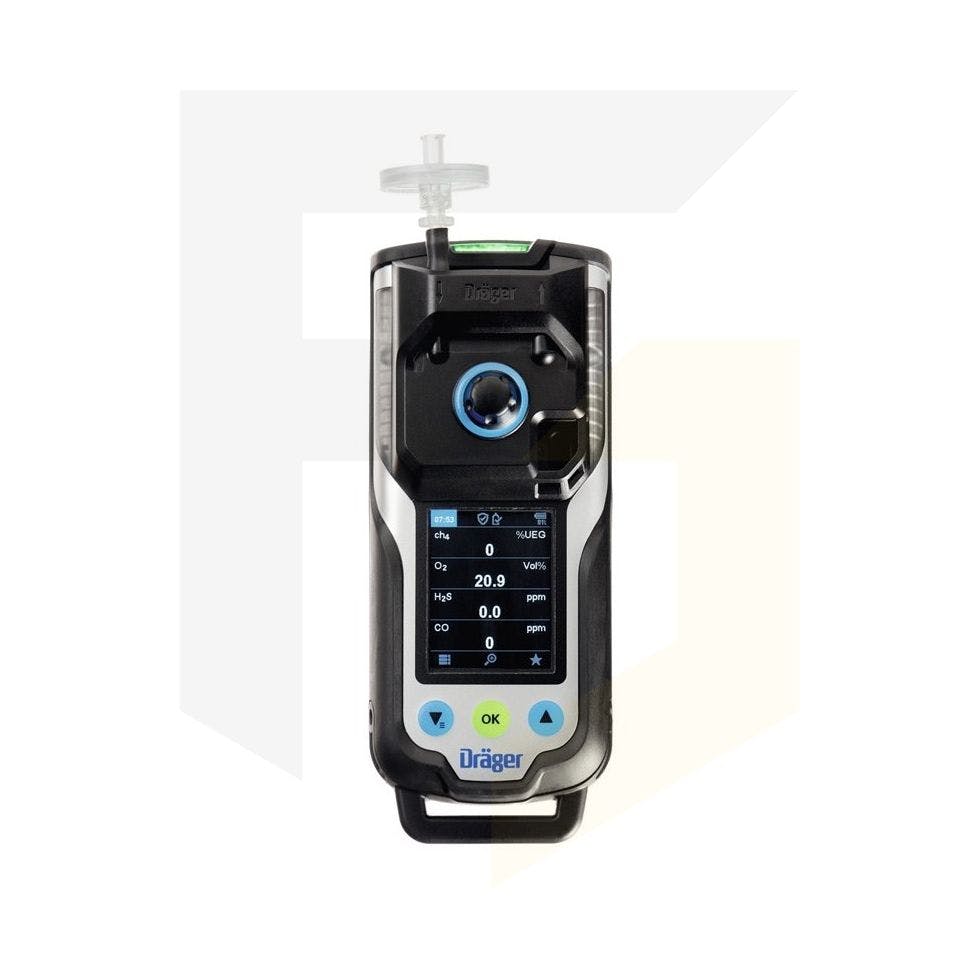

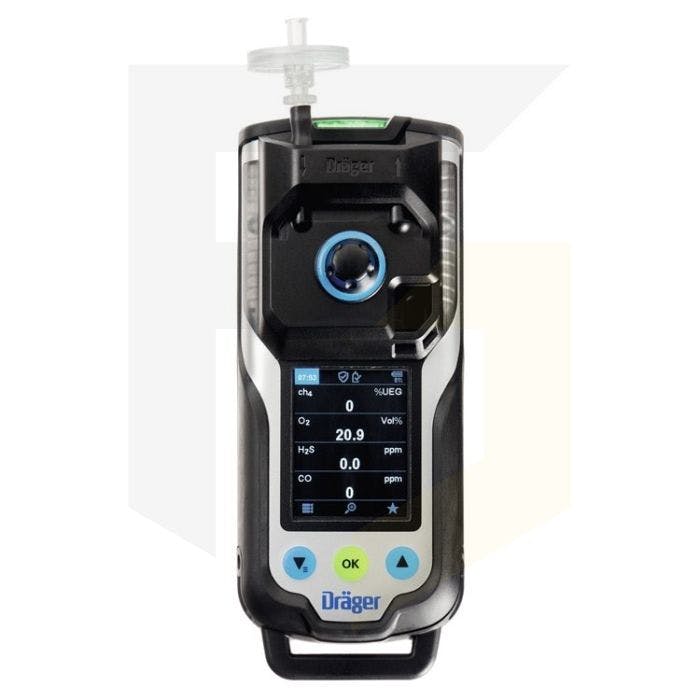

Drager X-am 8000 Multi Gas Detector

The Drager X-am 8000 is a multi gas detector that's capable of detecting up to 7 gases.  The unit can be placed in either pump or diffusion mode which makes it suitable for confined space applications.

It can house 5 sensors including LEL, IR LEL, CO2, VOC (PID), O2, CO, H2S, NO, NO2, SO2, PH3, HCN, CL2 and H2 amongst others.  Using a pre-tube, the X-am 8000 can be used for benzene-specific measurements and also provides assistance for clearance measurements and leak detection.
The glowing green D-light (which is optional) can be used to indicate that the X-am has been tested and is ready for use.  The pump in the X-am 8000 is very powerful and can be connected with hoses of up to 45m in length.  The pump adapter will allow the use to switch between pump and diffusion mode.  This provides the advantage of only needing to operate the pump when it's actually needed, thus saving energy and reducing wear and tear.

See below available configurations and click 'Read More' to expand the list:

8325800D-A-P-H Drager X-am 8000 Diffusion (CatEx/H2S-LC-CO-LC/O2)
8325800P-A-P-H Drager X-am 8000 Pumped (CatEx/H2S-LC-CO-LC/O2)
8325800D-A-P-H-U Drager X-am 8000 Diffusion (CatEx/H2S-LC-CO-LC/O2/SO2)
8325800P-A-P-H-U Drager X-am 8000 Pumped (CatEx/H2S-LC-CO-LC/O2/SO2)
8325800D-A-P-H-G Drager X-am 8000 Diffusion (CatEx/H2S-LC-CO-LC/O2/PID HC)
8325800P-A-P-H-G Drager X-am 8000 Pumped (CatEx/H2S-LC-CO-LC/O2/PID HC)
8325800D-A-P-H-Z Drager X-am 8000 Diffusion (CatEx/H2S-LC-CO-LC/O2/NH3)
8325800P-A-P-H-Z Drager X-am 8000 Pumped (CatEx/H2S-LC-CO-LC/O2/NH3)
8325800D-A-P-H-AA Drager X-am 8000 Diffusion (CatEx/H2S-LC-CO-LC/O2/CO2)
8325800P-A-P-H-AA Drager X-am 8000 Pumped (CatEx/H2S-LC-CO-LC/O2/CO2)

Key Features

  • Easy-to-read colour display with zoom function
  • Inductive charging
  • Optional Bluetooth module allows connection to the CSE Connect App (FOR ANDROID)
  • Smart Assistant calculates the necessary flooding time for the X-am and probe
  • Traffic light system alerts the user to various issues (i.e. gas, low battery)
  • Durable two-component housing
  • High contrast colour display
  • Triple alarm system (audible, visual, vibrating)
  • IP67 Rated
  • 12MB of storage
  • Additional accessories available

Specifications

Measuring Ranges

See Datasheet for measuring ranges and resolutions

Size

179 x 77 x 42 mm

Weight

Approx. 550g (depending on sensor configuration) with pump

Temperature

-20° C to 50° C

Relative Humidity

10 to 90% (short-term up to 95%) r.h.

Pressure

700 to 1300 hPa

Energy Supply

Lithium-ion battery, rechargeable, inductive charging

Operating Times (Diffusion)

  • with CatEx + 3 EC sensors - typically 24 hours
  • With IR + 3 EC Sensors - typically 22 hours
  • With 3 EC Sensors - typically 120 hours
  • With CatEx, PID + 3 EC sensors - 17 hours
  • With IR, PID + 3 EC sensors - 16 hours
  • With CatEx, IR- + EC sensors - 14 hours
  • PID only - Typically 42 hours

Charging Time

 Typically 4 hours after use during a shift of max. 10 hours

Start-up Times

Typically <60 seconds for standard sensors

Approvals

  • ATEX - I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
  • EAC - PO Ex da ia I Ma X, Ex da ia IIC T4 Ga X
  • CE labelling
  • See datasheet for additional approvals

Warranty

  • Instrument: 3 years
  • Power Supply: 1 year
  • Sensors: see DrägerSensor ® & Portable Instruments Handbook
