Drager XXS NH3 (0-300ppm) Sensor

PRODUCT CODE:: 6810888

£537.16 inc VAT

£447.63

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

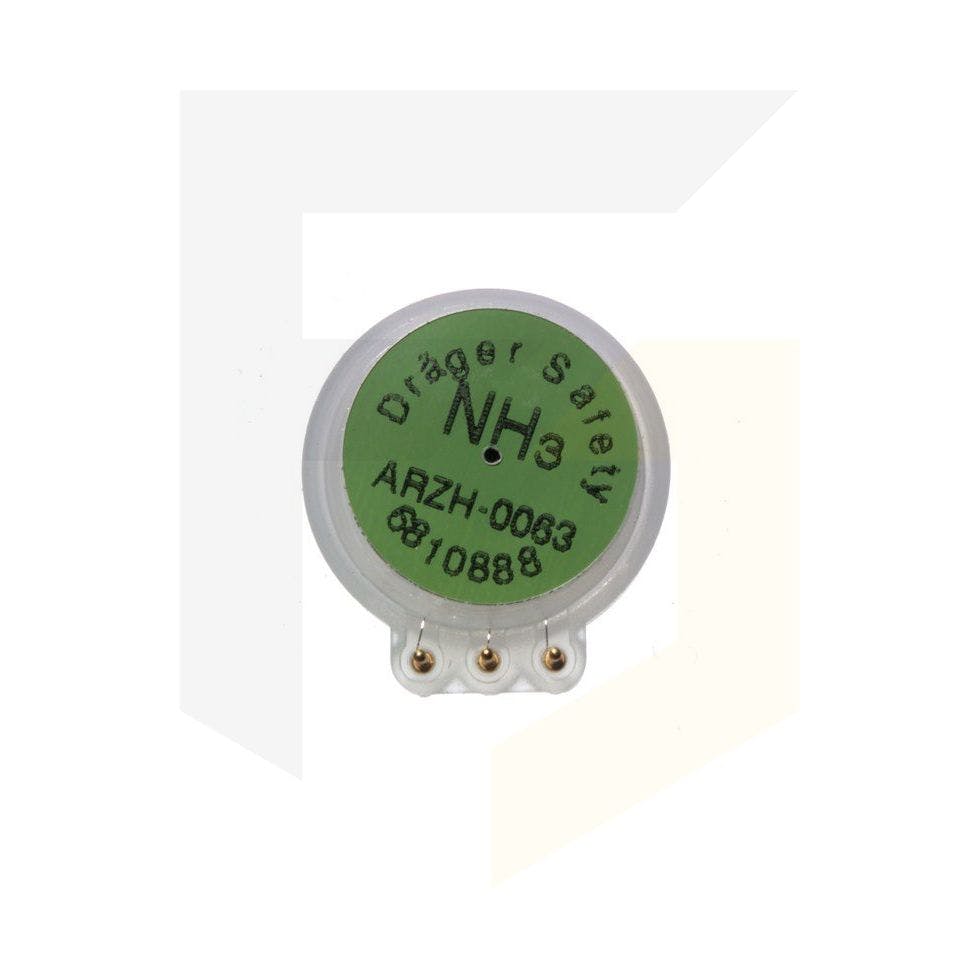

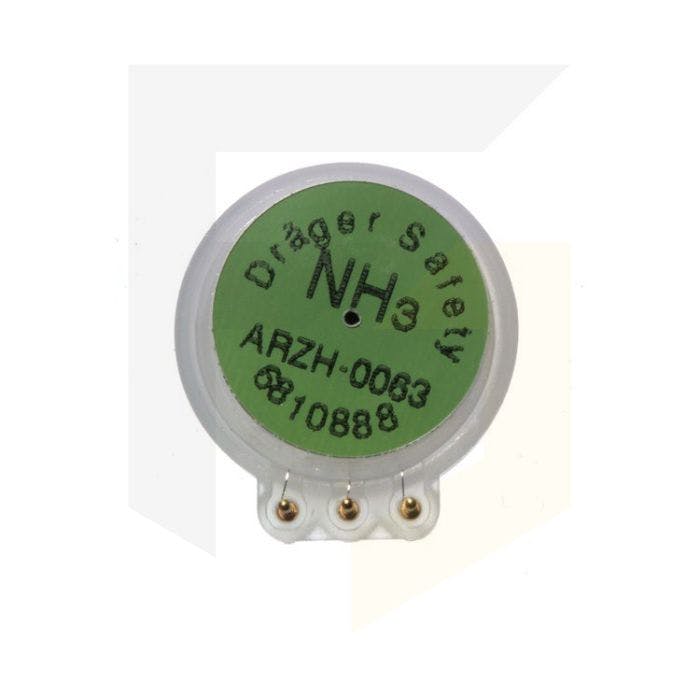

Drager XXS NH3 (0-300ppm) Sensor

This Ammonia sensor (NH3) is a DragerSensor XXS for Drager Safety instruments such as the Pac 7000, the X-am 5600 and the X-am 5000.

This particular sensor is suitable for the following industries: food and beverage, poultry farming, power generation, inorganic chemicals, fertilizer production, hazmat, fumigation, metal processing, petrochemical and pulp and paper.

It has a measurement range of 0 to 300 ppm.

Key Features

Comes with a one year guarantee
Features a fast response time and excellent repeatability

Specification

Detection Limit	4 ppm
Resolution	1 ppm
Response Time	≤ 10 seconds at 20°C (T90) or 68°F
Measurement accuracy	Zero Point: ≤ ± 4 ppm Sensitivity: ≤ ± 3% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 5 ppm/year Sensitivity: ≤ ± 2% of measured value/month
Warm-up time:	≤ 12 hours
Ambient conditions	Temperature: (-40°C to 50°C)(-40 to 122°F) Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: ≤ ± 5 ppm Sensitivity: ≤ ± 5% of measured value
Influence of Humidity	Zero Point: ≤ ± 0.1 ppm/% RH Sensitivity: ≤ ± 0.2% of measured value/% RH
Test Gas	approx. 50 to 300 ppm NH3
