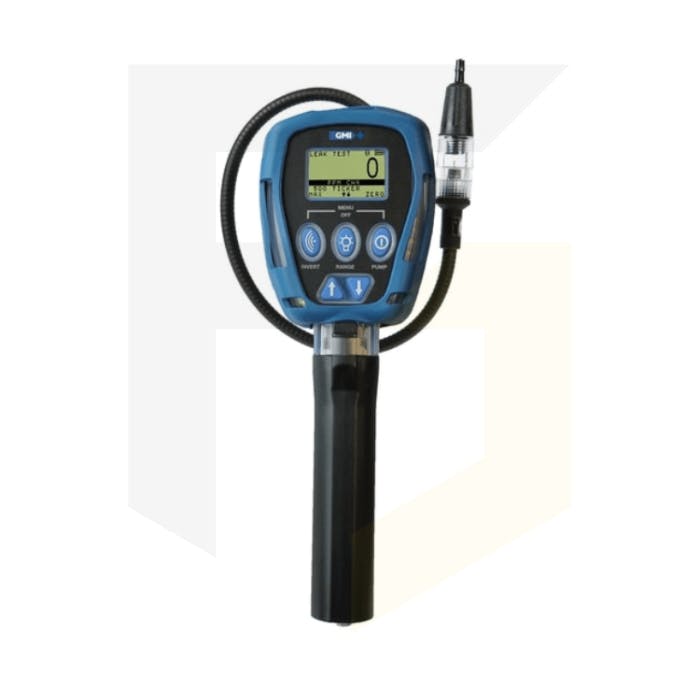

GMI GT Series Gas Analysers
The GT Series is a selection of handheld gas detectors that combines high standards of quality and durability with cutting-edge technology.
This unit is specifically for the gas sector and includes everything a service technician could want. Its uses are: carbon monoxide, purge, sniffer pressure leak tightness, confined area space entry, barhole testing.
- Automatic and manual data logging
- Flashlight and pressure range
- Ticker (Geiger) indicator on ppm range (visual and audible)
Dimensions |
290 x 95 x 43 mm / 11.4 x 3.7 x 1.7” (Excl. Probe) |
||
Weight |
0.78 kg / 1.7 lbs (Incl. Probe and Batteries) |
||
Display |
LCD with backlighting |
||
Humidity |
0-95% R.H. non-condensing |
||
Temperature |
-20o C to +50o C (-4o F to +122o F) |
||
Alarms |
High visibility LEDs on both sides of instrument 85 db audible alarm
All alarms user programmable via password protected menu |
||
Datalogging |
1 week @ 1 minute interval (assuming a 7hr of operation per day) |
||
Sampling |
Integral pump with pressure sensor for flow fail detection. Sample path is protected by a hydrophobic filter.
Response Time T90 < 30 seconds. |
||
Battery |
3 ‘C’ type batteries – LR14 alkaline or rechargeable |
||
Battery Life |
8 hours continuous alkaline or rechargeable |
||
Construction |
High impact polycarbonate ABS blend |
||
Rating |
IP54 (Dust protected and splashproof) |
||
Certification
Warranty |
UL 913 Class I, Div 1 Groups C, D CSA Class I, Division 1, Groups C and D C22.2 N°152 ATEX II 2G EEx ia d IIB T3 IECEx Ex ia d IIB T3 CPA
2 Year Warranty |
||
Gas |
Range |
Increm |
Or Type |
O2 |
0-25% |
0.1%
|
Electrochemical |
H2S |
0-100 ppm |
1 ppm |
Electrochemical |
CO |
0-2000 ppm |
1 ppm |
Electrochemical
|
Dual Tox (CO/H2S) |
0-2000 ppm / 0-100 ppm |
1ppm
|
Electrochemical
|
CH4 |
0 - 10 000 ppm |
1 ppm |
Semiconductor |
CH4 |
0 – 100 % LEL |
1 % |
Catalytic Bead |
CH4
|
0 – 100 % Vol |
1% |
Thermal Conductivity |
Water Gauge |
0-60in. H₂O or 0 to 150 mBar
|
0.1in. 1 mBar |
Differential Pressure Transducer |
