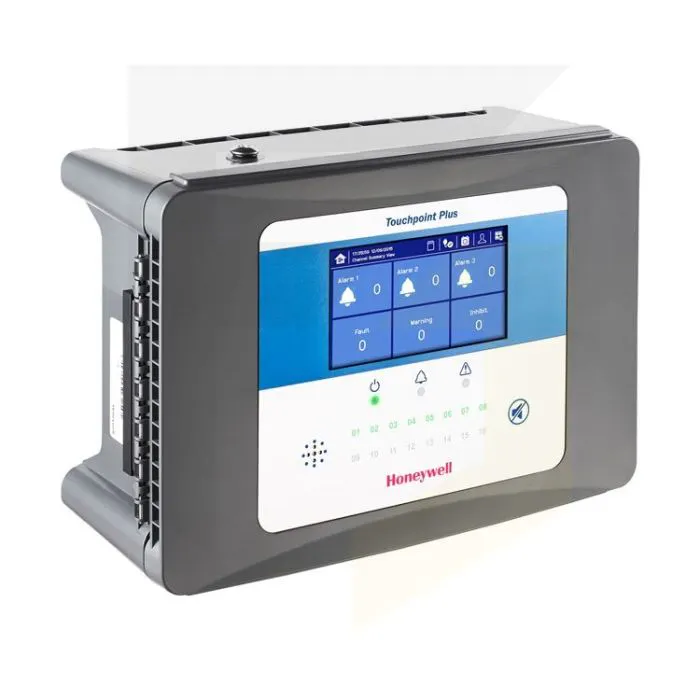

Honeywell TouchPoint Plus Controller
Choose from the Touchpoint Plus Base Unit or the Touchpoint Plus Expansion Unit. To order a complete unit specify which of these units you require, AC or DC power, input options, relay options, output option, battery backup preference and the communication preferences. The unit is wall mounted.
The Touchpoint Plus controller is a configurable system that can be wall mounted and can support up to eight channels of gas detection. In terms of inputs it accepts from this from a 2 or 3-wire mA or mV field device. The Touchpoint Plus controller includes a comprehensive set of outputs as standard. This includes common alarms and dedicated devices for remote audio-visual indicators.
For more information on the configuration of this fixed gas system and the various options available then speak to our Fixed Gas Detection Team on 0141 771 7749 and check out the product datasheet in the downloads tab below.
Available Options Include:
-
TPPLBAWA2NNNNNN - Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA inputs, including Master 1, Master 2 and Master Fault
-
TPPLBAWA4NNNNNN - Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA inputs, including Master 1, Master 2 and Master Fault
-
TPPLBAWA8NNNNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, including Master 1, Master 2 and Master Fault
-
TPPLBAWA8DNBNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, and with battery backup
-
TPPLBAWA8D8BNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, 8x repreated mA outputs, and with battery backup
-
TPPLBAWA8DNNNRN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, 24 programmable relays, with Modbus TCP and Web monitoring
-
TPPLBAWV2NNNNNN - Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mV inputs, including Master 1, Master 2 and Master Fault.
-
TPPLBAWV4NNNNNN - Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mV inputs, including Master 1, Master 2 and Master Fault.
-
TPPLBAWV8NNNNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, including Master 1, Master 2 and Master Fault.
-
TPPLBAWV8D8NNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, and with 8x repreated mA outputs
-
TPPLBAWV8D8BNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mV inputs, 24 programmable relays, 8x repreated mA outputs, and with battery backup.
-
TPPLBAWD4NNNNNN - Touchpoint Plus base control unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 2x mA and 2x mV inputs, including Master 1, Master 2 and Master Fault
-
TPPLBAWD8NNNNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, including Master 1, Master 2 and Master Fault
-
TPPLBAWD8D8NNNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 24 programmable relays, and with 8x repreated mA outputs.
-
TPPLBAWD8SNBRNN - Touchpoint Plus base Control Unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 4x mA and 4x mV inputs, 12 programmable relays, with battery backup and with Modbus RTU.
-
TPPLEAWA8SNNNNN - Touchpoint Plus expansion unit for up to 8 channels with AC supply and wall mounted enclosure. Supplied complete with 8x mA inputs, and with 12 programmable relays
- Can support an additional 8 channels through an optional expansion pack
- Intuitive system which is easy to operate and configure
- Multilingual interface eases use and reduces the need for training
- Traffic light status indicator provides clarity of status from a distance
|
For full specifications please refer to the datasheet, found in the downloads tab, or call our Fixed Gas Detection Team |
Honywell Touchpoint Plus Base Unit |
What’s Included? As standard, comes with pre-assembled I/O modules, 7” colour LCD touch screen, industrial enclosure, 150W power supply (only for the AC version), backplate, 13 cable entries with blanking plugs, earth terminals, certificates of inspection and test, tool set for access security screw and the instruction manual.
|
Honeywell Touchpoint Plus Expansion Unit |
What’s Included? |
Capacity |
Up to 8 channels with base unit, up to 16 channels with expansion unit |
Type of Inputs |
2 or 3 wires, mA, mV, max. 15W per channel, max 40W total (with dedicated A/V drive) / 68W total (without dedicated A/V drive) |
Size (wall-mounted version) |
426 mm × 300 mm × 156 mm |
Housing Material |
Polycarbonate ABS |
Weight |
Max 8.5 kg (18.7 lb), max 17 kg (37.4 lb) with expansion unit |
Approvals |
|
