MSA ALTAIR 5X Gas Detector (Colour) - Methane / O2 / NO2 / CO & H2S

PRODUCT CODE:
10152452
MSA ALTAIR 5X Gas Detector (Colour) - Methane / O2 / NO2 / CO & H2S
£4,018.20 inc VAT
£3,348.50

Additional services

  • £50.00
Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.
Loading...

Product description

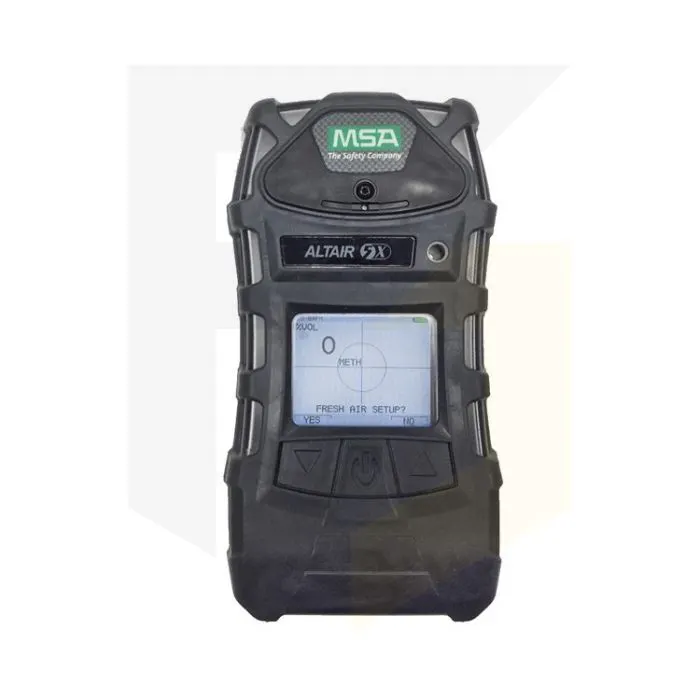

MSA ALTAIR 5X Gas Detector (Colour) - Methane / O2 / NO2 / CO & H2S

The MSA Altair 5X will simultaneously detect up to six gases and is ideal for hazardous situations.

This particular multi gas detector has a colour display and can detect the following gases: Methane (CH4), Oxygen (O2), Nitrogen Dioxide (NO2), Carbon Monoxide (CO) and Hydrogen Sulphide (H2S).

Exclusive features of the Altair 5X make the instrument ideal for confined space applications.  MotionAlert activates when a user becomes disabled or motionless and shows others where the user is situated.  InstantAlert allows you to manually alert others to a hazardous situation.

Key Features

  • Polycarbonate robust housing – tested to survive a 10 ft drop
  • No external accessories needed for the pump function as it is integrated
  • Glove-friendly buttons
  • Fully compatible with MSA Galaxy GX2 and MSA Link Pro
  • 18 languages available
  • Adjustable back-lit display and datalogging function (200 hrs minimum)
  • Event log records 1000 events as standard
Specification
Range
  • 0 - 100% Vol CH4
  • 0 – 30 % Vol O2
  • 0 – 20 ppm NO2
  • 0 – 2000 ppm CO
  • 0 – 200 ppm H2S
Resolution
  • 1% Vol CH4
  • 0.1% Vol O2
  • 0.1 ppm NO2
  • 1 ppm H2S
  • 1 ppm CO
Dimensions 6.69” x 3.49” x 1.79”
Weight 1 lb (without IR sensor)
Alarms
  • Audible (>95 dB at 1 ft)
  • Vibration
  • Visual (2 ultra-bright LEDs)
Battery Rechargeable li-ion or AA alkaline
Run Time 20 hours @ room temperature
Charging Time <6 hours
Operating Period -20°C to +50°C; -40°C to +50°C – Short Period Operation
Humidity 15 – 90 % RH non-condensing
IP Rating IP-65
Standard Warranty
  • 3 year including CO/H2S/LEL/O2/SO2/IR Sensors
  • 2 years including NH3 and Cl2
  • Other sensors 1 year
Approvals
  • USA / Canada ETL, Canada CSA
  • ATEX Directive 94/9/EC
  • ANZEx Australia/New Zealand - Test Safe Australia
  • IECEx - Test Safe Australia
  • ISO9001
  • UL - 110412_JTPD_E190105
  • CSA - 141204_CSA_2072894_70013697
  • EU - FTZU - FTZU09E0026, FTZU - FTZU09E0027, FTZU - FTZU09ATEX0006X, FTZU - FTZU08ATEX0340X, Marine (DGUV) - 120224_DGUV_213.050
What's Included
  • Altair 5X Detector
  • Charging cradle
  • Instruction manual
  • Calibration certificate
  • Tubing and filters
  • Screwdriver
Reviews
Product Questions
Carbon Monoxide (CO) Hydrogen Sulphide (H2S) Lower Explosive Limit (LEL) Methane (CH4) Nitrogen Dioxide (NO2) Oxygen (O2)
