PRICES START FROM £1182.29 - ADD REQUIRED SENSORS BY SENDING AN ENQUIRY

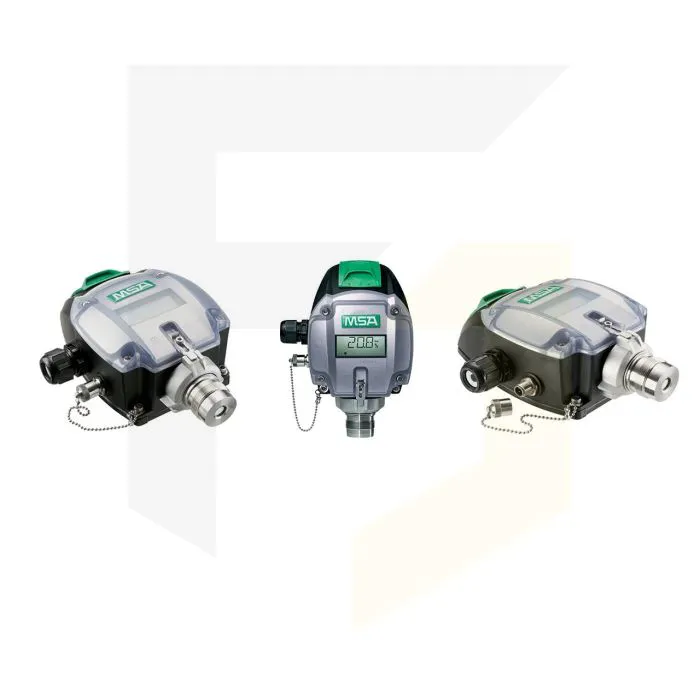

The MSA PrimaX I is a gas transmitter that detects toxic gases and oxygen and is suited for both indoor and outdoor locations. The PrimaX I is housed in a plastic enclosure in comparison to its counterpart the PrimaX P that is housed in an aluminium enclosure. With a built-in keypad, a large LCD screen that is easily read and can be attached to an integral mounting plate the installation of this device is quick and simple.
The large LCD screen displays all the information such as: the menu, error messages and the concentration of gas, which is presented in plain text increasing the ease of use. The PrimaX I uses a 4-20 mA output signal with the option of 2 relays as well as an optional HART digital communication.
The PrimaX I can be used in settings such as laboratories, power plants, chemical plants and many other industry locations. The sensor can be easily accessed via the sensor bayonet cup and the sensor can be changed on site while under power, preventing the need to shut down the potentially hazardous area. A massive benefit for any user.
OUR DATA SHEETS BELOW PROVIDE A MORE IN DEPTH LOOK AT THE PRIMAX I.
PrimaX I Data Sheet
PrimaX I Quick Start Guide
PrimaX I Operating Manual
- Robust nylon housing (IP66 Rated)
- Intrinsically safe to detect toxic gases or oxygen
- Plug-in replacement sensors
- Calibration performed easily due to the built-in keypad
- 2 wire connection
- Calibrate automatically or manually
Oxygen & Toxic |
Electrochemical |
Typical response time |
τ₉₀ ≤ 20 sec. (Combustible) τ₉₀ ≤ 25 sec. (O₂) τ₉₀ ≤ 20 sec. (CO) τ₉₀ ≤ 12 sec. (H₂S) |
Sensor operating life |
up to 3 years in clean air |
Operating temperature* |
–40 °C to +70 °C (–40 °F to +160 °F) |
Operating humidity range |
15% to 90% RH non-condensing |
Operating pressure range |
80–120 kPa |
Supply voltage |
19.2 to 28 VDC (24 VDC nominal) |
Output signal |
4–20 mA (max. load 300 ohm) |
Power consumption |
0.7 watt typical at 24 VDC |
Terminals |
2 wire – up to 2.5mm2 |
Display |
Alphanumeric LCD |
HART Digital protocol |
Diagnostics and confirmation |
Weight |
1.2 kg (2.6 lbs) |
Dimensions |
220 x 162 x 81 mm (H x W x D) |
Material |
Anti-static reinforced nylon |
Cable gland thread |
M25 x 1.5 mm2 |
Approvals |
ATEX/IECEx Gas – II 1G Ex ia IIC T4 Ga Dust – II 2D Ex ia IIIC T130°C Db EN 50104, EN 45544
UL Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups F, G; Class III
Other Approvals CSA, CMC, CCCF, EAC, INMETRO, HART registered, BG RCI |
Safety Integrity Level |
SIL 2 |
