MultiRAE Lite Pumped / 10.6 eV PID / LEL / CO/H2S / SO2 / O2 (PGM-6208)
  • LEL
MultiRAE Lite Pumped / 10.6 eV PID / LEL / CO/H2S / SO2 / O2 (PGM-6208)

Product Code - MAA3-A2C1R3E-020

exc VAT £1,399.00 inc VAT £1,678.80
OR

Additional services

Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.
Description / Features / Spec

Description

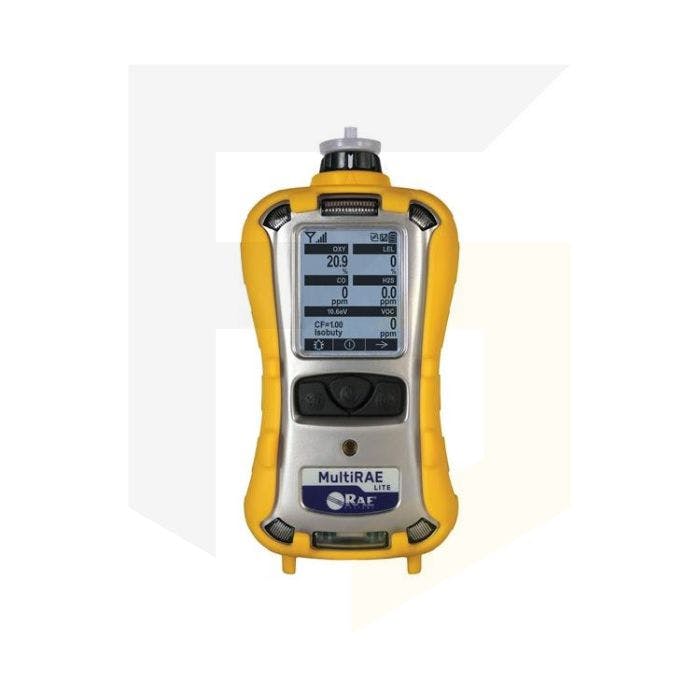

MultiRAE Lite Pumped / 10.6 eV PID / LEL / CO/H2S / SO2 / O2 (PGM-6208)

This particular detector is used to detect VOCs, combustibles, carbon monoxide and hydrogen sulphide, sulphur dioxide and also oxygen.

The MultiRAE Lite is a portable multi gas detector with an optimal one-to-six gas monitoring solution for personal protection and multi-gas leak detection applications. It comes in both pumped and diffusion versions and has the broadest range of sensor options in its class.

The RAE multi gas detector can be configured to exactly meet the needs and compliance requirements of various countries, industries and applications such as personal protection and fire overhaul.

The MultiRAE Lite is easily maintainable with replaceable sensors, pump and plug-and-play battery. There are over 25 interchangeable sensor options, including PID for VOCs, NDIR and catalytic for combustibles and NDIR for CO2. These intelligent sensors store calibration data so they can also be swapped in the field if needed.

The RAE multi gas detector has a large graphical display which is easy to use through the icon-driven user interface.

Key Features

  • 30 interchangeable sensor options, including PID6 for VOCs, NDIR and catalytic for combustibles, and NDIR for CO2
  • Intelligent sensors store calibration data, so they can be swapped in the field
  • Large graphical display with easy-to-use, icon-driven user interface
  • Continuous datalogging (6 months for 5 sensors, 24x7)

Specifications

Gas 1 PID (VOC 10.6 eV)
Range (ppm) 0 to 1000
Resolution (ppm) 1
Gas 2 LEL
Range (ppm) 0 to 100% LEL
Resolution (ppm) 1% LEL
Gas 3 Carbon Monoxide (CO)
Range (ppm) 0 to 500
Resolution (ppm) 1
Gas 4 Hydrogen Sulfide (H2S)
Range (ppm) 0 to 200
Resolution (ppm) 0.1
Gas 5 Sulfur Dioxide (SO2)
Range (ppm) 0 to 20
Resolution (ppm) 0.1
Gas 6 Oxygen (O2)
Range (ppm) 0 to 30% Vol.
Resolution (ppm) 0.1% Vol.
Size 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)
Weight 31 oz. (880 g)
Sensors Over 25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor
Battery
  • Rechargeable Li-ion battery
  • 12-hr. (pumped) runtime
  • < 6-hr. recharge time
Alarms
  • Audible (95 dB @ 30 cm)
  • Vibration
  • Visible (flashing bright red LEDs)
  • On-screen indication of alarm conditions
Keypad 3 operation and programming keys (Mode, Y/+, and N/-)
Display Monochrome graphical LCD display (128 x 160) with backlighting. Automatic screen “flip” feature.
Display Readout
  • Real-time reading of gas concentrations; PID measurement gas and correction factor
  • Battery status
  • Datalogging on/off
  • STEL, TWA, peak, and minimum values
Data Logging
  • Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
  • User-configurable datalogging intervals (from 1 to 3,600 seconds)
Communication and Data Download Data download and instrument set-up and upgrades on PC via charging and PC comm. cradle, travel charger, or AutoRAE 2 Automatic Test and Calibration System
Calibration Automatic with AutoRAE 2 Test and Calibration System or manual
EMI/RFI No effect when exposed to 0.43mW/cm2 RF interference from a 5-watt transmitter at 12"
IP Rating IP-65: Protected against dust, protected against low pressure water jets from any direction
Certifications
  • CSA: Class I, Division 1, Groups A, B, C and D, T4
  • ATEX: 0575 II 2G Ex ia d IIC T4 Gb
  • IECEx: Ex ia d IIC T4 Gb
  • CE Compliance(European Conformity)
  • EMC directive: 2004/108/EC. R&TTE directive: 1999/5/EC. ATEX directive: 94/9/EC
  • Performance: LEL CSA C22.2 No. 152; ISA-12.13.01
Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
Languages Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, and Swedish
Warranty
  • Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors
  • One year on all other sensors, pump, battery, and other consumable parts
