MultiRAE Pumped / 10.6 eV PID / LEL / CO + H2S / SO2 / O2 (PGM-6228)
  • LEL
MultiRAE Pumped / 10.6 eV PID / LEL / CO + H2S / SO2 / O2 (PGM-6228)

Product Code - MBA3-A1C1R3E-020

exc VAT £2,043.00 inc VAT £2,451.60

MultiRAE Pumped / 10.6 eV PID / LEL / CO + H2S / SO2 / O2 / Li-ion / Non-Wireless (PGM-6228)

Description / Features / Spec

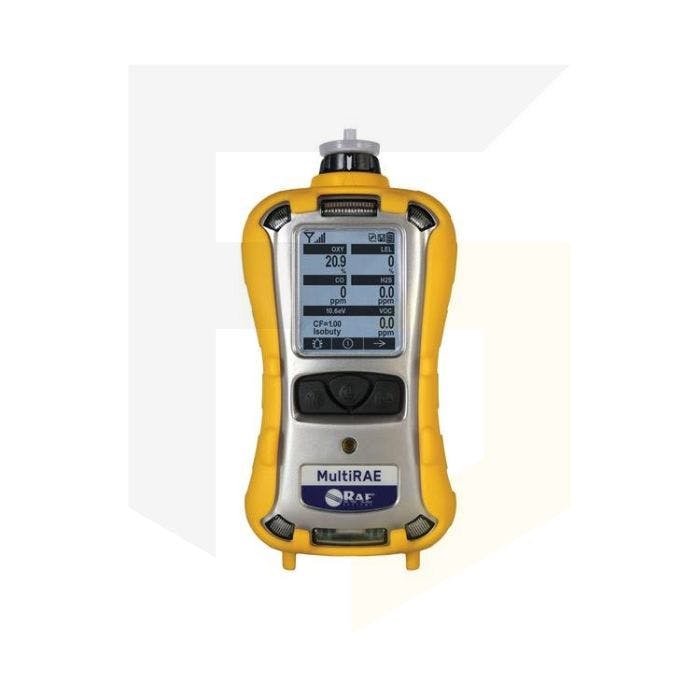

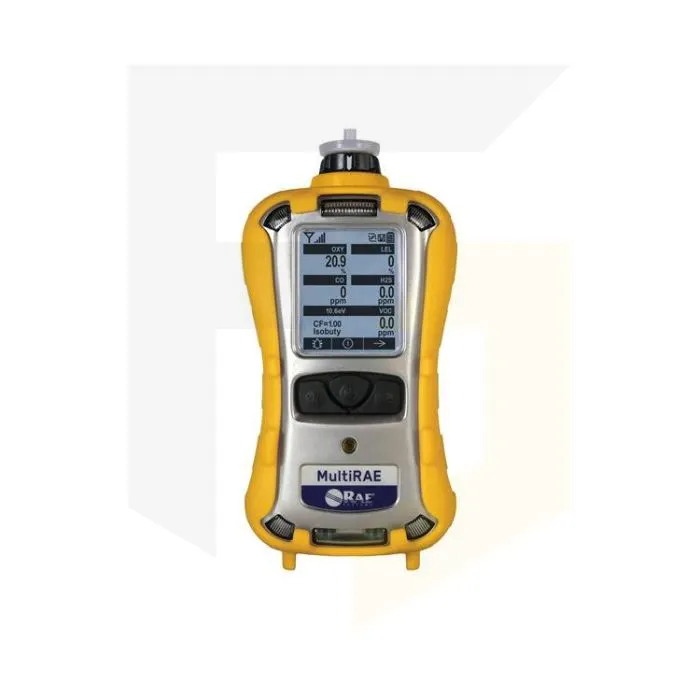

MultiRAE Pumped (PGM-6228) 10.6 eV PID / LEL / CO+H2S / SO2 / O2 / Li-ion / Non-Wireless Gas Detector

The MultiRAE from RAE Systems is an advanced multi gas detector with the ability to monitor up to six gases.  It’s ideal for industries including industrial hygiene, personal protection and leak detection in industries such as aviation, chemicals, environmental, oil and gas, pharmaceutical, shipping and marine and also hazmat applications

This particular monitor is pumped and has an advanced PID sensor as well as being able to detect combustible gases, carbon monoxide, hydrogen sulphide, sulphur dioxide and oxygen depletion.  The sensors that are used are intelligent, able to store calibration data and can be easily swapped in field.

Key Features

  • Extensive on-board gas library of 190 VOCs and 55 combustible gases
  • Large LCD display with backlighting shows real-time reading of gas concentrations
  • Continuous datalogging capability (6 months for 5 sensors, 24 x 7)
  • 3 button operation
  • Built-in sampling pump. Auto shutoff in low-flow conditions
  • Data can be downloaded to PC with the use of the AutoRAE 2 Automatic Test and Calibration System
  • Multiple language options available


  • 0 to 5000 ppm VOC
  • 0 to 100% LEL
  • 0 to 500 ppm CO
  • 0 to 30% Vol. O2
  • 0 to 200 ppm H2S
  • 0 to 20 ppm SO2
  • 0.1 ppm VOC
  • 1% LEL
  • 1 ppm CO
  • 0.1% Vol. O2
  • 0.1 ppm H2S
  • 0.1 ppm SO2
Dimensions (W x H x D) 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)
Weight 31 oz. (880 g)
Battery Options
  • Rechargeable Li-ion battery (~12 hr runtime,
  • Extended duration Li-ion (~18 hr runtime,
  • Alkaline adapter with 4 x AA batteries (~6 hr runtime)
Calibration Automatic with AutoRAE 2 Test and calibration System or manual
  • Audible (95 dB @ 30 cm)
  • Vibration
  • Visible (flashing bright red LEDs)
  • On-screen indication of alarm conditions
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
IP Rating IP-65 for dust and water ingress protection
Hazardous Location Approvals
  • CSA: Class I, Division 1, Groups A, B, C and D, T4
  • ATEX – 0575 II 2G Ex ia d IIC T4 Gb, 1G Ex ia IIC T4 Ga if IR Sensor is not installed I M2 Ex ia d I Mb
  • IECEx – Ex ia d IIC T4 Gb, Ex ia IIC T4 Ga if IR Sensor is not installed I M2 Ex ia d I Mb
  • IECEx/ANZEx: Ex ia d IIC T4 Gb, Ex ia IIC T4 Ga if IR Sensor is not installed Ex ia I Ma
CE Compliance (European Conformity)
  • EMC directive: 2004/108/EC
  • R&TTE directive: 1999/5/EC
  • ATEX directive: 94/9/EC
  • Two years on non-consumable components
  • One year on sensor, fan, battery and other consumable parts
What's Included?
  • MultiRAE monitor with sensors as specified
  • Protective rubber boot, swivel belt clip and filter installed
  • Travel charger and adapters for PC communications, AC, calibration and alkaline battery
  • Desktop charging/PC communications cable
  • Toolkit with Hex tool and Philips screwdriver
  • Quick Start Guide and CD with documentation
  • ProRAE Studio II Instrument Configuration & Data Management Software
  • Calibration and test certificate
  • Warranty/registration card
  • 3 x spare external filters
  • PID sensor cap removal tool
  • PID zeroing filter (P/N: 008-3024-000)
  • IP-67/decontamination valve accessory
  • 6" flexi probe with inlet adapter
  • Comes in a hard transport case with custom foam that can also accommodate accessories and 2 calibration gas cylinders with 2 regulators (sold separately)
