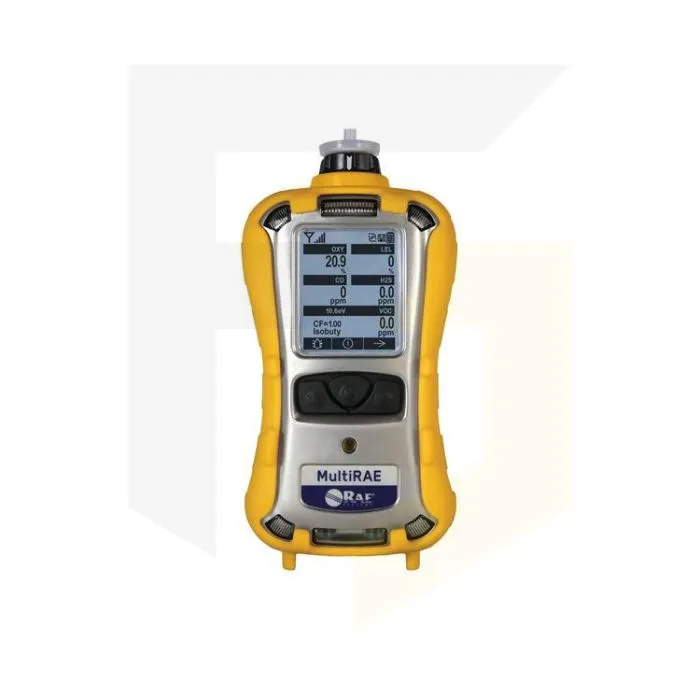

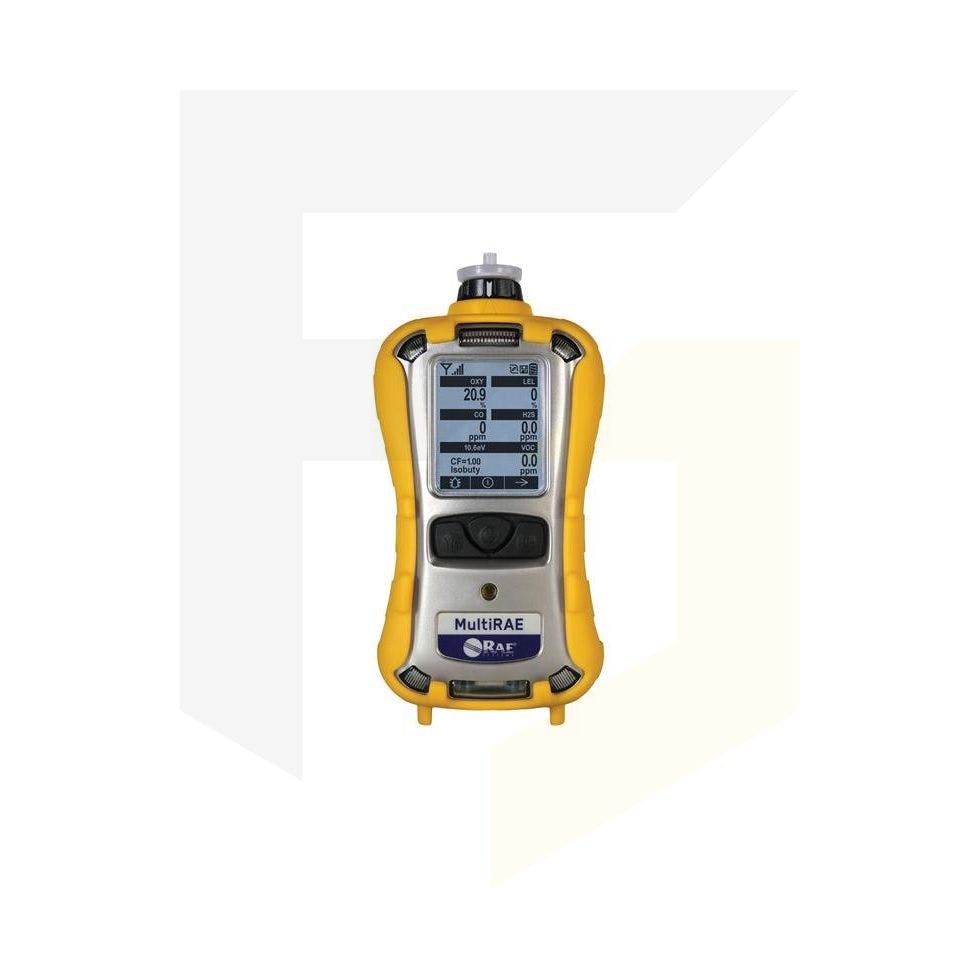

MultiRAE Pumped / 10.6 eV PID/LEL/H2S/CO/O2 Gas Detector (PGM-6228)

PRODUCT CODE:
MBA3-A1C112E-020
MultiRAE Pumped / 10.6 eV PID / LEL / H2S / CO / O2 / Li-ion / Non-Wireless (PGM-6228)
£3,914.40 inc VAT
£3,262.00
Loading...

Product description

MultiRAE (PGM-6228) Pumped / 10.6 eV PID / LEL / H2S / CO / O2 / Li-ion / Non-Wireless

The MultiRAE is ideal for applications including industrial hygiene, personal protection and leak detection in industries such as aviation, chemicals, environmental, oil and gas, pharmaceutical, shipping and marine and also hazmat applications

It’s an advanced multi gas detector with the ability to monitor up to six gases.  This is a pumped model and features the following sensors: advanced PID sensor, combustible gas sensor, carbon monoxide, hydrogen sulphide, sulphur dioxide and oxygen depletion sensors.  The sensors that are used are intelligent, able to store calibration data and can be easily swapped in field.

Key Features

  • On-board gas library of 190 VOCs and 55 combustible gases extensive
  • LCD display with backlighting shows real-time reading of gas concentrations
  • Datalogging capability (6 months for 5 sensors, 24 x 7)
  • Simple 3 button operation
  • Built-in sampling pump. Auto shutoff in low-flow conditions
  • Data can be downloaded to PC with the use of the AutoRAE 2 Automatic Test and Calibration System
Specification
Range
  • 0 to 5000 ppm VOC
  • 0 to 100% LEL
  • 0 to 500 ppm CO
  • 0 to 30% Vol. O2
  • 0 to 200 ppm H2S
Resolution
  • 0.1 ppm VOC
  • 1% LEL
  • 1 ppm CO
  • 0.1% Vol. O2
  • 0.1 ppm H2S
Dimensions (W x H x D) 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)
Weight 31 oz. (880 g)
Battery Options
  • Rechargeable Li-ion battery (~12 hr runtime, <6hr recharge time)
  • Extended duration Li-ion (~18 hr runtime, <9hr recharge time)
  • Alkaline adapter with 4 x AA batteries (~6 hr runtime)
Calibration Automatic with AutoRAE 2 Test and calibration System or manual
Alarms
  • Audible (95 dB @ 30 cm)
  • Vibration
  • Visible (flashing bright red LEDs)
  • On-screen indication of alarm conditions
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
IP Rating IP-65 for dust and water ingress protection
Hazardous Location Approvals
  • CSA: Class I, Division 1, Groups A, B, C and D, T4
  • ATEX – 0575 II 2G Ex ia d IIC T4 Gb, 1G Ex ia IIC T4 Ga if IR Sensor is not installed I M2 Ex ia d I Mb
  • IECEx – Ex ia d IIC T4 Gb, Ex ia IIC T4 Ga if IR Sensor is not installed I M2 Ex ia d I Mb
  • IECEx/ANZEx: Ex ia d IIC T4 Gb, Ex ia IIC T4 Ga if IR Sensor is not installed Ex ia I Ma
CE Compliance (European Conformity)
  • EMC directive: 2004/108/EC
  • R&TTE directive: 1999/5/EC
  • ATEX directive: 94/9/EC
Warranty
  • Two years on non-consumable components
  • One year on sensor, fan, battery and other consumable parts
What's Included?
  • MultiRAE monitor with sensors as specified
  • Protective rubber boot, swivel belt clip and filter installed
  • Travel charger and adapters for PC communications, AC, calibration and alkaline battery
  • Desktop charging/PC communications cable
  • Toolkit with Hex tool and Philips screwdriver
  • Quick Start Guide and CD with documentation
  • ProRAE Studio II Instrument Configuration & Data Management Software
  • Calibration and test certificate
  • Warranty/registration card
  • 3 x spare external filters
  • PID sensor cap removal tool
  • PID zeroing filter (P/N: 008-3024-000)
  • IP-67/decontamination valve accessory
  • 6" flexi probe with inlet adapter
  • Comes in a hard transport case with custom foam that can also accommodate accessories and 2 calibration gas cylinders with 2 regulators (sold separately)
