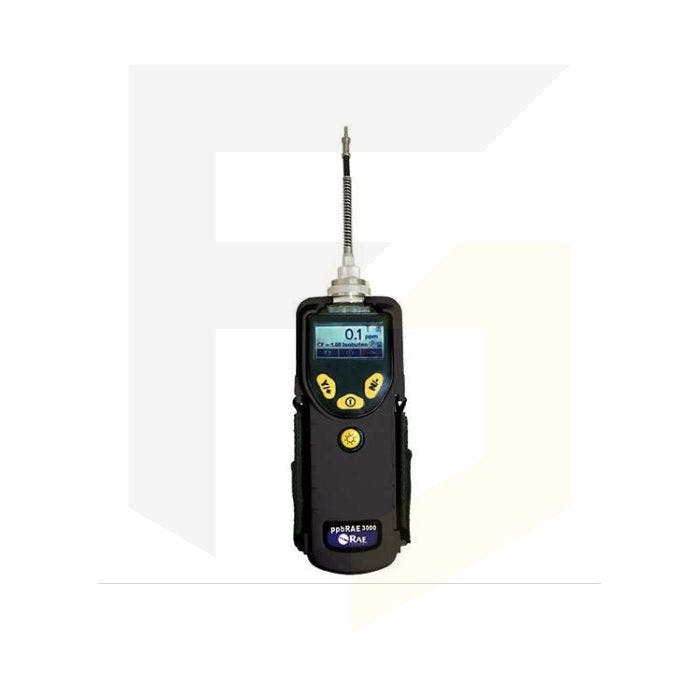

ppbRAE 3000 (Model PGM-7340) Monitor & Accessories Kit
ppbRAE 3000 (Model PGM-7340) Monitor & Accessories Kit

Product Code - 059-C116-300

exc VAT £5,376.00 inc VAT £6,451.20
OR

Additional services

Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.
Description / Features / Spec

Description

ppbRAE 3000 (Model PGM-7340) Monitor & Accessories Kit

This particular model detects volatile organic compounds.

Versatility

The ppbRAE 3000 photo ionization detector is the most advanced handheld volatile organic compound (VOC) monitor on the market.  It has an extended range of 1 ppb to 10,000 ppm, which makes it an ideal instrument for applications from HazMat, Homeland Security and industrial hygiene to Indoor Air Quality and military applications.

Proven Performance

RAE’s VOC monitor has many key features including proven PID technology.  This is comprised of a patented sensor which provides features such as an extended range with 1 ppb to 10,000 ppm with improved linearity, a 3-second response time and also humidity compensation with integral humidity and temperature sensors.

Easy To Use

The ppbRAE 3000 PID detector has a big graphic display to give the user an easy overview of gas type, correction factors and concentration.  The correction factors list shows more than 200 compounds to measure which is more chemicals than any other PID.

The screens are user-friendly and include a dataplot chart view.  The monitor has both an integrated flashlight for a better view in darkened conditions and also integrates RAE Systems Correction.  The instrument has 3 large keys which are even operable through 3 layers of gloves.

For additional support there is a multi-language function with 12 languages encoded.

The alarm of the photoionization detector is a loud, 95 dB audible alarm as well as a bright red flashing visual alarm.

Focused on Worker Protection

To allow safe PID detection the photoionization detector is IP 67 tested and has a waterproof design which allows easy cleaning and decontamination in water.  It has a tough, flexible inlet Flexi-Probe and a strong, protective removable rubber boot.

The VOC monitor has interchangeable, drop-in Lithium-Ion and alkaline battery packs which can be easily replaced on-site due to the fact that tools aren’t needed.  The charging cradle of the monitor also doubles up as external battery charger.

Other features of the PID detector include automatic lamp type recognition, a duty-cycling™ lamp and sensor auto cleaning technology and the ability to view real-time sensor data and alarm status at HQ or the command centre.  The instrument has strong, built-in sample pump which can draw up to 100 feet (30m) horizontally or vertically and is compatible with the AutoRAE™ calibration station.

Key Features

  • A 3-second response time
  • Extended range up to 10,000 ppm with improved linearity
  • Humidity compensation with inbuilt humidity and temperature sensors
  • Designed for service with easy access to lamp and sensor in seconds without tools
  • Big Graphic display for easy overview of gas type, Correction Factor and concentration
  • Field interchangeable battery pack in second’s without tools.
  • Integrated Flash Light for better view in dark conditions
  • User friendly screens including plot view chart view
  • Inbuilt full RAE Systems 350 compounds correction factors list measure more chemicals than any other PID
  • Multilanguage support with 10 languages encoded

Specifications

Gas 1 VOCs
Range
  • 0 to 9999 ppb (resolution - 1 ppb)
  • 10 to 99 ppm (resolution - 0.01 ppm)
  • 100 to 99 ppm (resolution - 0.1 ppm)
  • 1000 to 9999 ppm (resolution - 1 ppm)
Response Time (T90) < 3 sec
Gas 2 VOCs
Range (ppm) 10 to 99
Resolution (ppm) 0.01
Response Time (T90) < 3 sec
Gas 3 VOCs
Range (ppm) 100 to 999.0
Resolution (ppm) 0.1
Response Time (T90) < 3 sec
Gas 3 VOCs
Range (ppm) 1000 to 9999
Resolution (ppm) 1
Response Time (T90) < 3 sec
Size 10" L x 3.0" W x 2.5" H (25.5 cm x 7.6 cm x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 10.6 eV lamp
Battery
  • Alkaline battery adapter
  • External field-replaceable lithium-ion battery pack
Operating Time 16 hours of operation (12 hours with alkaline battery)
Display Graphic  4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
Keypad 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout
  • VOCs as ppm by volume
  • High values
  • STEL and TWA
  • Battery and shutdown voltage
  • Date, time, temperature
Alarms
  • 95dB buzzer (at 12"/30 cm) and flashing red LED to indicate exceeded preset limits
  • High: 3 beeps and flashes per second
  • Low: 2 beeps and flashes per second
  • STEL and TWA: 1 beep and flash per second
  • Alarms latching with manual override or automatic reset
  • Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI
  • Highly resistant to EMI/RFI
  • Compliant with EMC directive (2004/108/EC); R & TTE directive (1999/5/EC)
IP Rating
  • IP-65 (unit running): protected against dust, protected against low-pressure jets of water from all directions
  • IP-67 (unit off and without flexible probe): protected against dust, protected against immersion between 15cm and 1m depth.
Calibration 2-point or 3-point calibration for zero and span. Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump
  • Internal, integrated flow rate at 500 cc/min
  • Sample from 100' (30m) horizontally and vertically
Low Flow Alarm Auto shut-off pump at low-flow condition
Communication Download data and upload instrument setup from PC through charging cradle
Certifications
  • US and Canada: Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
  • Europe: ATEX II 2G EEx ia IIC T4
Operating Temperature -4° to 122° F (-20° to 50° C)
Humidity 0 to 95% relative humidity (non-condensing)
Attachments Durable black rubber boot
Warranty 3 years for 10.6 eV lamp, 1 year for pump, battery, sensor and instrument
What's Included
  • ppbRAE 3000 Monitor, Model PGM-7340
  • Wireless communication module built in, as specified
  • Datalogging with ProRAE Studio Package for Windows™ 98, 2000, NT, ME & XP
  • Charging/download adapter
  • RAE UV lamp, as specified
  • VOC Zeroing Tubes (1 box)
  • Tube adapter
  • Tedlar® bag for calibration
  • Flex-I-Probe™
  • External filter
  • Rubber boot with straps
  • Alkaline battery adapter
  • Lamp-cleaning kit
  • Tool Kit
  • Operation CD-ROM
  • Operation & Maintenance manual
  • Soft leather case
  • Hard transport case with pre-cut foam padding
  • Charging/download cradle
  • 5 Porous metal filters and O-rings
  • Organic vapor zeroing kit
  • Gas outlet port adapter and tubing
