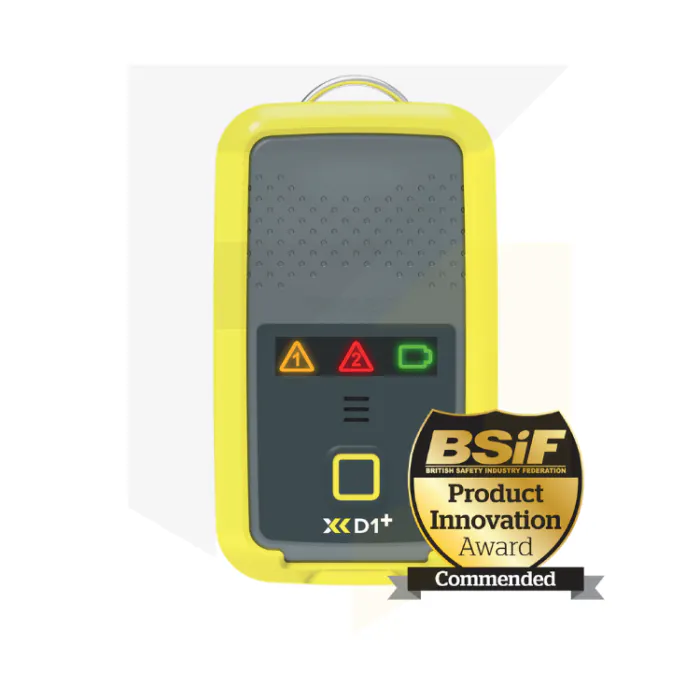

Trolex XD1+ Personal Dust Monitor2>
The Trolex XD1+ Personal Dust Monitor is a state-of-the-art device designed to offer real-time personal dust monitoring to protect workers from harmful respirable dust.
It's notable for its simplicity, effectiveness, and compact size, making it genuinely wearable and non-intrusive for daily use. This innovative monitor allows for monitoring PM1, PM2.5, PM4.25, and PM10 dust sizes, providing instant alarms for customisable Short-Term Exposure Limits (STEL) and Time-Weighted Averages (TWA).
This compact, user-friendly monitor is designed for seamless integration into daily operations, featuring a single-button operation for ultimate simplicity. With its lightweight design, the XD1+ ensures comfort and mobility, making it an ideal solution for various industrial settings.
No display on the unit? No worries! Simply connect your XD1+ monitor to the BreatheMOBILE app using NFC technology. View your live and historical data, change your threshold settings and see any alarms.
There are no filters, pumps, tubes, or replaceable parts - switch your monitor on, secure it on your person and off you go. It is designed to be used daily, in any situation or job role, whatever your level of expertise. It monitors dangerous dust levels and lets you know when to take action.
- Self-contained unit with no spare parts
- Customisable STEL and TWA alarms
- Extremely lightweight, weighing under 200 grams
Particulate Measuring |
0.1 µm to 10 µm |
Units of Measurement |
ug / m³ mg / m³ |
Weight |
0.17 kg |
Dimensions |
Height: 112 mm Width: 64 mm Diameter: 25 mm |
Sensing Technology |
Light-scatter photometer (OPC) |
Measurement Capacity |
PM1, PM2.5, PM4.25, PM10
|
Particle Count |
> 600 particles / second |
Sampling Interval |
1 to 60 seconds |
Typical Accuracy |
± 10% |
Display Averaging Period |
Customisable STEL and TWA alarm setpoints via BreatheLITE and BreatheMOBILE |
Certification |
CE UKCA |
Accessories |
Aligator clip Body mount clip Protective case Data and charging dock Compliance Pack + |
Power Options |
16 hours battery run time |
Compliance Check |
2 minutes every 3 months (depending on dust loading) |
Compliance Software |
BreatheLITE / BreatheMOBILE |
