Trolex XD1 Personal Dust Monitor
- PRODUCT CODE:
- TX8060.00.01
The Trolex XD1 is a self-contained portable dust monitoring device that saves time, money and lives. This unit has been superseded by the Trolex XD1+.
Please note this product is currently discontinued.
Loading...
Product description

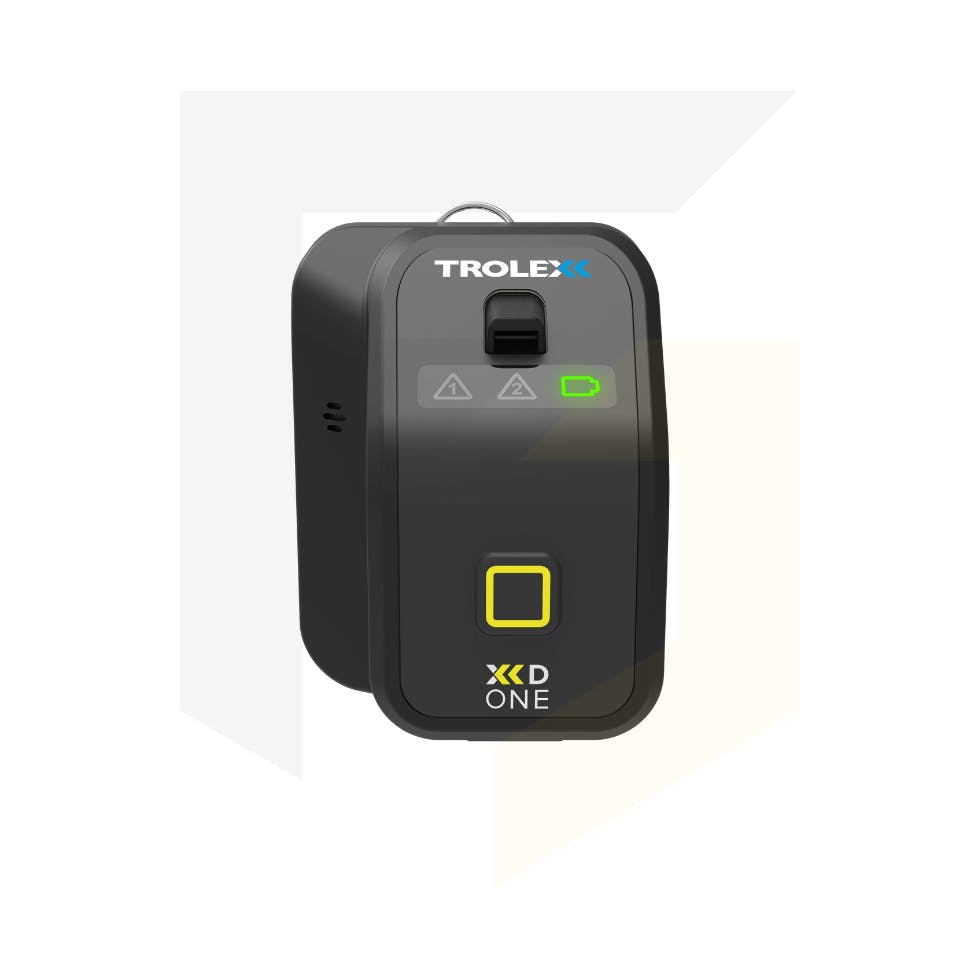

Trolex XD ONE Portable Dust Monitor
The Trolex XD ONE Portable Dust Monitor is a cutting-edge solution designed for real-time, portable dust monitoring to protect workers from harmful respirable dust. This lightweight, self-contained unit is characterized by its ease of use, requiring no filters, pumps, tubes, or replaceable parts
Ready in just 5 seconds, it offers comprehensive dust size scanning, including PM1.0, PM2.5, PM4.25, and PM10, ensuring thorough protection in occupational environments. With instant alarms for regulatory limit breaches and compatibility with BreatheLITE software for live data readout and analytics, the XD ONE sets the standard in occupational health safety.
Users can change their alarm thresholds easily through BreatheLITE, here, you can select your measuring size, logging intervals and density thresholds.
Key Features
- Personal, portable or mountable at 450 g
- No pumps, filters, sampling heads, tubes, impactors, or any other replaceable parts
- Virtually zero maintenance
- Battery operated (16+ hours battery life)
Specification
|
Sensing Technology |
OPC light-scatter photometer |
|
Particulate Measurement |
0.35 to 40 µm (PM1, PM2.5, PM4.25, PM10 and TSP) Custom particle density profiling |
|
Operating Temperature |
-10 to 45 °C |
|
Humidity |
0 to 95% RH, non-condensing |
|
Housing Material |
PC/ABS – stainless steel |
|
Ingress Protection |
Main enclosure: IP54 Particle flow path: IP22 |
|
Weight |
445 g |
|
Data Connections |
1 x mini USB (max. cable length: 2 m) |
|
Connectivity |
BreatheLITE application |
|
User Options |
STEL and TWA alarm setpoints Latching alarms Particulate measurement |
|
User Interface/Alarms |
Visual Icon illumination (STEL, TWA, battery indication) Audible (85 dB) |
|
Self-Test |
Sensor hardware, circuitry and battery test on activation Manual self-test during use |
|
Battery Capacity |
18.72 Wh |
|
Battery Run Time |
18 hours (full health at ambient) |
|
Charging Temperature Limits |
0 to 45 °C |
|
Max Charge Current |
1.2 A |
|
Product Fixing / Body Mounting |
Personal mounting clip, klick-fast stud, pole mount or custom bracket |
|
Certification |
UKCA and CE Compliant |
