TSI DustTrak II Desktop Aerosol Monitor

PRODUCT CODE
8530
£5,292.00 £4,410.00

Applications include industrial/occupational hygiene surveys, indoor air quality investigations, outdoor environmental monitoring, baseline trending and screening, engineering control evaluations, remote monitoring, process monitoring, emissions monitoring and aerosol research studies.

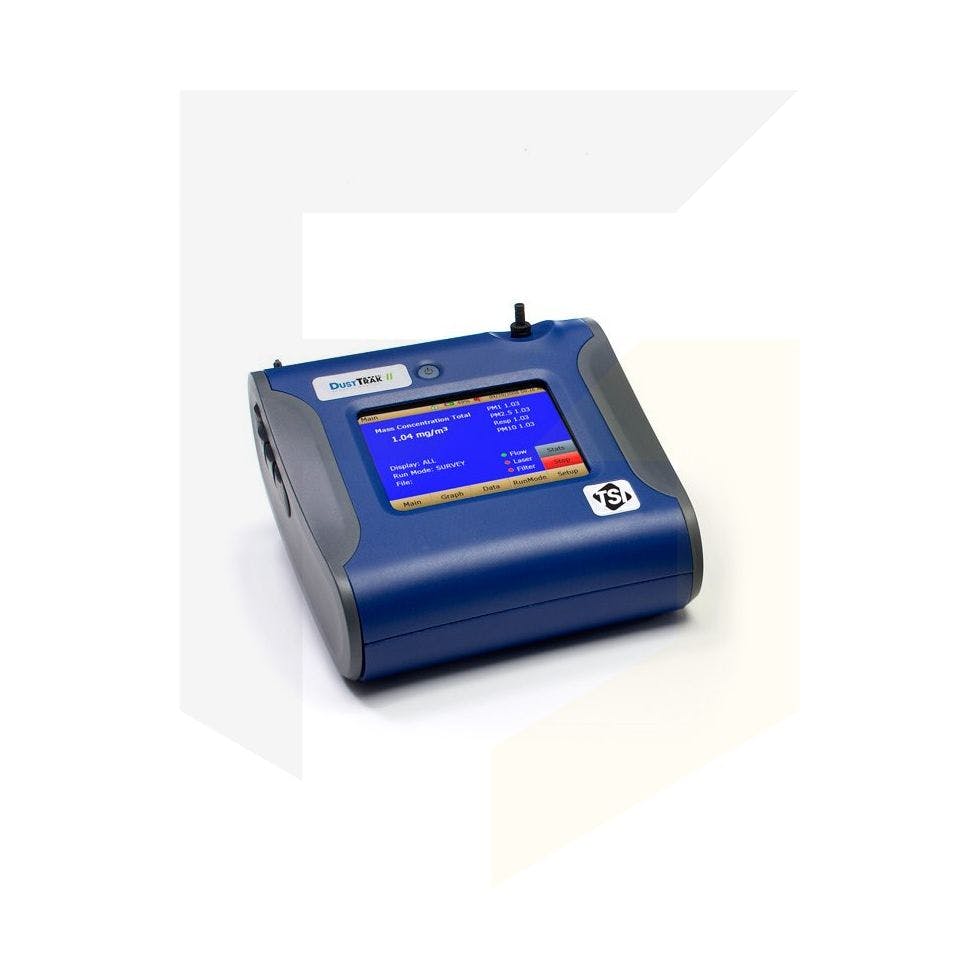

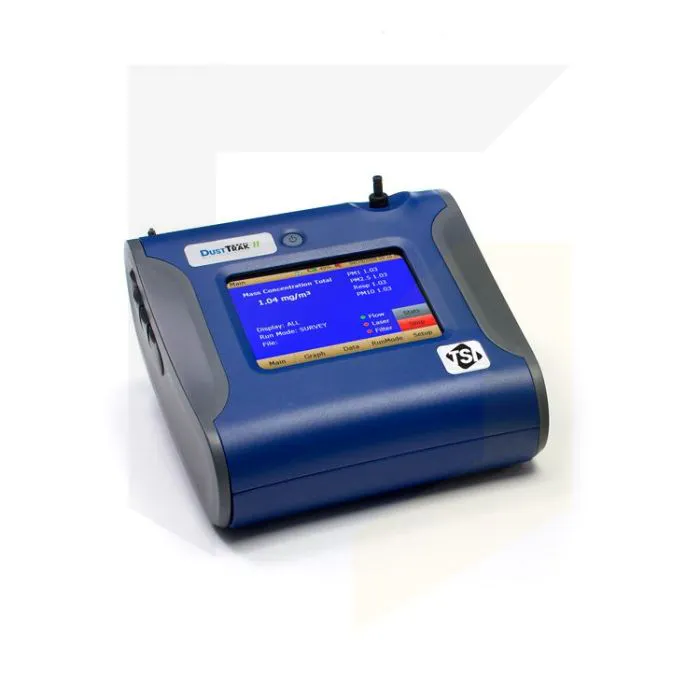

TSI DustTrak II Desktop Aerosol Monitor

The DustTrak II Aerosol Monitor 8530 is a desktop light-scattering laser photometer which provides real-time aerosol mass readings.  The unit is battery-operated and its suitability for different environments varies between clean office settings to harsh industrial workplaces.  Other applications include construction and environmental sites and outdoor applications.

This Aerosol monitor from TSI is capable of measuring contaminants including dust, smoke, fumes and mists.  The DustTrak II monitor features a sheath air system which isolates the aerosol in the optics chamber.  This will keep the optics clean which allows for improved reliability and little maintenance.

For more technical information see the specification sheet and check the table on the right for information on what's included.

Key Features
  • Ability set manual and programmable data logging functions (5 MB of on-board memory, >60,000 data points / 45 days at 1 min logging interval)
  • Measures aerosol concentrations corresponding to PM1, PM 2.5 and respirable PM10 or size fractions
  • Compatible with the Environmental Enclosure
  • Performs in-line gravimetric analysis for custom reference calibration
  • Automatic zeroing function (with optional zero module) will minimise the effect of zero drift
  • Features a STEL alarm set point
  • Compatible with Cloud Data Management System software for remote monitoring
Specifications

Dimensions

4.9 x 4.8 x 12.5” (12.5 x 12.1 x 31.6 cm)

Weight

2.9 lb (1.3 kg)  3.3 lb (1.5 kg) with battery

Aerosol   Concentration Range

0.001 to 400 mg/m3

Resolution

±0.1% of reading or 0.001 mg/m3, whichever is   greater

Zero   Stability

±0.002 mg/m3 per 24 hours at 10 sec time constant

Flow Rate

3.0 L/min set at factory, 1.40 to 3.0 L/min, user   adjustable

Flow Accuracy

±5% of factory set point, internal flow controlled

Temperature   Coefficient

+0.001 mg/m3 per °C

Temperature

Operation Temp: 32 to 120°F (0 to 50°C)
  Storage Temp: -4 to 140°F (-20 to 60°C)

Time Constant

User adjustable, 1 to 60 seconds

Power AC

Switching AC power adapter with universal line cord included,

115–240 VAC

Display

3.5” VGA colour touch screen

Alarm

Audible Buzzer

CE Rating

  •   Immunity EN61236-1:2006
  •   Emissions EN61236-1:2006

Includes

  •   Carrying case
  •   Analog outputs
  •   Rechargeable 7800 mAH Li-Ion battery
  •   Switching power supply with universal line cords
  •   TrakPro data analysis software CD
  •   Zero filter
  •   USB (device and host)   computer cables
  •   Analog/alarm output connector
  •   Inlet cap (x2)
  •   37-mm cassette with mesh filter
  •   10-mm nylon Door-Oliver   Cyclone
  •   Impactor kit (with PM1, PM2.5, PM4, PM10 impactors)
  •   Impactor plates (x2) and impactor oil
  •   Sample extension tube (3-ft/1-m)
  •   Sheath air HEPA filters (x4)
  •   Filter removal tool
  •   Operation service manual
  •   Calibration certificate
  •   2-year warranty
