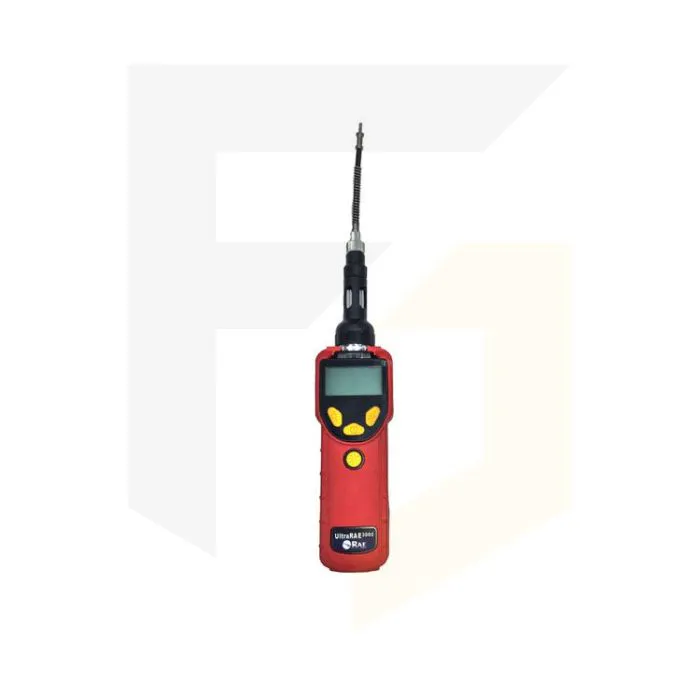

UltraRAE 3000 (Model PGM-7360) Monitor & Accessories Kit

Product Code - 059-D316-300-RAE

UltraRAE 3000 (Model PGM-7360) Monitor & Accessories Kit

The UltraRAE 3000 from RAE Systems is one of the most advanced handheld VOC monitors available on the market and is ideal for applications including confined space entry (pre-screening during refinery and plant maintenance), hazardous material response, marine spill response, refinery down-stream monitoring and also plant overhauls.

It has a proven Photoionization sensor has an extended range in VOC mode and also has a benzene-specific mode (with a range of 50 ppb to 200ppm).  Highly specific readings can be done by combining a 9.6 eV lamp and the RAE-Sep benzene tubes which are also available from Frontline Safety (click here).  This means there is lower risk of false alarms through advanced speciation methods.



exc VAT £4,096.00 inc VAT £4,915.20

Availability: 1 In stock

OR

Extensive built-in features

The UltraRAE 3000 has an integrated RAE Systems Correction Factors list which features more than 200 compounds. It also has real-time wireless with built-in Bluetooth and optional RAELink3 portable modem. You can easily and quickly obtain VOC readings anywhere in your facility with the UltraRAE 3000.

Additional Information

The UltraRAE 3000 VOC detector is easy to use and has a low cost of ownership. The large graphical display will show you VOC’s as ppm by volume, high and low values, STEL and TWA, battery and shutdown voltage and also date, time and temperature. Maintenance is simple as there is easy access to the lamp, sensor and battery without the use of tools. Other features include a datalogging capability (standard 6 months at one-minute intervals) and also a new sampling probe design which provides instant tube breakthrough visibility.

Specification

Specification

Sensor

Photoionization sensor with standard 9.8 eV or 11.7 eV lamp

Range

VOCs – 0 to 99.99 ppm
              100 to 999.9 ppm
             1000 to 9999 ppm

Benzene – 0 to 200 ppm
Butadiene – 0 to 200 ppm

Resolution

VOCs – 0.05 ppm
              0.1 ppm
             1 ppm

Benzene – 0.05 ppm
Butadiene – 0.05 ppm

Response Time (T90)

< 3 s (for VOCs)

< 60 s (for Benzene and Butadiene)

Dimensions
(W x H x D)

10” x 3.0” x 2.5”
(25.5 x 7.6 x 6.4 cm)

Weight

26 oz (738g)

Temperature

-4° to 122°F (-20° to 50°C)

Humidity

0-95%  RH (non-condensing)

Battery

- Alkaline battery adapter

- Rechargeable external field-replaceable lithium-ion battery pack if specified

Operating Hours

16 hours of operation

Alarms

  • 95dB at 12” (30cm) buzzer and flashing red LED to indicate exceeded preset limits
  • High: 3 beeps and flashes per second
  • Low: 2 beeps and flashes per second
  • STEL & TWA: 1 beep and flash per second
  • Alarms latching with manual override or automatic reset
  • Additional diagnostics alarm and display message for low battery and pump stall

IP Rating

IP65 unit running

Calibration

Two-point  or three-point calibration for zero and span

Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates

Sampling Pump

Internal, integrated flow rate at 400 cc/mn
Sample from 100’ (30m) horizontally and vertically

Low Flow Alarm

Auto shut-off pump at low-flow condition

Communication

Download data and upload instrument set-up from PC through charging cradle
Wireless data transmission through built-in Bluetooth

Hazardous Area Approval

US and Canada: UL, cUL, Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D

Europe: ATEX Ex II 2G EEx ia IIC T4
IECEx: CSA 10.0005 Ex ia IIC/IIB GbT4

Warranty

3 years for 10.6 ev lamp, 1 year for 9.8 eV lamp, pump, battery, sensor and instrument



What’s Included?

  • UltraRAE 3000 monitor (model PGM-7360
  • Wireless communication module built-in
  • Datalogging with ProRAE Studio II Package for Windows XP, Windows Vista, or Windows 7
  • Travel charger
  • RAE UV lamp and RAE-Sep Tubes
  • Flex-i-probe and short probe
  • External filter
  • Red rubber boot
  • Alkaline battery adapter
  • Lamp-cleaning kit
  • Tool Kit
  • Lithium-ion (Li-ion) battery with universal AC/DC charger and international plug kit
  • Operation CD-ROM and operations maintenance manual
  • Soft Leather case



Related Blog Post

UltraRAE 3000 – the Best Benzene Monitor?

As benzene occurs naturally in crude petroleum at levels up to 4 g/l, anyone working with petroleum runs the risk of exposure. Therefore, screening for benzene is absolutely vital, and the UltraRAE 3000 is the ideal instrument for entry pre-screening during refinery and plant maintenance, to hazardous material response, marine spill response and refinery down-stream monitoring.
