BW RigRat Enh Pump (CO2 / PID / CO / Cat LEL / H2S / O2)

PRODUCT CODE:
HRR-D102579BCK-000

Honeywell BW RigRat Area Gas Detector - CO2, CO, LEL, H2S, O2 and PID.

£9,375.60 inc VAT
£7,813.00
Loading...

Product description

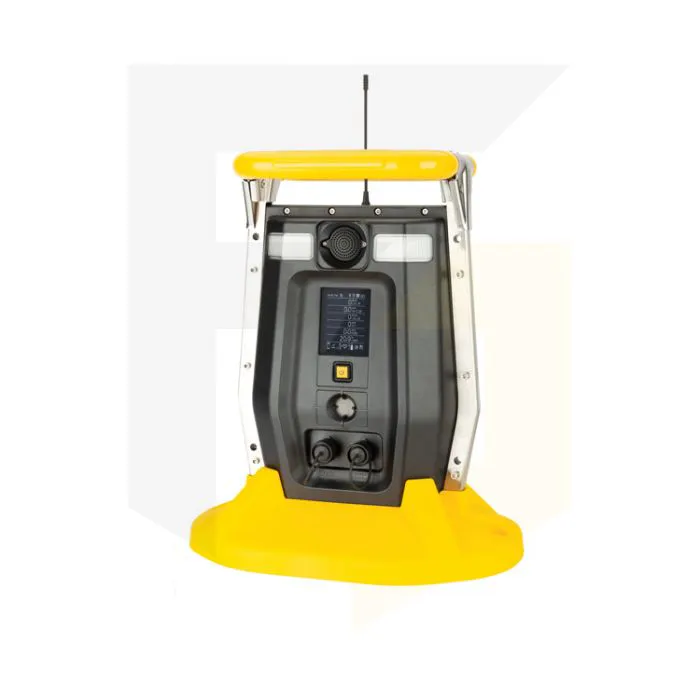

Honeywell BW RigRat Area Gas Monitor

The BW RigRat is a modular area monitor, designed to detect gas and house up to 6 toxic sensors.  This is available as a diffusion model or a pumped model.

Suitable for various applications including area monitoring, confined space entry, inert gas applications, fence line monitoring, welding tents, compressed air monitoring, leak monitoring and shutdown controls.  Choose from Bluetooth only models, mesh models capable of connecting to specific portables gas detectors and MeshGuard systems, and WiFi compatible models.

Sensors included in this configuration is Catalytics LEL sensor, PID, CO, CO2, H2S, and O2. Please see the specifications table for more information on available ranges

It's very easy to use and can be operated using only one button.  It has a high-resolution display.  When gas is detected the BW RigRat will activate two alarms.  One is an audible alarm at 108db (at 1 meter) and the other is a 360° LED light.

The Mesh (868 MHz, 900 MHz or 2.4GHz) version of the BW RigRat can operate with other RigRats in a closed-loop application.  One Honeywell BW RigRat can connect up to 8 other RigRats and display the wireless signal in the wireless assistant display.  If one alarm goes off then all monitors will go into alarm, however, the unit that has detected the danger will show a red light and the others will show an amber light.  There's no need to reform a network if one of the devices is removed, the units will reconfigure themselves.  In a single network, you can have up to 16 units, so long as a different multiple Honeywell BW RigRat binds the systems together.

All Honeywell BW RigRats are equipped with a Bluetooth function (BLE) which can connect with the mobile app to allow setup and configuration.  Everything can be set up easily and doesn’t require a great deal of training.  Calibration and data logging can be managed through this.

Find the LCD Protection cover for the BW RigRat here

Key Features

  • Run-time can be estimated depending on sensors and model type – contact FLS to find out more
  • Rugged device and can withstand harsh conditions and temperatures
  • IP 65/67 tested
  • Built-in calibration certificate can be accessed
  • Two different LEL sensors available (NDIR and NDIR-Low Power)
  • Able to connect with other Honeywell, BW and RAE devices such as TouchPoint, Meshguard and MultiRAE monitors
  • Approval for explosive atmospheres (ATEX)
  • Suitable for lone workers as its transportable
Specification

 Monitor-Only Configuration Includes:
  • BW™ RigRat monitor with sensors, battery and wireless options as specified, and filter(s) installed
  • Power Adapter (W03-3044-000)
  • LCD cover (W03-2129-000)
  • Diffusion calibration cap assembly (W03-3013-000)
  • Pump calibration tube assembly (W03-3020-000)
  • External Filter (Pumped version only) (W03-3006-000)
  • Antenna 868-928MHz, RP-N (550-7056-000)
  • Antenna 2.4GHz, RP-N (550-7057-000)
  • Quick Start Guide (W03-4002-000)
  • Calibration and test certificate
  • Warranty / registration card

 Model Number

 BWRR100P/BWRR100D

Sensor Specification (For other available sensors please refer to the Datasheet in the downloads section)
  • LEL (Range - 0-100%LEL, Resolution - 1%LEL)
  • CO (Range - 0-500ppm, Resolution - 1ppm)
  • H2S (Range - 0-100ppm, Resolution - 0.1ppm)
  • O2 (Range - 0-30% Vol, Resolution - 0.1% Vol)

Temperature Ranges
  • LEL (-40 to +140° F / -40 to +60° C)
  • CO (-40 to +140° F / -40 to +60° C)
  • H2S (-40 to +140° F / -40 to +60° C)
  • O2 (-40 to +140° F / -40 to +60° C)

Size

 15.8 x 11.4 x 18.5 in. / 40.0 x 29.0 x 47.0 cm

Weight

 17.6 lb / 8 kg

Battery & Charge Time
  • Rechargeable Li-ion battery (3.7V / 26.4 Ah)
  • Less than 18 hours when instrument is powered off

 Run Time
  • Model/Configuration dependent - Please contact FLS on 0141 771 7749 for more information on runtime
  • Lower-power models are approx. 8 weeks

 Display

 3.5” 240 x 320 TFT color LCD with white LED backlight

 Datalogging

Complete gas sensors and instrument information for at least 4 months at one minute intervals

 Wireless
  • ISM license free band:
  • Bluetooth Low Energy Module (BT 4.2 / 5.0), 2.4 GHz, in default
  • Mesh Module: IEEE 802.15.4 868 MHz / 915MHz /2.4 GHz (optional)
  • Wi-Fi Module: 802.11 b/g/n 2.4 GHz (optional)

 Radio Module and Range
  • Bluetooth Low Energy: RMBLEC, up to 16.4 ft. / 5 m
  • Mesh: RM900A or RM2400, up to 984 ft. / 300 m
  • Wi-Fi: RMWIFIC, up to 164 ft. / 50 m

 Outdoor Location
  • GPS receiver module: GPS L1 frequency (1575.42 MHz) (optional)
  • Only with IEEE 802.15.4 868 MHz / 915MHz modem and WIFI

 Temperature/Humidity

  • -4 to +140°F (-20 to +60°C) for pumped models

  • -40 to +140°F (-40 to +60°C) for diffusion models

  • 5 - 95% RH (non‑condensing)

 Safety Certifications (Pending)
  • cETLus Class I Division 1; Group A, B, C, D; T4
  • IEC EX/ATEX
  • I M1 Ex ia I Ma
  • II 1G Ex ia da IIC T4 Ga

    For LELIR/CO2 sensor installed:
  • I M1 Ex ia I Ma
  • II 2G Ex ia da db IIC T4 Gb
  • 1G Ex ia da IIC T4 Ga

 Wireless Approvals (Pending)
  • FCC Part 15, IC, RE-D

 Wireless Approvals (Pending)
  • FCC Part 15, IC, RE-D

 RoHS (pending)

RoHS Complaint, Directive (EU) 2015/863

 Noise Sensor
  • 60-125 dBA range; (respond: 100 Hz to 8 kHz), 1 dB resolution
  • A-weighted 15 second equivalent level; updated every 5 seconds

 External Ports



Safe Area Charge Port (AC CHG Safe Area)

Battery charger input 6 VDC 3 A typical; connect to AC/DC adaptor

 Field Charge (IS CHG Hazardous)

Intrinsically safe line power supply input to extend instrument runtime (low-power model only)

RAEmet Port (Serial)

Port to RAEMet wind sensor (optional)

Analog/Switch Input Port (4-20 mA In)

4-20 mA signal input, X1 channel/switch on/off signal input, X1 channel (optional)

 On/Off Switch Output (Switch)

Max 20 V / 120 mA, SPDT Normal Open, X3 channels for external ports (optional). Refer to User Guide for complete details.
