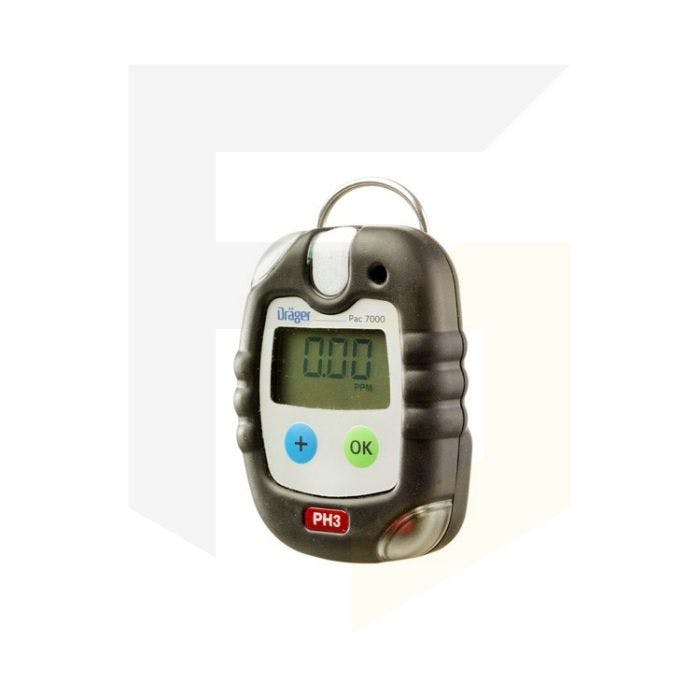

Drager - Pac 7000 Phosphine (PH3) Personal Gas Detector
Please note: this product is now obsolete. See the Drager Pac 8000 as an alternative product.
The Drager Pac 7000 phosphine gas detector is a small, portable monitor which is can be used to work safely in industrial settings.
The instrument has the ability to detect harmful concentrations of PH3 gas and is designed for long-term operation.
The Pac 7000 is reliable and provides fast and accurate readings for personal monitoring applications.
Automated bump tests can be done using the Draeger Bump Test Station . These tests can be configured to match specific safety regulations. If they’re not carried out the gas monitor will automatically shut down after a period of time.
- Impact-resistant, protective rubber housing
- Optimised protection against electromagnetics
- Attach monitor to clothing using adjustable crocodile clip
- Battery and sensor can be easily replaced on-site without additional equipment
- Replaceable water and dust filter
- Immediate display of gas hazards on a clear, LCD screen
- Adjustable data logger records all concentrations and events with respective dates and times (120 hours @ 1 data set per minute)
- Data can be downloaded via Drager Pac Vision, Drager CC-Vision software or Drager GasVision software
- Integrated menu for calibration options
- Password protection option for fresh air or span calibration
- Gas Inlets at the top and front of device
- Automated bump test process with Drager Bump Test Station
Range (ppm) | 0 to 20 ppm |
Resolution (ppm) | 0.01 ppm |
Response Time | 10 secs |
Dimensions (W x H x D) | 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in. |
Weight | 120 g; 3.8 oz. |
Ambient Conditions |
|
Battery Life |
5500 hours; unlimited lifetime (Typical at 25° C) |
IP Rating | IP 65 – projection of water |
Alarms |
|
Approvals |
|
What’s Included |
|
