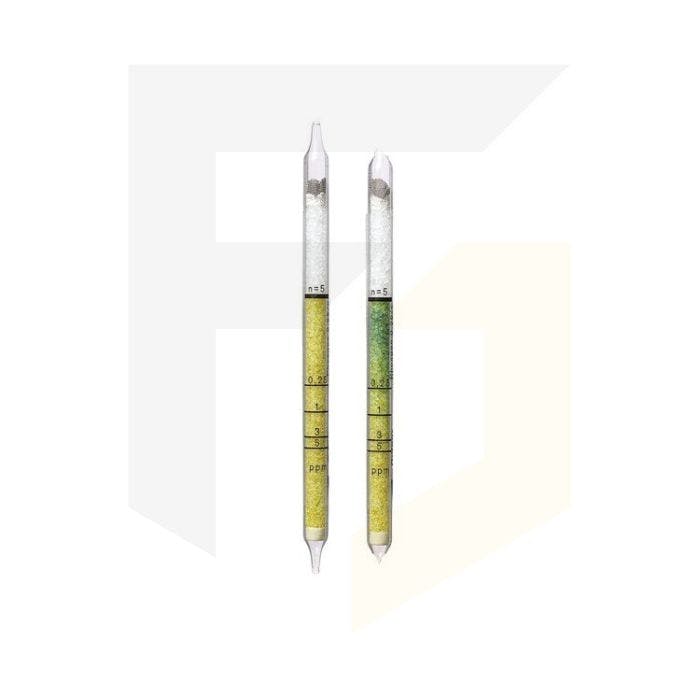

Drager Short Term Detection Tubes - Phosgene 0.25/c (Pack of 10)

PRODUCT CODE:: CH28301

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

£107.38 inc VAT

£89.48

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Drager Short Term Detection Tubes - Phosgene 0.25/c (Pack of 10)

These Drager short-term gas detection tubes are cost-effective and are used to measure Phosgene (0.25/c). They have a measurement range of 0.25 to 25 ppm and have a shelf life of 2 years. One pack contains 10 tubes.

Click here to view more information on the compatible Drager Accuro Gas Detection Pump for short-term detection tubes.

Key Features

Obtain readings from hard to reach places with the tubes, pump and accessories
Carry out measurements on the spot
10 seconds to 15 minutes is the potential time frame for readings to be taken and is dependent on the type of tube used
Pre-entry checks and confined space entry are two applications which can use tubes
Additional applications may include variations in concentration levels and also contamination of breathing areas

Specification

Application Range
Standard Measuring Range:	0.25 to 5 ppm
Number of Strokes n:	5
Time for Measurement:	approx. 1 min
Standard Deviation:	± 15 to 20 %
Color Change:	yellow - blue green

Ambient Operating Conditions
Temperature:	5 to 35 °C
Absolute Humidity:	3 to 15 mg H2O / L

Reaction Principle
COCI2 + ethylaniline + dimethylaminobenzaldehyde - blue green reaction product

Cross Sensitivity
No interference by up to 100 ppm hydrochloric acid. Carbonyl bromide and acetyl chloride are indicated, but with different sensitivities. It is impossible to measure phosgene in the presence of carbonyl bromide or acetyl chloride.
