PRODUCT CODE
DRAGER-XZONE-5500

The X-Zone 5500 from Drager Safety is suitable for various applications.  It requires the use of the X-am 5000, 5100 and 5600 to allow area monitoring to be carried out.

Please note this product is currently discontinued.

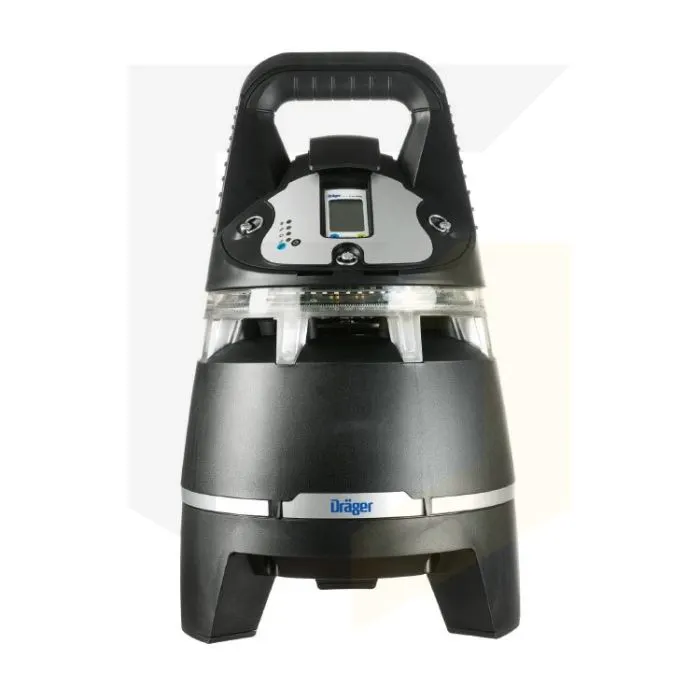

    Drager X-Zone 5500 Area Monitor (Pumped or Diffusion)

    Drager X-Zone 5500 Area Monitor (Pumped or Diffusion)

    Drager offer the X-Zone 5500 for area monitoring applications.  There are two models available – diffusion and a pumped version.  An X-am 5000, 5100 or 5600 portable multi gas detector is required to use the X-Zone 5500.  The diffusion model comes with a diffusion cap and the pumped version comes with both a pump cap and a diffusion cap.

    When used in combination with the above gas detectors, the X-Zone is capable of measuring up to six gases and can be used in various applications.   To show clear warnings of gas the area gas monitor has a 360° LED ring around the monitor.  The LED ring will display as green when the atmosphere is free of gases.  When gas is detected the colour will change to red and will clearly show that gas is present.   An alarm sound will also ring at the presence of gas.

    One of the main advantages of using Drager X-Zones as area monitors is their ability to create an interconnecting wireless fence line.  Up to 25 of these monitors can connect to form a safety network for large-scale areas.  Any X-Zone that detects hazardous toxic or combustible gases will transmit its alarm signal to all other connecting units.  To identify the monitor that has detected the gas the LED ring will flash red, whereas the others will flash red and green

    There are a number of accessories that are available for use with the Drager X-Zone 5500 area monitor.  One of these is a ‘Switch On /Switch Off’ box – the Drager Switchbox.  This increases worker safety during any external work in an Ex-zone 1 area.  If the X-Zone alarms then the Switch Off box will automatically turn off the power supply within seconds.

    Another accessory is the Drager X-Zone Com GSM-Module.  This allows data, such as status requests or alerts, to be accessed wirelessly over a GSM network.  Using a single X-Zone Com module up to 15 Drager X-Zones can be connected to a wireless alarmchain.   Gas concentrations can be shared by test message, email and cloud using the X-Zone Com.

    Key Features
    • Carrying handle for easy transportation
    • Ingress protection IP67
    • Drager X-am monitor easily slots in to the X-Zone
    • Gas entry located at the top of the monitor
    • Maximum gas concentration of the area is shown on display
    • X-Zone ID shows where the contamination is
    • Continuous operation for up to 120 hours
    • Uses inductive charging station
    • Can be configured with the Drager CC-Vision PC software
    • Wide range of accessories available
    Specifications

    Dimensions (WxHxD)

    490 x 300 x 300mm / 20 x 12 x 12”

    Weight

    10 kg (22 lbs.) (24 Ah battery)

    Ambient Conditions

    • Temperature max. +50 °C; max. 104 °F
    • Pressure 700 to 1,300 hPa
    • Humidity 10 to 95 % r.h

    Triple Alarm System

    • Visual 360° LED (illuminated ring)
    • Audible 360°; > 108 dB in a distance of 1 m (30 ft.), 120 dB in a distance of 30 cm (1 ft.)
    • Configurable alarm patterns, frequencies and volumes

    Operating Time

    • Approx. 120 h (24 Ah battery)
    • Depending on sensor equipment / configuration of the life signal

    Charging Time

    • Approx. 14 hours
    • Flexible power supply: External 100 – 240 V charger (worldwide) or inductive wireless charger

    Pump Operation

    Maximum hose length – 45m (150 ft)

    Alarm Output

    Potential-free alarm contact for intrinsically safe circuits (6-pole); < 20 V to 0.25 A (0.15 A constant current); Resisting load

    Radio Transmission

    • Worldwide license-free ISM frequencies
    • Digital radio, robust and interference-free transmission up to 100 m (656 ft.)

    RF Approvals

    868 MHz (EU, Norway, Switzerland)

    Approvals

    ATEX

    • I M1 Ex ia I Ma
    • I1GExiaIICT3Ga
    • II 2G Ex ia d IIC T4 Gb


    IECEx

    • ExiaIICT3Ga
    • Ex ia d IIC T4 Gb
    • Ex ia I Ma


    CSA/US

    • Class I, zone 0, A/Ex ia IIC T3 /Ga
    • Class I, zone 1, A/Ex ia d IIC T4 /Gb
