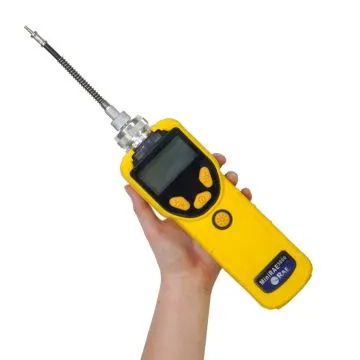

MiniRAE 3000 (Model PGM-7320) Monitor & Accessories Kit
MiniRAE 3000 (Model PGM-7320) Monitor & Accessories Kit

Product Code - 059-B116-300

exc VAT £3,163.00 inc VAT £3,795.60
OR

Additional services

Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.
Description / Features / Spec

Description

MiniRAE 3000 (Model PGM-7320) Monitor & Accessories Kit

Used to detect volatile organic compounds.

Advanced technology

The MiniRAE 3000 is the most advanced handheld volatile organic compound VOC monitor on the market.  The extended range of 0 to 15,000 ppm makes the photoionization detector an ideal instrument for applications from industrial hygiene to leak detection and HazMat.

A PC can be used as the base station for a MiniRAE 3000 system.

Proven, Key Features

There are many key features of the RAE’s PID detector.

It has proven PID technology which means the patented sensor provides features such as a 3-second response time, an extended range up to 15,000 ppm with improved linearity and humidity compensation with integral humidity and temperature sensors.

The photoionization detector is designed for simple service and easy access to lamp and sensor in seconds without tools.

Good Visibility and Audibility

The big graphic display allows for easy overview of gas type, correction factor and concentration.  To allow a better view in dark conditions there is an integrated flashlight within the PID detector.  The screens are user-friendly and include dataplot chart view.

RAE’s VOC monitor has a loud 95dB audible alarm as well as a bright red flashing visual alarm.  There is also multi-language support with 12 languages encoded.

Rugged and Water Tight

For safe PID detection the rugged housing of the monitor withstands use in harsh environments and also comes with a soft leather case.  The photoionization detector is IP-67 tested and has a waterproof design which allows easy cleaning and decontamination in water.  It also has a strong, protective and removable rubber boot and tough, flexible inlet Flexi-Probe™ and 3 large keys which are even operable with 3 layers of gloves.

The field-interchangeable battery pack can be replaced in seconds without the need for tools.  The charging cradle of the PID monitor doubles up as an external battery charger.

Other Features

Data logging is available to the VOC monitor with up to 6 months of data at one-minute intervals with ProRAE Studio Package for Windows™ 98, 2000, NT, ME and XP.

Other features of the MultiRAE 3000 has the advantage of having automatic lamp type recognition, it is compatible with AutoRAE™ calibration station and there is a 3-year 10.6 eV lamp warranty available.

Key Features

  • A 3-second response time
  • Extended range up to 15,000 ppm with improved linearity
  • Humidity compensation with inbuilt humidity and temperature sensors
  • Design for service Easy access to lamp and sensor in seconds without tools
  • Big Graphic display for easy overview of gas type, Correction Factor and concentration
  • Field interchangeable battery pack in second’s without tools.
  • Integrated Flash Light for better view in dark conditions
  • User friendly screens including plot view chart view
  • Inbuilt full RAE Systems 350 compounds correction factors list measure more chemicals than any other PID
  • Multilanguage support with 10 languages encoded
  • Rugged housing withstands use in harsh environments

Specifications

Gas 1 VOCs
Range (ppm) 0 to 999.9
Resolution (ppm) 0.1
Response Time (T90) < 3 sec
Gas 2 VOCs
Range (ppm) 1000 to 15,000
Resolution (ppm) 1
Response Time (T90) < 3 sec
Size 10" L x 3.0" W x 2.5" H (25.5 cm x 7.6 cm x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 10.6 eV lamp
Battery
  • Alkaline battery adapter
  • External field-replaceable lithium-ion battery pack
Operating Time 16 hours of operation (12 hours with alkaline battery)
Display Graphic  4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
Keypad 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout
  • VOCs as ppm by volume
  • High values
  • STEL and TWA
  • Battery and shutdown voltage
  • Date, time, temperature
Alarms
  • 95dB buzzer (at 12"/30 cm) and flashing red LED to indicate exceeded preset limits
  • High: 3 beeps and flashes per second
  • Low: 2 beeps and flashes per second
  • STEL and TWA: 1 beep and flash per second
  • Alarms latching with manual override or automatic reset
  • Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI
  • Highly resistant to EMI/RFI
  • Compliant with EMC directive (2004/108/EC); R & TTE directive (1999/5/EC)
IP Rating
  • IP-65 (unit running): protected against dust, protected against low-pressure jets of water from all directions
  • IP-67 (unit off and without flexible probe): protected against dust, protected against immersion between 15cm and 1m depth.
Data Logging Standard 6 months at one-minute intervals
Calibration 2-point or 3-point calibration for zero and span. Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump
  • Internal, integrated flow rate at 500 cc/min
  • Sample from 100' (30m) horizontally and vertically
Low Flow Alarm Auto shut-off pump at low-flow condition
Communication Download data and upload instrument setup from PC through charging cradle
Certifications
  • US and Canada: Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
  • Europe: ATEX II 2G EEx ia IIC T4
Operating Temperature -4° to 122° F (-20° to 50° C)
Humidity 0 to 95% relative humidity (non-condensing)
Attachments Durable bright yellow rubber boot
Warranty 3 years for 10.6 eV lamp, 1 year for pump, battery, sensor and instrument
What's Included
  • MiniRAE 3000 Monitor, Model PGM-7320
  • Wireless communication module built in, as specified
  • Datalogging with ProRAE Studio Package for Windows™ 98, 2000, NT, ME & XP
  • Charging/download adapter
  • RAE UV lamp, as specified
  • Flex-I-Probe™
  • External filter
  • Rubber boot
  • Alkaline battery adapter
  • Lamp-cleaning kit
  • Tool kit
  • Operation CD-ROM
  • Operation & Maintenance manual
  • Soft leather case
  • Hard transport case with pre-cut foam padding
  • Charging/download cradle
  • 5 Porous metal filters and O-rings
  • Organic vapor zeroing kit
  • Gas outlet port adapter and tubing
