Drager Alcotest 6820 Screening Kit
Drager Alcotest 6820 Screening Kit

Product Code - 3310905

exc VAT £1,873.02 inc VAT £2,247.62

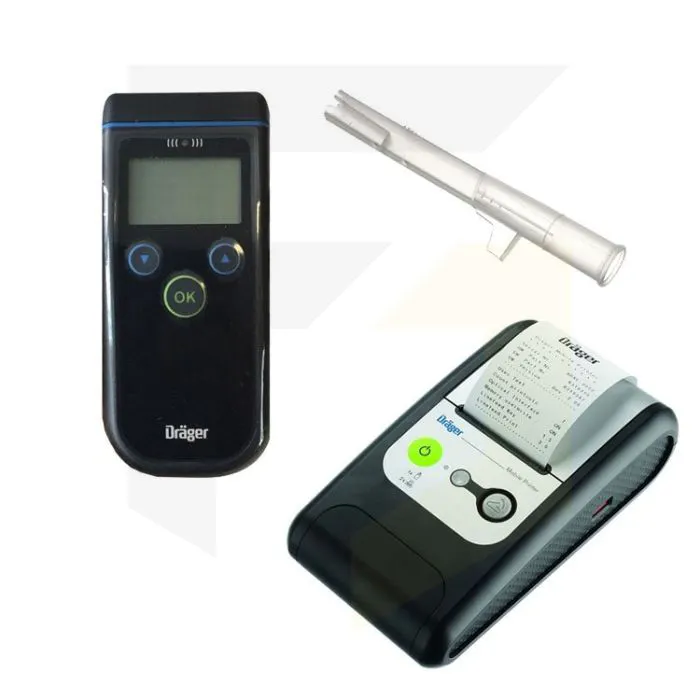

Complete breathalyser kit includes the Drager Alcotest 6820, a mobile printer, 100 mouthpieces and a carry case.

Description / Features / Spec


Drager Alcotest 6820 Screening Kit

The Drager Alcotest 6820 Screening Kit includes the 6820 alcohol breathalyser, 100 mouthpieces and the mobile printer, all housed in a carry case.

The Alcotest breathalyser is a handheld device which can reliably detect levels of breath alcohol in various industries, including transportation, law enforcement and the construction industry.  It's easy to use is able to record up to 5000 test results.  This data can also be transferred to a computer via USB cable if required.
With only three buttons on the interface it's as easy as the subject blowing in to the slide-n-click mouthpiece whilst the unit reads the level of alcohol in the breath.

Both passive and active measurements can be taken, meaning tests can also be taken without the subject blowing in to the mouthpiece.  The coloured LEDs on the front of the breathalyser will give the user an indication of the message, alerts and completion of hte measurement taken.

Key Features

  • Highly accurate - uses a fast Drager electrochemical sensor
  • Fast response
  • Uses hygienic Slide'n'click mouthpieces
  • Resistant to tough weather conditions
  • IP54 protected
  • Adaptable to international guidelines
  • Easy-to-read graphical display


Test Method Electrochemical Dräger sensor for 1/4“ technology; alcohol-specific
Test Range 0 to 2.5 mg/L; display indication when exceeding test range
Sampling Standard: automatic sampling when minimum volume is reached
Passive sampling or manual triggering of sampling possible
Ready For Use Approx. 2s after powering up
Test Result Display Approx. 3s (with 0 mg/l), 10 s (at 0.5 mg/l, room temperature)
Operating Temperature -5 to +50 °C; -4 to +122 °F
Display Graphic LCD display with background illumination;
41 mm x 24 mm (128 x 64 pixels)
LED 3 colours to indicate messages or alerts
Acoustic Alarms Different signal tones indicate various messages and alerts
Memory Space for saving the last 5000 tests with test number, date and time
Power Supply Two AA batteries or NiMH batteries, battery indicator on the display
Around 1500 breath tests can be conducted with one set of batteries
Charging rechargeable NiMH batteries is possible in device
Calibration Wet gas or dry gas calibration
Dimensions (H x W x D),
151 mm x 62 mm x 38 mm, approx. 195 g incl. batteries
Device configuration Device settings configurable directly via device menu (PIN required).
No additional PC software required
Vibration and Impact Meets EN 60068-2-6, EN 60068-2-29
CE Marking Directive 89/336/EEC (electromagnetic compatibility)
Standard Meets EN 15964
