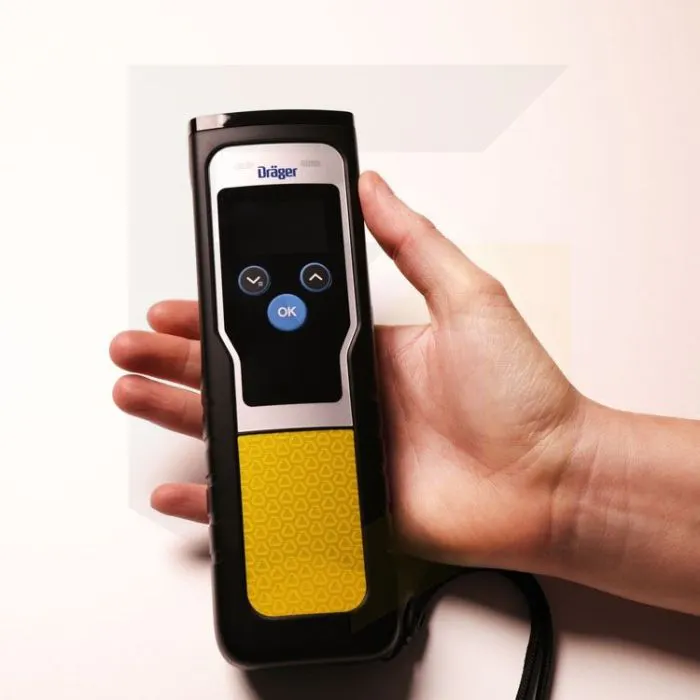

Drager Alcotest 5000 Breath-Alcohol Screening Device
The Drager Alcotest 5000 is a breath-alcohol tester used by professionals in industries such as law enforcement, transportation and haulage and construction. The main benefit of using this particular type of alcohol detector is its ability to perform up to 12 tests per minute. This is ideal for applications where large-scale operations are needed, checks at work sites, stadiums and entry points in to public transport.
The exchangeable funnel allows the breathalyser to be used numerous times without being changed every time as the backflow of expired air is reduced. This is due to the vents around the bottom of the funnel. There's also no need for the person to make contact with the funnel and a test can be taken passively or with the subject blowing in to the meter from 2-3cm away.
The display on the Drager Alcotest 5000 is very easy to see and the intuitive menu makes it easy to use. The lastest test results can be seen, as well as the test number, date and the battery life.
- Uses Electrochemical DragerSensors (alcohol-specific)
- Uses signal tone for supporting display and warning messages
- Hygienic funnel is easy to click on and off
- Easy button operation - two arrow buttons are used to navigate through the menu
- Impact-proof ABS/PC housing
- Internal clock advises the user 30 days before service interval expires
- Service interval is every 24 months
Dimensions |
|
Measuring Range |
|
Start-Up Time |
Ready to use around 4 seconds after switch-on |
Display of Test Results |
|
LED Screen Size |
32 x 22mm (128 x 64 pixel) |
Memory |
Stores the latest 5000 test results with test number, date and time |
Battery |
3 x AA batteries (Charge shown on display) |
Vibration and Impact Resistance |
EN 60068-2-27, EN 60068-2-6; EN 60068-2-64 |
CE Marking |
EMC Directive |
Standards |
Contactless breath-alcohol testing devices are currently not subject to any standards |
Operating Temperature, Humidity and Humidity Pressure |
|
