- Description / Features / Spec

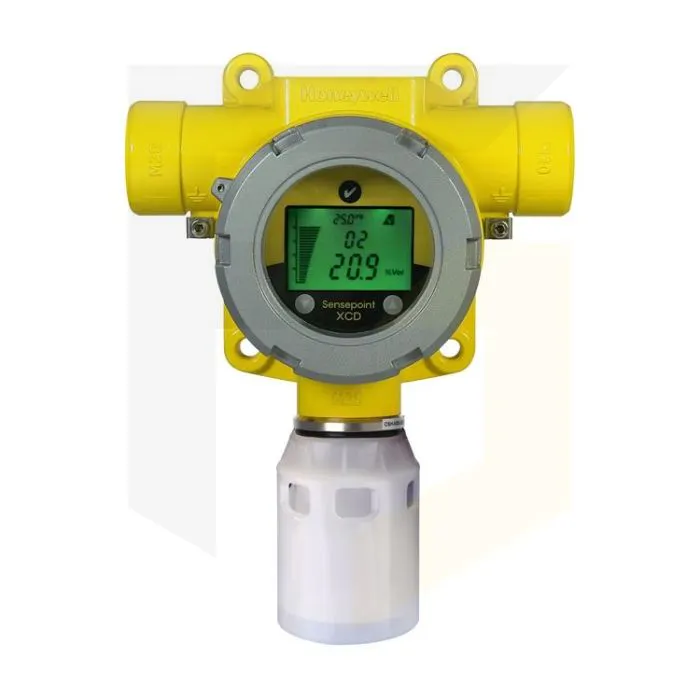

The Sensepoint XCD is an explosion-proof transmitter from Honeywell Analytics. This provides monitoring for flammable, toxic and oxygen gas hazards in potentially explosive atmospheres. This includes both indoor and outdoor applications.
The configurations listed above all have an stainless steel enclosures. Aluminium enclosures are also available. Detectable Gases include: Oxygen, Hydrogen Sulphide, Carbon Monoxide, Hydrogen, Nitrogen Dioxide, Flammable, Methane, Propane, Carbon Dioxide
Applications include Industrial manufacturing facilities, power plants, waste water facilities, utilities, food and beverage production, refineries and chemical plants, onshore oil and gas terminals, production platforms and exploration and drilling.
Modifying the detectors operation can be done using the LCD screen and magnet switches. There’s no need to open up the unit which will potentially prevent non-intrusive operation and will reduce maintenance time and costs.
- User friendly and intuitive tri-colour backlit display with digits, bar graph and icons
- Traffic light system indicates normal operation (green), faults (flashing yellow) and alarms (flashing red)
- Can be placed on an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket
- Rated as IP66
For full specification please refer to the datasheet
Integral wall mounting plate, 2 x M20 cable entry (ATEX/IECEx) or 2 x ¾”NPT conduit entries (UL/cUL),
1 x M20 or 1 x ¾”NPT plug, Allen key for locking screw, weatherproof cap, operating magnet, sensor cartridge with retainer, quick start guide and instruction manual CD. Default settings, ranges and calibrations are 100% tested at the factory. Each unit is supplied with a calibration and test certificate.
Shipping carton dimensions:
L312mm (12.3”) x W223mm (8.8”) x D110mm (4.3”)
Approximate weight: Aluminium 2.5kg (5.5lbs)
- European - ATEX II 2 GD Ex d IIC Gb T6 (Ta -40ºC to +65ºC) T5 (Ta -40ºC to +75ºC) Ex tb IIIC T85°C Db IP66 T100ºC (Ta -40ºC to +75ºC)
- International - IECEx Ex d IIC Gb T6 (Ta -40ºC to +65ºC) T5 (Ta -40ºC to +75ºC) Ex tb IIIC T85°C Db IP66 T100ºC (Ta -40ºC to +75ºC)
- China - GB Ex d IIC T4 GB3836.1&2 -2000, PA, CCCF
- Korea - KTL Ex d IIC T6 (-40°C to +65°C)
- North America - UL/c-UL - Class I, Division 1, Groups B, C and D, Class I, Division 2, Groups B, C & D, Class II, Division 1, Groups E, F & G, Class II, Division 2, Groups F & G. -40ºC to +65ºC
- EMC - EN50270:2006 EN6100-6-4:2007
- Performance - ATEX, EN60079-29-1:2007 (flammable), EN45544 (Toxic), EN50104 (Oxygen), EN50271
- China: PA Pattern Measurement (for transmitter and toxic gas sensors)
- “CCCF” Shenyang for Flammable (fire dept approval)
- CSA C22.2-152
