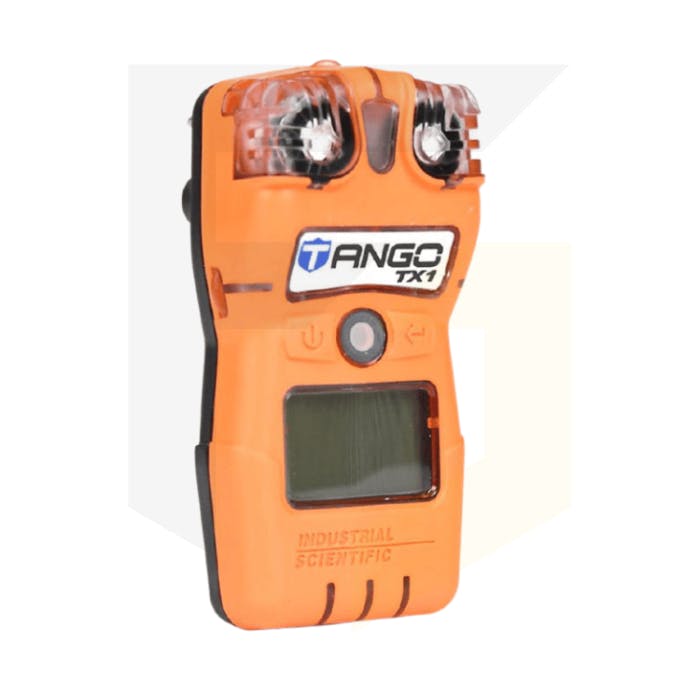

Industrial Scientific Tango TX1 Single-Gas Monitor (Diffusion)
The Tango TX1 is a single gas monitor with a lifetime of 2 years and can monitor one of the following gases, CO, CO/H2 Low, H2S, NO2, SO2.
The Tango TX1 is Industrial Scientific's single gas monitor that is a lightweight and wearable personal gas monitor and is available to purchase in variable configurations. The TX1 uses dual sense technology by using two redundant sensors to detect the single gas and support each other if one fails. Industrial Scientific describe this monitor as one of the "safest single gas detectors" of their range.
The Tango TX1 is ideal for personal gas detection. It is compact, lightweight, can be clipped to clothing, and is suited for various applications, including oil and gas, mining and chemical refining industries. When alarmed, the TX1 notifies users quickly and clearly of any detections by coloured strobe-emitting LED lights and a 100dB audible alarm.
- Dual Sense sensor technology that increases user safety
- Provides gas alerts
- Has the ability to track data logging continuously for three months and 60 alarm events

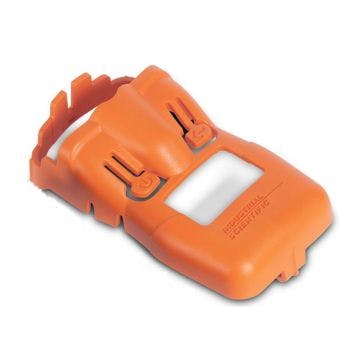

- The Alarm Amp can be purchased to increase the noise alarm to 110dB
- The case has a protective top rubber overmold, top-mounted sensors, a two-button keypad and an LCD screen.
- IP66/7 rating means the monitor is fully dust-tight, protected against direct high-pressure jets and water immersion for up to 30mins at depths of 15cm-1m.
- Compatible with Industrial Scientifics iNet Control that can track alarm history.
- It comes with the Guaranteed for Life Warranty for replaceable batteries and sensors to extend the life of the instrument.
INSTRUMENT WARRANTY |
Guaranteed for Life™. Warranted for as long as the instrument is supported by Industrial Scientific Corporation (excludes sensors, batteries, and filters). CO and H2S sensors are warranted for three years. All other sensors are warranted for two years. |
DIMENSIONS |
99 x 51 x 35 mm (3.9 x 2.0 x 1.4 in) |
WEIGHT |
126.0 g (4.4 oz) |
SENSORS |
CO, CO/H2, H2S, NO2, SO2 – Electrochemical sensor technology |
SENSOR MEASURING RANGES |
Carbon Monoxide (CO): 0 to 1,000 ppm in 1 ppm increments Carbon Monoxide (CO/H2 low): 0 to 1,000 ppm in 1 ppm increments Hydrogen Sulfide (H2S): 0.0 to 500.0 ppm in 0.1 ppm increments Nitrogen Dioxide (NO2): 0.0 to 150.0 ppm in 0.1 ppm increments Sulfur Dioxide (SO2): 0.0 to 150.0 ppm in 0.1 ppm increments |
ALARMS |
Three strobe-emitting visual alarm LEDs (two red; one blue) 100 decibel (dB) audible alarm at a distance of 10 cm (3.94 in); Vibration alarm |
TEMPERATURE RANGE |
-40 °C to 50 °C (-40 °F to 122 °F) ** |
HUMIDITY RANGE |
15% to 95% Non-condensing (continuous) |
BATTERY |
3.6 V Primary lithium-thionyl chloride (Li-SOCl2); 1.5AH, 2/3AA; replaceable; non rechargeable; always on; up to 2-year run time depending on operating conditions |
DATA LOGGING |
3 months at 10-second intervals |
EVENT LOGGING |
60 alarm events |
CERTIFICATIONS |
-40 °C to 50 °C (-40 °F to 122 °F) ATEX: Ex ia I Ma; Ex ia IIC T4 Ga; Equipment Group/Category: I M1/II 1G CSA : Cl I, Gr A-D, T4; Ex ia IIC T4 IECEx: Ex ia I Ma; Ex ia IIC T4 Ga INMETRO: Ex ia I Ma; Ex ia IIC T4 Ga UL (C-US): Cl I, Gr A-D, T4; Cl II, Gr E-G; Cl I, Zone 0, AEx ia IIC T4
-20 °C to 50 °C (-4 °F to 122 °F) China Ex: Ex ia IIC T4 Ga CMA: Ex ia I Ma; H2S, CO EAC: PO Ex ia I X; 0 Ex iX IIC T4 X KC: Ex ia IIC T4 |
