Honeywell BW Solo Serviceable Single Gas Detector

PRODUCT CODE:: HONEYWELL-BW-SOLO

The BW Solo from Honeywell is a single gas detector, reusable and can cover a number of gases. This includes O2, CO, H2S, NH3, CO2, SO2, HCN, CL2, NO, NO2, PH3, ETO, CLO2, O3 and H2.

Please be aware that the BW Solo standard version has been discontinued. Please see the BW Solo Wireless for a direct replacement.

Please note this product is currently discontinued.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

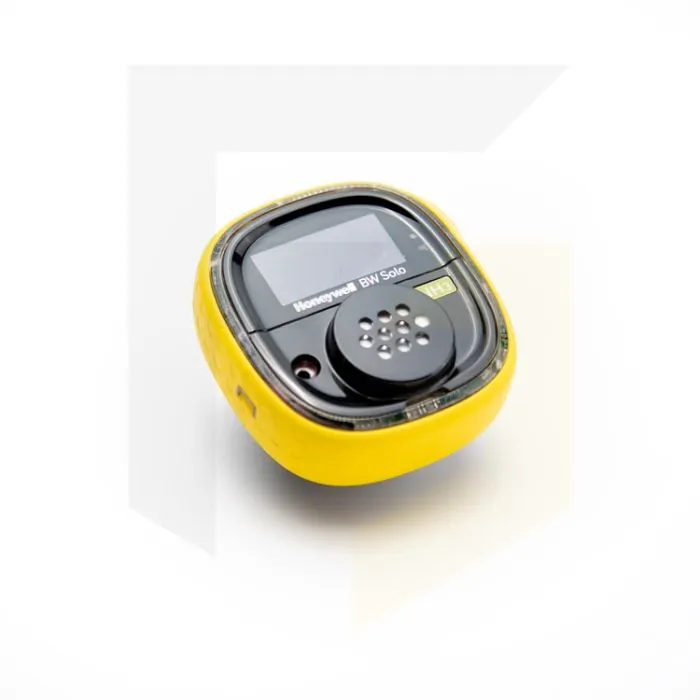

Honeywell BW Solo Serviceable Single Gas Detector

The BW Solo single gas detector is a reusable monitor, designed to reduce costs whilst still ensuring workers are protected and compliant.

Please note: there are currently long lead times on the BW Solo HCN models. Check with our Sales Team for expected delays and up to date information.

This single gas detector is available in numerous configurations including O2, CO, H2S, NH3, CO2, SO2, HCN, CL2, NO, NO2, PH3, ETO, CLO2, O3 and H2. It has a typical battery life of 6-12 months, depending on the type of sensor chosen. The Solo is the first single gas detector to use 1-series sensors for CO, H2S and O2. This makes it highly accurate, fast-responding but at a low cost.

It’s easy to maintain and the sensors, batteries and sensor filters can be replaced without having to take the unit apart. There's an option to activate the Intelliflash or non-compliance flash to show at a glance that the unit is ready to be used in operation. It comes with a triple alarm system showing a visual alarm, vibrating alarm and audible alarm when gas is present.

Key Features

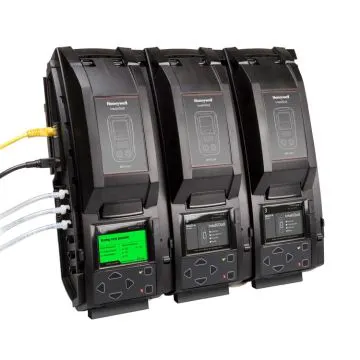

Can be used with the IntelliDox for automatic bump and calibration
Simple user interface which is easy to read
Remote visibility on alarms
Ability to assign detectors to different workers and locations
Data logging with rolling 24-hour peak reading
IP66/68 rated
Carries out self-test and checks sensor integrity, battery, circuitry and alarms

Specification

Size	2.7 x 2.6 x 1.4 in. / 7.0 x 6.7x 3.6 cm (1-Series sensor models) ` 2.7 x 2.6 x 1.6 in. / 7.0 x 6.7x 4.1 cm (4-Series sensor models)
Weight	3.6 to 4.1 oz. / 103 to 116 g, depending on installed sensor
Humidity	0% - 95% RH (non-condensing)
Typical Battery Life	12 months (6 months for 1-Series O2 and 4 months for 1S CO2)
User Options	Reset TWA, STEL and Peak readings Change High, Low, TWA and STEL alarm setpoints Latching alarms Enable IntelliFlash and non-compliance indicators Set calibration and/or bump test reminders Assign worker and location assignments Language select: English, French, Spanish, German, Italian, Russian, Japanese, Chinese, Korean, Portuguese, Dutch (Honeywell BW™ Solo Lite*: English, Russian, Japanese, Chinese and Korean only)
Approvals	n: Class I, Division 1, Groups A, B, C, D T4 Class I, Zone 0, AEx/Ex ia IIC T4 Ga -40°C≤ Tamb ≤ 60°C ATEX: Sira 18ATEX2243 X 2460 g II 1G Ex ia IIC T4 Ga g I M1 Ex ia I Ma -40°C≤ Tamb ≤ 60°C IECEx: IECEx SIR 18.0058 Ex ia IIC T4 Ga / Ex ia I Ma -40°C≤ Tamb ≤ 60°C FCC ID: SU3BWS1 IC: 20969-BWS1 RED: RE-D Directive 2014/53/EU CO2 version currently non-ATEX. Approval pending for ATEX.
Warranty	3 years for 1-Series detectors and sensors (H2S, CO, O2) 2 years for 4-Series detectors and sensors (1 year for NH3, Cl2, O3, ETO, ClO2 sensors)
H2S (Hydrogen Sulphide) – 1 series (SKU: BWS-HL-Y)	Range – 0-200ppm Resolution – 0.1ppm Operating Temp - -40 to +140°F / -40 to +60°C
CO (Carbon Monoxide) – 1 series (SKU: BWS-ML-Y)	Range – 0-2000ppm Resolution – 1ppm Operating Temp - -40 to +140°F / -40 to +60°C
O2 (Oxygen) – 1 series (BWS-XL-Y)	Range – 0-30% v/v Resolution – 0.1ppm Operating Temp - -40 to +140°F / -40 to +60°C
CO2 (Carbon Dioxide) – 1 series** (BWS-BL-Y)	Range – 0 - 50,000ppm Resolution – 100ppm Operating Temp - -4 to +140°F / -20 to +60°C **Certifications Pending
Cl2 (Chlorine) – 4S (SKU: BWS-C-Y)	Range – 0-50ppm Resolution – 0.1ppm Operating Temp - -4 to +104°F / -20 to +30°C
ClO2 (Chlorine Dioxide) – 4S (SKU: BWS-V-Y)	Range – 0-1ppm Resolution – 0.01ppm Operating Temp - -4 to +104°F / -20 to +30°C
CO-H – 4S (SKU: BWS-M2-Y)	Range – 0-2000ppm Resolution – 0.5ppm Operating Temp - -22 to +122°F / -30 to +50°C
ETO – 4S (SKU: BWS-E-Y)	Range – 0-100ppm Resolution – 0.1ppm Operating Temp - -4 to +104°F / -20 to +40°C
H2 (Hydrogen) – 4S (SKU: BWS-R-Y)	Range – 0-1000ppm Resolution – 2ppm Operating Temp - -4 to +122°F / -20 to +50°C
H2S (Hydrogen Sulphide EXT) – 4S (SKU: BWS-H2-Y)	Range – 0-500ppm Resolution – 0.1ppm Operating Temp - -40 to +122°F / -40 to +50°C
HCN (Hydrogen Cyanide) 4S (SKU: BWS-Z-Y)	Range – 0-100ppm Resolution – 0.1ppm Operating Temp - -22 to +122°F / -30 to +50°C
NH3 (Ammonia) 4S - (SKU: BWS-A-Y)	Range – 0-100ppm Resolution – 1ppm Operating Temp - -4 to +104°F / -20 to +50°C
NH3-Ext (Ammonia) 4S (SKU: BWS-A2-Y)	Range – 0-1000ppm Resolution – 1ppm Operating Temp - -4 to +104°F / -20 to +50°C
NO (Nitric Oxide) 4S (SKU: BWS-N-Y)	Range – 0-250ppm Resolution – 0.2ppm Operating Temp - -22 to +122°F / -30 to +50°C
NO2 (Nitrogen Dioxide) 4S (SKU: BWS-D-Y)	Range – 0-100ppm Resolution – 0.1ppm Operating Temp - -4 to +122°F / -20 to +50°C
O3 (Ozone) 4S (SKU: BWS-G-Y)	Range – 0-1ppm Resolution – 0.01ppm Operating Temp - -22 to +122°F / -30 to +50°C
PH3 (Phosphine) 4S (SKU: BWS-P-Y)	Range – 0-5ppm Resolution – 0.1ppm Operating Temp - -4 to +122°F / -20 to +50°C
SO2 (Sulphur Dioxide) 4S (SKU: BWS-S-Y)	Range – 0-100ppm Resolution – 0.1ppm Operating Temp - -22 to +122°F / -30 to +50°C
