In stock

PRODUCT CODE
SCOTT-PROTEGE-ZM

Available models include Oxygen, Carbon Monoxide and Hydrogen Sulphide.

Read our Guide to Disposable Single Gas Detectors

* Required Fields

    £105.59 £87.99

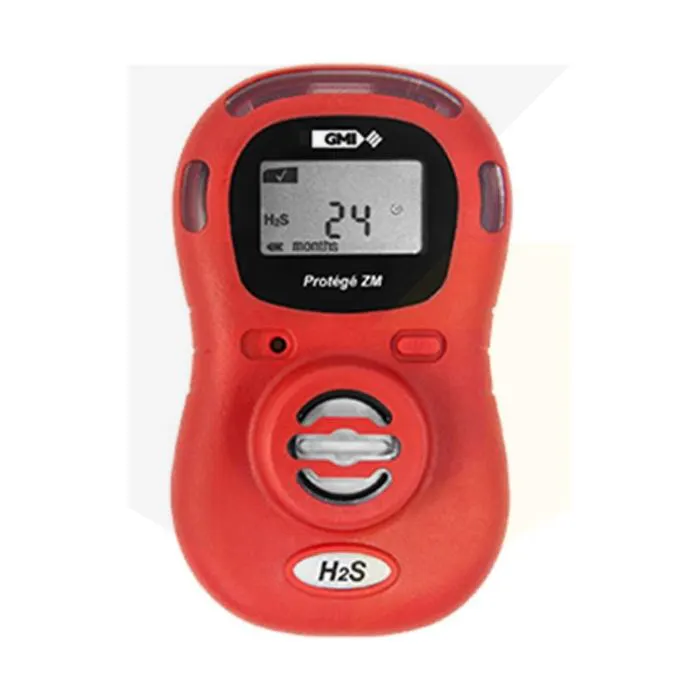

    Teledyne GMI Protege ZM Single Gas Monitor

    Teledyne GMI Protege ZM Single Gas Monitor

    The Teledyne GMI Protege ZM is a disposable single gas detector, available in three different gases.  This includes Hydrogen Sulphide (H2S), Carbon Monoxide (CO) and Oxygen (O2).

    2 Years Service Free

    The Protege ZM is a zero-maintenance unit that is small in size but still reliable and robust.  Simply activate the monitor and it will run 24 hours a day for a period of roughly 2 years.  This cannot be switched off and does not require any calibration or charging.  There is a hibernate feature on the Protege ZM which can be activated to allow you to extend your battery life for up to one additional year.  Please note: the hibernation mode is only available on CO and H2S gas monitors.

    The unit has two high-visibility LED alarms that will flash when gas is present.  The display will show the time remaining in the monitor's life on screen, however, this can be configured via the software to show real-time readings.  To assist with inventory the Protege ZM single gas monitors can be assigned a six-character user ID.  The ZM is also configurable using the IR Connect Module and Software.

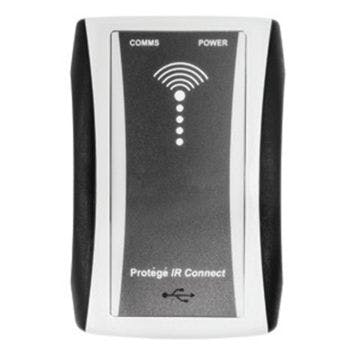

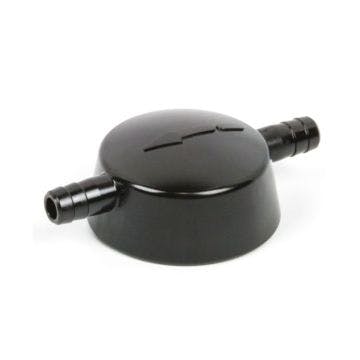

    A range of accessories is available for the Protege ZM Single Gas Monitor:

    Key Features
    • Includes stainless steel alligator clip
    • Small and lightweight (< 3 oz)
    • Rated to IP66/67
    • One-button activation, easy to use
    • Casing is made from an impact-absorbent rubber material
    • Display will also show gas type, functional test validation, bump test due indicator and battery level
    • Data logging function will log the last 25 events and this can be backed up to the PC via infrared
    Specifications

    Size

    3.7" x 2.2" x 1.3" (H x W x D)

    Weight

    2.7 Oz

    Approved Temperature Range

    • -30°C to 50°c  (CO)
    • -40°C to 50°c  (H2S
    • -50°C to 50°c  (O2)

    Humidity

    5 to 95% R.H non-condensing

    Power Source

    Lithium Ion Battery

    Battery Life Indication

    Yes

    Alarms

    • Visual Alarm - red LED
    • Audible Alarm - 95db
    • Vibrating Alarm
    • Pre-programmed default settings; customized factory settings available; configure use settings via software and the IR Connect or test station accessories

    Certifications



    EMC

    CE marked; EMC\EMI\RFI compliant

    Explosive Atmospheres

    • ETL/CETL certification to UL 913 7th, CSA c22.2 No. 157 For use in Class I Division 1 & 2, Groups
      A, B, C and D
    • Hazardous areas; IECEX Ex ia IIC T4 GA; Atex Directive (94/9/EC) Atex II 1 G Ex ia IIC T4 GA

    Approvals

    • CE mark includes both Atex & EMC testing
    • UL: Class 1, Div 1 Groups A, B, C, D T4, CSA: Class 1, Div 1 Groups A, B, C, D T4
    • ATEX: Ex d ia IIC T4, IECEx: (pending), INMETRO: BR-Ex d ia IIC T4, -20°C ≤Tamb ≤+50°C
    • IP 67 Rated: 3rd-party tested for compliance, EMC: EMC Directive (2004/108/EC) CE Mark
