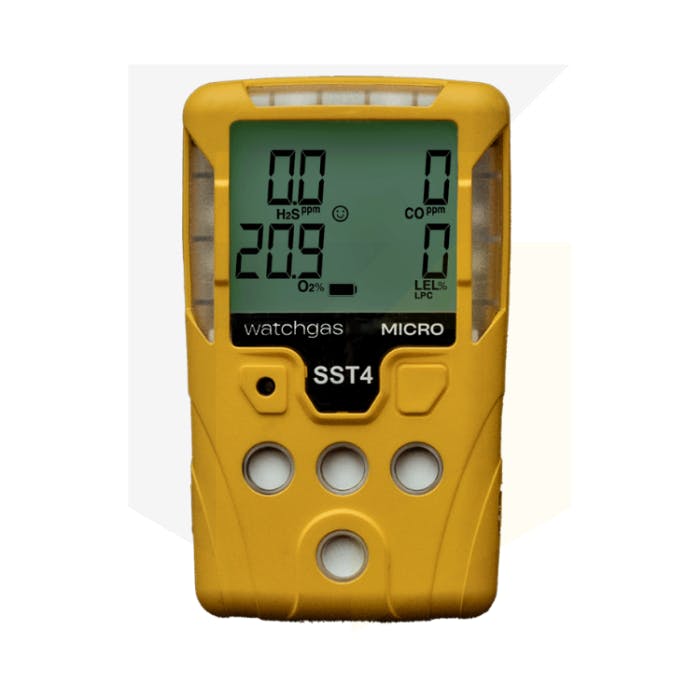

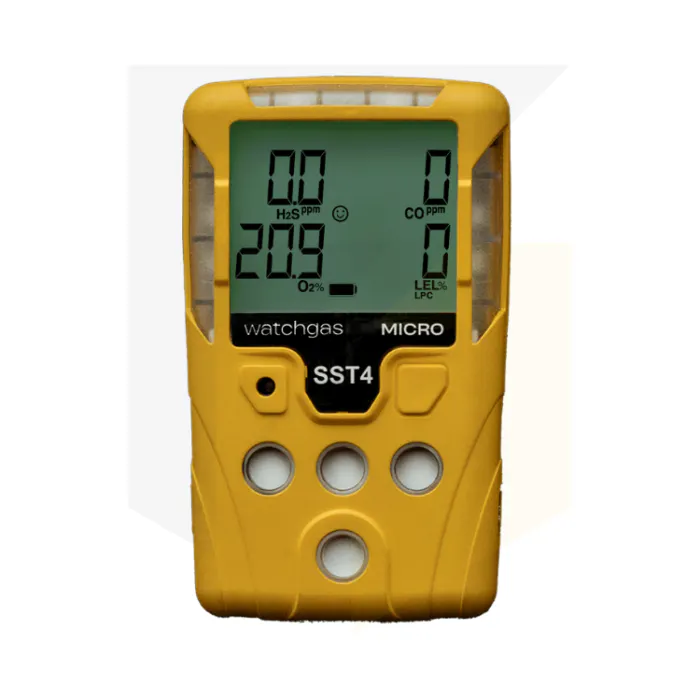

WatchGas SST4 Micro Multi-Gas Detector2>
The WatchGas SST4 Micro Multi-Gas Detector is designed to simultaneously detect up to four different gases: Oxygen (O₂), Hydrogen Sulphide (H₂S), Carbon Monoxide (CO), Sulphur Dioxide (SO₂), Hydrogen Cyanide (HCN), and Combustible Gases (LEL). This detector uses the latest solid-state technology to ensure stable and reliable performance in various environments.
The device is compact and ergonomic, making it lightweight and easy to carry. A user-friendly interface includes a clear LCD display showing gas concentrations, battery level, alarm status, and a simple two-button operation. Enhanced safety is provided through continuous monitoring and real-time alerts to ensure worker safety in hazardous environments.
Durability is a crucial feature of the WatchGas SST4 Micro, built to withstand harsh conditions and ensure reliability in critical situations. Its small and light construction makes it ideal for fieldwork without adding bulk. The detector includes audible, visual, and vibrating alarms to immediately alert users to dangerous gas levels. It is also compatible with the WatchGas SST Docking Station for easy bump calibration and configuration.
The detector features electrochemical and catalytic bead sensor types, offering up to 18 hours of battery life. It operates effectively in temperatures ranging from -20°C to +50°C and humidity levels from 15% to 95% RH (non-condensing).
- Near Field Communication built in as standard
- 95dB @ 30cm
- Wireless charging
- Fastest T90 in its category
Size |
SST4 Micro: 103.9mm x 62.4mm x 26.1mm SST4 Mini: 107.9mm x 62.4mm x 26.1mm *Dimensions are stated without alligator clip. Please add 4mm in depth for dimensions with alligator clip. |
Weight |
SST4 Micro: 184g SST4 Mini: 188g |
Operating Temperature |
-40 to +60°C / -40 to +140°F |
Humidity |
5% - 95% RH (non-condensing) |
Typical Battery Life |
SST4 Micro: LEL Low Power Catalytic – 48hr SST4 Mini: LEL Catalytic Bead Sensor – 13hr SST4 Mini: LEL NDIR – 200hr |
Induction Charger |
2-3 hours |
Event Logging |
100 events |
Data Logging |
6 months |
IP |
65/68 |
Communication |
NFC |
Calibration |
6 months as standard |
Certifications & Approvals |
North America: Class I, Div. 1, Gr. A, B, C, D. Class I, Zone 0, Gr. IIC ATEX/IECEx/UKEX LEL-LPC and LEL-CAT II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma -40°C ≤ Tamb ≤ +60°C EN 50270:2015+AC:2016, EN 301 489-1 V2.2.3 EN 301 489-3 V2.1.1, RoHS EN63000:2018 LEL-IR sensor II 1 G Ex ia op is IIC T4 Ga I M1 Ex ia op is I Ma -40°C ≤ Tamb ≤ +60°C |
Warranty |
2-year warranty as standard
|
